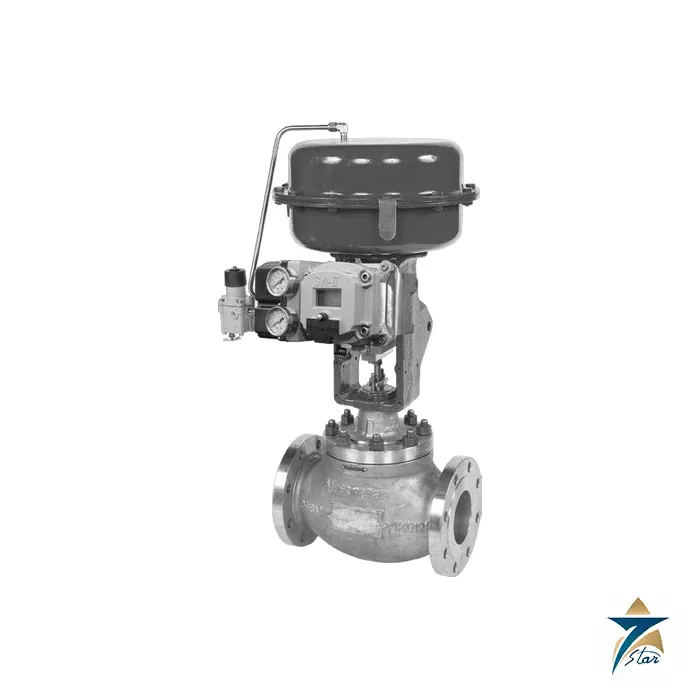

Masoneilan 21009 Series Cage-Guided Globe Control Valve

Overview

The Masoneilan 21009 is a single-ported, cage-guided globe control valve from the Baker Hughes Masoneilan range, documented by an instruction manual dated 05/2021. The manual describes it as a design with built-in versatility for a wide variety of process applications: a standard contoured plug (identified as the 21109 plug series), a quick-change seat ring, heavy cage guiding for plug stability and a series of reduced-area trims that give a wide flow range in every valve size. Class IV shutoff leakage is standard, with optional construction to the IEC 534-4 and ANSI/FCI 70.2 Class V requirements.

Seven Star LLC is the trusted supplier for Masoneilan in the Sultanate of Oman and supplies the Masoneilan 21009 with its actuator, positioner and spare parts. Our Muscat valve team can read the model number, size, rating and serial number from the identification tag that Baker Hughes places on the actuator, so replacement trims, gaskets and packing for a Masoneilan 21009 already installed in a GCC plant can be identified accurately before an RFQ is raised.

How the Masoneilan 21009 Controls Flow

In the Masoneilan 21009 the process fluid enters the body and passes through a cage that surrounds the plug. The plug slides inside the cage, which guides it along its full stroke and supports it against flow forces, and it closes onto a seat ring at the lower end of the cage. Moving the plug off the seat opens the flow path through the cage windows or reduced-area openings, so the flow area is set by the plug position and the characteristic is determined by the trim.

The flow direction matters. The manual states that the valve must be installed so the fluid flows in the direction of the arrow on the body, and that with the contoured plug the flow direction is flow-to-open. Reversing the valve in the line would therefore change how it behaves, so the arrow must be checked at installation whenever a Masoneilan 21009 is replaced or piped in a new location.

Engineering Design of the Masoneilan 21009

The parts list of the Masoneilan 21009 identifies the body, bonnet, plug and stem, plug pin, cage, seat ring, packing, packing follower and flange, optional lantern ring, body gasket and seat ring gasket. Spiral wound gaskets are standard for the body and seat ring, and the manual stresses that new gaskets must be fitted every time the valve is disassembled. The seating surface angle of the plug is 28 degrees and that of the seat ring is 30 degrees, so lapping produces a narrow line contact. The recommended spare parts include the plug stem, packing, body gasket, cage, seat ring, seat ring gasket, plug and plug pin.

Standard packing for the Masoneilan 21009 is braided PTFE with a carbon or aramid core, cut so that it can be replaced without disconnecting the stem from the actuator. An optional flexible graphite arrangement and a lubricator or leak detection connection on the bonnet are available. The manual advises leaving the bonnet uninsulated if the valve is heat-insulated. The pneumatic actuators are designed to accept a 1/4 inch NPT air connection, and the manual refers to the Masoneilan 87/88 multi-spring actuator for removal, maintenance and adjustment.

Key Features

The following points summarise the strengths of the Masoneilan 21009:

• The Masoneilan 21009 is a single-ported cage-guided design with a heavy cage guide that gives maximum support to plug stability.
• A quick-change trim with a removable seat ring makes lapping and replacement straightforward in the field.
• A series of reduced-area trims provides wide flow range capability in all valve sizes.
• Class IV shutoff leakage is standard, with optional Class V construction to IEC 534-4 and ANSI/FCI 70.2.
• Spiral wound body and seat ring gaskets are standard, and new gaskets are required after every disassembly.
• Braided PTFE packing with a carbon or aramid core can be replaced without disconnecting the stem from the actuator.
• An optional lubricator or leak detection connection is available on the bonnet, with flexible graphite packing arrangements.
• The manual lists torque and bolting data for 3 to 8 inch valves in ASME Class 900, 1500 and 2500.

Industrial Applications

A cage-guided globe valve of this kind is a natural choice for steam, boiler feedwater, condensate, gas and hydrocarbon throttling where stable control and dependable shutoff are needed: power stations, refinery process units and gas processing plants in the Sultanate of Oman, including facilities around Sohar, Duqm and Salalah. The quick-change trim is useful where outage windows are short and a seat ring has to be lapped or replaced quickly.

In Oman and the GCC, Seven Star LLC supplies the Masoneilan 21009 next to related valves such as the Masoneilan 41005 Series cage guided control valve and spare parts such as the Masoneilan 21000 Series seal kit. Our engineers will compare the 21009 against the 21000 and 41005 ranges for the pressure class, size and noise duty of your application.

Technical Specifications

The table summarises the data published for the Masoneilan 21009 in the Baker Hughes instruction manual (Rev. A). The manual does not publish flow coefficients, so Cv values and pressure-temperature ratings should be confirmed with Baker Hughes for each valve.

For the broader range see the Masoneilan 21000 Series top-guided globe control valve and Masoneilan Type 37/38 pneumatic spring-diaphragm actuator.

Request a Quote for Masoneilan 21009

To request pricing or technical support for the Masoneilan 21009, send a formal RFQ to the Seven Star LLC instrumentation division with the valve size, ASME class, fluid, pressure, temperature, required shutoff class and the identification tag data of any existing valve. We can check availability and lead time, advise on replacement trims, gaskets and packing and provide the Baker Hughes instruction manual from this page. In Oman and the GCC, Seven Star LLC supplies genuine valves and parts with manufacturer documentation and local engineering support.
