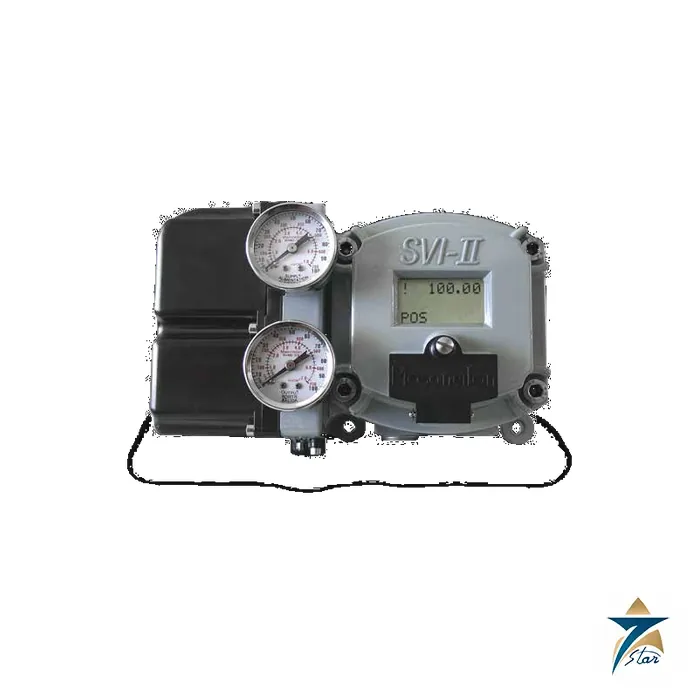

Masoneilan SVI II AP Advanced Performance Digital Valve Positioner

Overview

Masoneilan SVI II AP is an Advanced Performance digital valve positioner built around a non-contact position sensor and a two-wire, 4–20 mA HART® communication platform, giving process plants a single positioner design that fits both rotary and linear pneumatic control valve actuators, whether mounted locally or remotely. Its non-contact sensing technology eliminates the mechanical wear points found in older potentiometer-based designs, extending service life in continuous-duty control loops while local LCD and pushbutton access, rated for hazardous locations, allows auto-stroke and auto-tune commissioning without opening the enclosure.

In Oman and the GCC, Seven Star LLC proudly supplies the Masoneilan SVI II AP digital valve positioner to process, oil and gas, petrochemical, and utility customers across Oman and the wider GCC. Every unit supplied through Seven Star LLC comes with manufacturer documentation and local technical support – helping engineers in Muscat, Sohar, and Salalah select a positioner suited to the plant’s life cycle.

Operating Principle

The Masoneilan SVI II AP positions a pneumatic actuator by comparing a 4–20 mA HART setpoint against the actual valve stem or shaft position, reported continuously by its non-contact sensor. Because the sensing element never physically touches a wearing mechanical linkage in the same way a resistive potentiometer does, the measurement stays stable and repeatable over hundreds of thousands of stroke cycles, which is exactly the duty profile of a control valve modulating flow, pressure, or level in a continuous process. An internal I/P (current-to-pneumatic) module converts the electronic control signal into a precisely metered pneumatic output that drives the actuator diaphragm or piston, with the positioner’s control algorithm continuously trimming that output to null out any deviation between setpoint and measured position.

Auto-stroke and auto-tune routines let a technician commission the positioner in minutes: the device strokes the valve through its full travel, learns the actuator’s spring rate and friction characteristics, and self-selects tuning parameters instead of requiring manual trial-and-error adjustment in the field. The practical consequence is a positioner that holds tighter setpoint accuracy across the full pressure range – typically 20–100 psi (1.4–6.9 bar) single-acting and 20–150 psi (1.4–10.3 bar) double-acting – while its HART bidirectional communication continuously reports position feedback, travel deviation, supply pressure, and internal diagnostic alarms back to the control system without any additional wiring.

Engineering Design of the Masoneilan SVI II AP

The positioner is housed in a copper-free aluminum enclosure rated for the full range of hazardous-area protection concepts – ATEX, IECEx, and the equivalent North American, Russian, Indian, Chinese, Brazilian, Japanese, and South Korean approvals – so a single hardware platform can be specified across a multinational asset base without re-engineering the certification package for each region. The modular mechanical design accepts rotary and linear mounting kits from Masoneilan’s own actuator range as well as universal retrofit brackets for third-party pneumatic actuators already installed in the field, which matters enormously on a brownfield revamp where replacing the actuator itself is not in scope.

Field wiring terminates at a two-wire 4–20 mA loop with HART 5 or HART 7 protocol layered on the same pair, so no separate communication cabling is required to reach a DCS, asset management system, or handheld HART communicator. The local interface combines a backlit LCD readout with sealed pushbuttons operable through the enclosure window, and the pneumatic output stage is rated to deliver 280 standard liters per minute of air at 30 psi supply, giving the positioner enough stroking speed for actuators used in fast-acting shutdown and anti-surge service as well as slow-modulating flow control.

Key Features

Choosing the Masoneilan SVI II AP for a new or retrofit control loop means combining the diagnostic depth process engineers expect from a modern digital positioner with the mechanical simplicity that keeps maintenance teams productive in the field.

• Non-contact position sensing technology removes the mechanical wear points inherent to potentiometer-based positioners, extending calibration stability over the actuator’s service life.
• HART 5 and HART 7 bidirectional communication over a standard 4–20 mA loop delivers position feedback, diagnostics, and configuration access without dedicated communication wiring.
• Auto-stroke and auto-tune commissioning routines cut startup and commissioning time compared with manually tuned pneumatic or analog positioners.
• A single universal design accommodates rotary or linear actuators in local or remote mounting configurations, reducing spare-parts inventory across mixed valve fleets.
• Certified for hazardous-area installation under ATEX, IECEx, and equivalent regional approvals, supporting global asset standardization.
• Copper-free aluminum housing resists corrosion in coastal and offshore installations typical of Gulf oil and gas terminals.
• Local LCD display and sealed pushbuttons allow commissioning and diagnostic review without removing the enclosure cover in a classified area.
• Backward-compatible mounting kits allow retrofit onto existing Masoneilan and non-Masoneilan pneumatic actuators already installed in the plant.

Industrial Applications

Refineries, gas processing trains, and petrochemical complexes across the Gulf rely on positioners like the Masoneilan SVI II AP wherever a control valve’s stem or shaft position must track a DCS setpoint precisely – distillation column reflux control, compressor anti-surge valves, fired-heater fuel-gas trim, and separator level control are all duty profiles where sensor drift or sluggish stroking translates directly into lost throughput or an unplanned trip. Its hazardous-area certification and wide pressure operating window also make it suitable for offshore platforms and onshore gathering stations where ambient temperature swings and vibration are routine operating conditions rather than exceptions.

In Oman and the GCC, Seven Star LLC supplies the Masoneilan SVI II AP positioner to EPC contractors, national oil companies, and independent power and desalination operators throughout Oman and the GCC, including projects in the Sohar and Salalah economic zones where regional warehousing and fast local support materially shorten turnaround maintenance windows. District cooling plants and RO desalination trains in Muscat also specify the SVI II AP where a single positioner platform needs to cover both rotary butterfly/ball valve actuators and linear globe valve actuators on the same procurement contract.

Technical Specifications

The table below summarizes the core Masoneilan SVI II AP specifications as published in Masoneilan’s technical documentation, and Seven Star LLC can confirm current Masoneilan SVI II AP availability and lead time on request.

Request a Quote for Masoneilan SVI II AP

Seven Star LLC invites facility engineers, procurement teams, and EPC contractors across Oman and the GCC to submit a formal RFQ for the Masoneilan SVI II AP – the Masoneilan SVI II AP Advanced Performance digital valve positioner. Lead time is confirmed at quotation for both new-build and retrofit projects, and the full Masoneilan SVI II AP technical datasheet is available on request for engineering review and specification packages. Our instrumentation division can also advise on rotary or linear actuator mounting kits and HART asset-management integration. In Oman and the GCC, Seven Star LLC provides dedicated regional technical support for every unit supplied.

Browse the full Masoneilan range or see more Valve Positioner products supplied by Seven Star LLC in Oman and the GCC.
