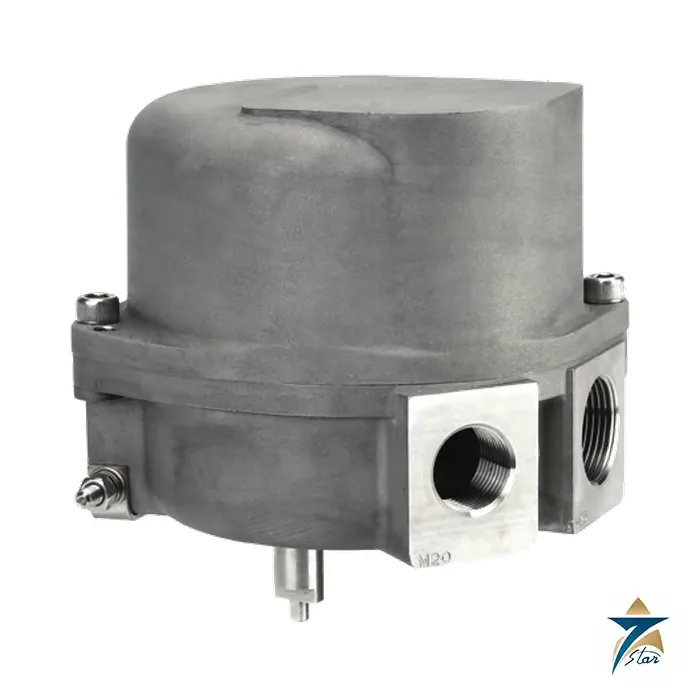

TopWorx K-Series Valve Controllers K1 K2 K5L K7L
Description
Explosion-protected position monitors for hazardous areas
The TopWorx K-Series valve controllers cover the K1 and K2 families, with flameproof and intrinsically safe versions of K1P/K1S, K2P/K2S, K1/K2 Ex ia and K5L/K7L. The K5L/K7L section of the manual states that the unit monitors the position of on/off or modulating rotary or linear equipment and can also pneumatically control on/off equipment such as valve actuators, and that it is not suitable for multi-turn rotating equipment. The manual is a certification-centred document with safe-use, cable-entry and cam-setting instructions for each version.
Technical specifications
| Parameter | Specification |
|---|---|
| Versions in manual | K1P/K1S and K2P/K2S flameproof; K1/K2 Ex ia; K5L/K7L intrinsically safe |
| K1P/K1S flameproof classes | EC6: Ex db IIC T6 Gb / Ex tb IIIC T85 C Db, Ta -60 to +40 C, IP66/67; EC6H: Ta -60 to +70 C; EC4: Ex db IIC T4 Gb / Ex tb IIIC T135 C Db, Ta -60 to +80 C; EC4H: T4, Ta -60 to +80 C (+120 C) |
| K2P/K2S flameproof classes | E6: Ta -50 to +40 C; E6H: -50 to +70 C; E5: Ex db IIC T5 Gb, Ta -50 to +40 C; E4: T4, Ta -50 to +80 C; IP66/67; certificate Baseefa 16ATEX0121, IECEx BAS 16.0092 |
| K1/K2 and K5L/K7L marking | II 2 GD intrinsically safe Ex ia; non-mining equipment group |
| CSA information | K1P/K1S and K2P/K2S sections list CSA explosion-proof information for Class I Zone 1 and Class II areas, Type 4, 4X, 6, 6P |
| Cable entries | Up to four tapped entries; IP6X glands and blanking plugs required |
| Base mounting | Four M6 x 1 x 8 mm deep threaded holes on a 50 mm PCD |
| Cover | Retained by two stainless steel M6 socket head screws; visual position indicator versions have a slotted shaft |
| Internal temperature rise | Maximum 35 K; take into account when choosing cable |
| Switch ratings | Schedules of electrical ratings list switches, potentiometers and a remote solenoid circuit; for example switches Umax 275 V and Imax 9 A, solenoid Umax 275 V and Imax 2 A |
| Fasteners | Stainless steel A2-70 minimum |
Choosing a version
Pick the version from the area classification and gas group, then the ambient temperature class. The T-class and the permissible ambient temperature range differ between EC/E codes, so the nameplate must be matched to the site. The manual includes safe-use warnings such as not opening the cover when an explosive atmosphere is present, keeping flame paths clean and undamaged, and repair only by TopWorx. Switch cams are adjusted by sliding them off the spline hub and rotating, and the K-Series 4-20 mA and HART transmitter manuals are separate documents.
What to confirm before ordering
Confirm the certification scheme needed (ATEX, IECEx or CSA), gas group and temperature class, ambient range, cable entry thread, switch and solenoid configuration and the drive shaft or lever for the actuator. The manual does not contain a price list or ordering codes.
Documents and quotation
The TopWorx K-Series IOM (14 pages, 2017) is hosted on this page. See Valve Positioners for related products. Send the full model code, certification, quantity and mounting data for a quotation.
Datasheets & Documents
- Manual TopWorx K-Series IOM (14 pages, 2017) Download
