Neles NDX Intelligent Valve Controller

Overview

Neles NDX is the next-generation intelligent valve controller from the Neles flow control range, a loop-powered electropneumatic positioner designed to work on every type of control valve and in every process industry. It converts a 4–20 mA command signal into a precise pneumatic output, continuously compares the commanded position with the measured valve position, and corrects the difference until the valve sits exactly where the control system wants it. The manufacturer datasheet describes a single positioner platform that fits small and large valves, rotary and linear designs, and both single- and double-acting actuators.

Seven Star LLC supplies the Neles NDX to refineries, gas plants, power stations and water facilities in the Sultanate of Oman and across the GCC, with engineering support in Muscat. Plants that already run the older ND9000 or NE700 generation can specify the Neles NDX with retrofit kits, so replacement does not force a change of actuator or valve, while new projects gain a positioner with diagnostics available in every unit rather than as a paid upgrade.

Operating Principle

The Neles NDX is a microcontroller-based instrument powered entirely from the 4–20 mA control loop, so no external power supply is required. After the electrical signal and the pneumatic supply are connected, the controller continuously reads five measurements: the input signal, the valve position from a contactless sensor, the actuator pressure, the supply pressure and the device temperature. Advanced self-diagnostics confirm that each of these measurements is working correctly before the control algorithm acts on it.

From those readings the microcontroller calculates a control signal for an I/P converter, which acts as the prestage and sets the operating pressure for the pneumatic relay in the output stage. The relay moves, actuator pressure changes, and the valve travels. The position sensor reports the movement back, and the algorithm modulates the I/P signal until the position matches the input signal. Because position measurement is fully contactless, there is no wear-prone feedback linkage inside the unit, which supports long maintenance-free service in vibrating, dirty or hot installations.

Engineering Design of the Neles NDX

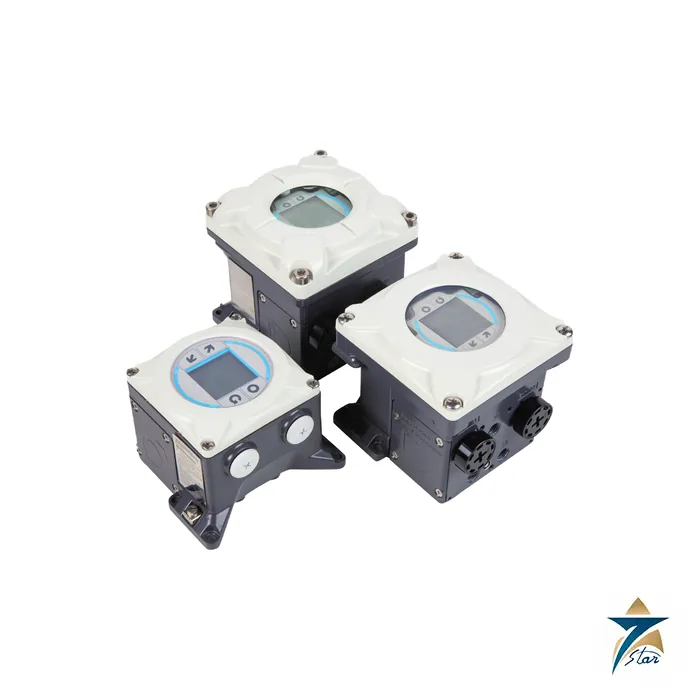

The housing of the Neles NDX is epoxy-coated anodised aluminium alloy, copper free, with an IP66 and NEMA 4X enclosure rating, and it is tested against vibration according to ANSI/ISA-75.13.01. Three versions are offered: a compact unit weighing 2.0 kg, a standard unit at 2.8 kg, and an explosion-proof unit at 3.8 kg whose cover and glass window are made to flameproof requirements. Pneumatic ports are 1/4 NPT for supply and actuator connections and 3/8 NPT for exhausts, with G-thread options through an additional block, and the cable entries are two 1/2 NPT openings with an M20 adapter.

Mounting follows the VDI/VDE 3845 and IEC 60534-6 interfaces, so the Neles NDX attaches to linear valves with 5–120 mm travel and to rotary valves with 30–160 degrees of rotation. A guided start-up wizard on the local user interface walks the technician through automatic or manual calibration, and the interface can be rotated to match the mounting position. Four capacitive touch buttons operate the menus with the cover installed, which means a technician in a hazardous area does not need to open the enclosure to commission or adjust the device.

Key Features

The Neles NDX combines control performance, air capacity and diagnostics in one rugged field instrument:

• Industry-leading pneumatic capacity of 80 Nm3/h at 4 bar means large actuators can be driven directly, so no booster relays or volume boosters need to be added.
• Steady-state air consumption of only 0.1 Nm3/h lowers compressed-air cost over the life of the installation, which matters across a plant with hundreds of control valves.
• A local user interface with four touch buttons is accessible without opening the cover, with PIN code protection and eleven language options.
• HART protocol revision 7 is standard, and FDT/DTM and EDD based configuration tools let the controller work with multi-vendor asset management systems.
• Diagnostics are available in every unit, including a patented on-line valve signature, trend and histogram collection, and extended off-line tests with key figure calculations.
• Performance with moderate constant-load actuators is stated as dead band of 0.2 percent or less, hysteresis and linearity error below 0.5 percent, and repeatability below 0.2 percent.
• Optional internal position transmitter and digital configurable outputs allow position feedback and limit-switch style signalling without adding separate devices.
• Hazardous-area versions are available with intrinsically safe, non-incendive and flameproof approvals, including ATEX, IECEx and CSA certification.

Industrial Applications

The Neles NDX is used where valve performance directly affects product quality and plant safety: crude and gas processing, refinery process units, power-plant feedwater and steam systems, desalination and water treatment, chemical production, and pulp and paper lines. Its supply media range includes air, nitrogen and sweet natural gas, so it can also be applied on gas-driven actuator installations at remote wellhead and pipeline sites in the Omani interior where instrument air is not available.

For operators in Oman, Seven Star LLC supports Neles NDX selection for Sohar and Duqm process plants, Salalah gas facilities and Muscat utility installations, including actuator interface checks, approval-class confirmation for the hazardous zone and retrofit planning for ND9000 and NE700 positioners. Instrument technicians benefit from the single-platform approach, because one spare unit and one set of training covers rotary ball valves, butterfly valves and linear globe valves. Teams already running the Metso Neles ND9000 intelligent valve controller on a Neles R-Series RE segment control valve can read the same HART data structure on the Neles NDX during a phased changeover, and ball-valve packages such as the Neles Series X2 modular ball valve can be fitted with the same controller.

Technical Specifications

Key figures for the Neles NDX intelligent valve controller are taken from the manufacturer datasheet. Approval details differ by version, so confirm the certificate against your hazardous-area classification before ordering.

Request a Quote for Neles NDX

To request a formal quotation for the Neles NDX intelligent valve controller, send your valve and actuator data, the hazardous-area class and the required version to the Seven Star LLC instrumentation team. We supply Neles NDX units on request with engineering support in Muscat, and we can send the Neles NDX datasheet and approval certificates for your engineering and procurement review across Oman and the GCC.
