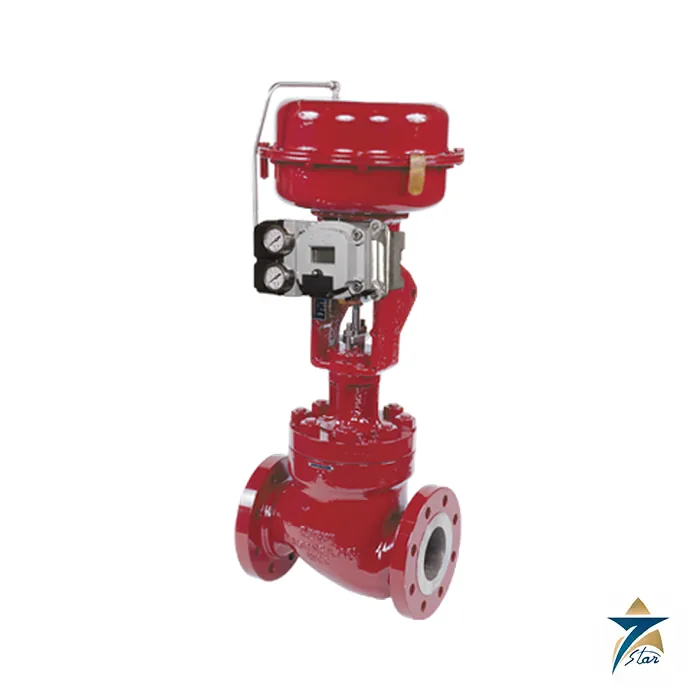

Masoneilan 41005 Series Cage Guided Control Valve

Name: Masoneilan 41005 Series Control Valve – Datasheet & Quote
Brand: Masoneilan

Description

Overview

The Masoneilan 41005 Series is a heavy duty, cage-guided globe control valve from Baker Hughes engineered to deliver dependable, field-proven throttling performance across power generation, refining, petrochemical, and upstream and midstream oil and gas applications. The Masoneilan 41005 uses a balanced trim construction that reduces the resultant forces acting on the valve plug, decreasing the actuator thrust needed to move and position the plug and allowing smaller, lighter actuators to be specified for a given pressure drop. Heavy cage guiding supports the plug through its full stroke range, providing excellent trim alignment and dynamic stability that resists flow-induced vibration and delivers high process yields even under severe, high-pressure-drop conditions.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the 41005 Series to power plants, refineries and petrochemical facilities across Oman and the wider GCC. Whether a client in Muscat is specifying a new steam turbine bypass system or a facility in Sohar needs a direct replacement trim for an existing cage-guided valve, our regional inventory and application engineering support keep critical process control loops running.

Operating Principle

The Masoneilan 41005 Series controls process flow by positioning a balanced, cage-guided plug within a heavy cage that provides dynamic support and precise trim alignment throughout the entire valve stroke. The cage’s drilled-hole or cylindrical-port geometry determines the valve’s inherent flow characteristic, available in linear or equal percentage configurations, while the pressure-balanced plug design routes a portion of the upstream pressure across the plug to counteract the net force the actuator must overcome, allowing accurate, stable throttling control even at high differential pressures. This balanced construction, combined with the extended packing box design in the standard bonnet, supports the use of low-friction PTFE packing that maintains smooth stem movement and tight control resolution even at elevated process temperatures.

For applications prone to high-pressure-drop noise or cavitation damage, the 41005 Series accepts single or multistage Lo-dB noise attenuation trim, anti-cavitation trim, and Variable Resistance Trim (VRT) that breaks the pressure drop into a tortuous, staged path, dissipating energy gradually rather than allowing a single, damaging pressure collapse at the seat. Pilot balanced trim options extend Class V tight shut-off performance to high-temperature service, while soft-seat variants achieve bubble-tight Class VI shut-off in accordance with ANSI/FCI and IEC leakage standards, minimizing the loss of valuable process fluid across the closed valve.

Engineering Design of the Masoneilan 41005

The Masoneilan 41005 Series body is available in globe or angle configuration, in sizes from 2 in to 24 in (50 mm to 610 mm) and pressure ratings from ASME Class 150 through Class 2500, with end connections including raised-face flanged, socket weld, threaded, ring-type joint and butt weld depending on size. Body and bonnet materials span carbon steel, stainless steel, chrome-molybdenum steel and other alloys to match service temperature and corrosion requirements, with the design rated across a wide -320°F to +1050°F (-196°C to +566°C) temperature envelope for both cryogenic and high-temperature process conditions. Simple top-entry access to all trim components and a quick-change trim design allow maintenance technicians to service or upgrade the valve in the field without special tools, shims or removing the valve body from the line.

Actuation options include Masoneilan model 87/88 multi-spring diaphragm actuators for air-to-open or air-to-close fail action, and model 51/52/53 piston-cylinder actuators for double-acting or spring-return service on larger valves requiring higher thrust. When paired with a Masoneilan SVI digital valve positioner, the 41005 gains greater control resolution and accuracy, and integrates with ValvKeep asset management and ValVue smart communications software to deliver real-time preventive and predictive diagnostics data supporting condition-based maintenance programs.

Key Features

The 41005 Series is engineered for severe service reliability and simplified plant maintenance. Key features include:

Balanced cage-guided trim that reduces required actuator thrust, allowing smaller, lighter actuator assemblies.
Heavy cage guiding across the full valve stroke for dynamic stability and resistance to flow-induced vibration.
Wide operating envelope from 2 in to 24 in (50 mm to 610 mm) and ASME Class 150 to Class 2500 pressure ratings.
Cv range from 10 to 10,500 covering compact control applications through high-capacity throttling duty.
Severe service trim options including Lo-dB noise attenuation, anti-cavitation and multistage VRT trim.
Pilot balanced trim for Class V tight shut-off at high temperature, plus soft-seat Class VI bubble-tight sealing.
Simple top-entry, quick-change trim design that reduces field maintenance time and spare parts inventory.
Compatible with Masoneilan SVI digital valve positioners and ValvKeep/ValVue diagnostics software.

Industrial Applications

The Masoneilan 41005 valve remains a familiar sight across regional process plants. The Masoneilan 41005 Series is widely specified across Oman’s power generation, refining and petrochemical sectors wherever a control valve must handle high pressure drops and large temperature swings reliably over long service intervals. Power plant operators use the 41005 on condenser, cooling tower, reactor building and steam turbine applications, including heat recovery steam generator and balance-of-plant duty, while refinery process units rely on it for distillation, hydroprocessing, reforming and cracking service where noise attenuation and anti-cavitation trim protect downstream piping from erosion damage. Midstream and upstream operators also specify the 41005 for gas compression, dehydration, separation and pipeline integrity applications across Oman’s gas processing infrastructure.

With fast quotation turnaround and technical support, Seven Star LLC distributes the 41005 Series to EPC contractors, plant operators and maintenance organizations throughout Oman and the GCC, including major industrial developments in the Sohar and Salalah economic zones. Our instrumentation and valve specialists in Muscat support clients from initial sizing and trim selection through commissioning, ensuring every 41005 Series valve is correctly specified for its service conditions before it reaches site.

Related 41005 configurations on this site include the Masoneilan 41005 Extended Size 30-36 inch valve, Masoneilan 41005 API 6A high pressure valve and Masoneilan 41005 VRT anti-cavitation valve.

Technical Specifications

The table below summarizes the principal specifications of the Masoneilan 41005 Series cage-guided control valve, and every Masoneilan 41005 valve shipped by Seven Star LLC includes complete documentation.

Parameter	Specification
Model	Masoneilan 41005 Series (cage-guided, balanced globe)
Valve sizes	2 in to 24 in (50 mm to 610 mm)
Pressure ratings	ASME Class 150 to 2500 (equivalent PN)
Seat leakage class	ANSI/FCI/IEC Class II, III, IV, V and VI
Cv range	10 to 10,500
Temperature range	-320°F to +1050°F (-196°C to +566°C)
Body and bonnet materials	Carbon steel, stainless steel, chrome-moly, other alloys
Plug materials	Stainless steel, stellite or equivalent hardfacing, nitrided
Trim options	Standard cage, Lo-dB, anti-cavitation, multistage VRT, pilot balanced, soft seat
Flow characteristics	Linear or equal percentage
End connections	RF flanged, socket weld, threaded, RTJ, butt weld
Actuation	Spring diaphragm (87/88) or piston-cylinder (51/52/53)

Request a Quote for Masoneilan 41005 Series Cage Guided Control Valve

Process and plant engineers in Oman and across the GCC can submit a formal RFQ to Seven Star LLC for the Masoneilan 41005 Series control valve; the Masoneilan 41005 remains the trusted choice for severe service throttling duty, including custom trim and actuator configurations supplied on request. Technical datasheets and sizing assistance are available on request from our instrumentation and valve division, and as an experienced supplier of Masoneilan in Oman and the GCC, Seven Star LLC supports every 41005 Series valve with manufacturer documentation and local technical support.
