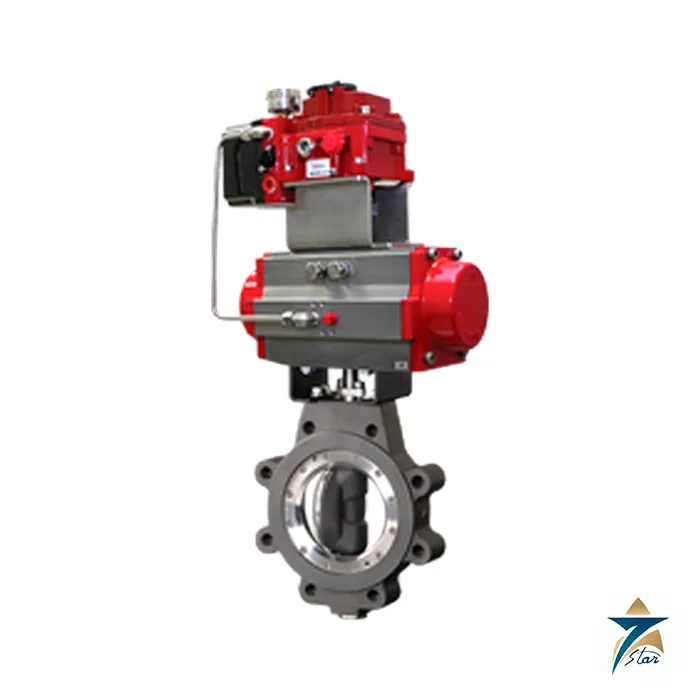

Masoneilan 39005 High Performance Butterfly Valve

Overview

The Masoneilan 39005 High Performance Butterfly Valve is a double-offset, seal-ring rotary control valve engineered by Baker Hughes for automatic throttling duty across refining, petrochemical, power generation, water treatment, and general process industries. Unlike conventional swing-through butterfly valves that rely on interference-fit liners, the Masoneilan 39005 uses a dynamic, pressure-assisted seal ring combined with double offset (eccentric) shaft and seal geometry, lifting the disc cleanly from the seat on every stroke. The result is fast, friction-free operation, ASME Class VI zero-leakage shutoff across Class 150, 300 and 600 ratings, and a Cv turndown ratio of 100:1 that gives precise flow control from full open to near closed.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Masoneilan 39005 High Performance Butterfly Valve to process plants, refineries, and utilities across Oman, Muscat, and the wider GCC. Every Masoneilan 39005 unit shipped through Seven Star LLC carries full Baker Hughes factory backing, genuine spare parts availability, and technical support sized for the demanding conditions found in Sultanate of Oman refining and desalination assets.

Operating Principle

The Masoneilan 39005 achieves its performance through two combined design features: a resilient seal ring and double offset operation. The seal ring centerline is offset from the shaft centerline (first offset), and the shaft centerline is offset from the valve body centerline (second offset). As the disc rotates through its 90° travel, this camming action lifts it away from the seat almost immediately after breakaway, eliminating the sliding contact and scraping wear that shortens the life of conventional liner-seal butterfly valves. Because friction is removed from the stroke, the disc also tends to move in the direction of flow, which allows the valve and its actuator package to work efficiently at higher differential pressures without oversizing the drive train.

Sealing itself is achieved by interference fit at low differential pressure and by pressure-assisted energizing at higher line pressure, so the resilient seat tightens further as process pressure increases — delivering bidirectional, zero-leakage shutoff throughout the service life of the Masoneilan 39005, independently verified to more than one million operating cycles. The practical consequences for plant operators are lower actuator torque requirements, reduced maintenance intervals, and confidence that the valve will hold a tight shutoff even after years of continuous throttling duty in hydrocarbon, steam, or corrosive chemical service.

Engineering Design of the Masoneilan 39005

The Masoneilan 39005 Series is built around a high-strength, one-piece stem with a blowout-proof retention design that does not depend on the actuator to hold the stem in place, together with top and bottom bearings that resist deflection under high mechanical and thermal loading. Adjustable PTFE stem packing with a carbon fiber anti-extrusion ring can be re-tightened in the field with a simple quarter-turn adjustment, without removing the actuator, minimizing downtime during routine maintenance. An extended body neck keeps the packing gland and actuator mounting flange accessible even when the valve is fully insulated for high-temperature service.

The valve body is offered in wafer, lug, and double-flanged configurations from NPS 2 to 66 (DN 50 to 1500), with lug and double-flanged versions rated for full bidirectional dead-end service. Seat options include a standard resilient bidirectional design, a firesafe design combining the resilient seat with a secondary Inconel® metal seat for API 607 and ISO 10497 fire-test compliance, and a fully metal-seated design for high-temperature service to 900°F (482°C). The Masoneilan 39005 is normally paired with the Masoneilan Series 98 pneumatic scotch-yoke actuator, which mounts to an ISO 5211 top flange and is available in spring-return or double-acting configurations from 310 to 100,000 Nm of output torque.

Key Features

Specifying the Masoneilan 39005 High Performance Butterfly Valve gives plant engineers a combination of sealing reliability and mechanical efficiency they can rely on:

• Double-offset (eccentric) disc and shaft geometry lifts the disc from the seat instantly, virtually eliminating seal wear from sliding friction.
• ASME Class VI, EN 12266-1 Rate A zero-leakage bidirectional shutoff is standard across ASME Class 150, 300 and 600 ratings.
• Cv turndown ratio of 100:1 provides accurate, repeatable flow control from near-closed to fully open.
• Blowout-proof stem design and field-adjustable packing reduce unplanned downtime during maintenance.
• Size range spans NPS 2 to 66 (DN 50 to 1500) in wafer, lug, and double-flanged body styles.
• Firesafe seat option is certified to API 607 and ISO 10497 for hydrocarbon and refining safety cases.
• Body materials include carbon steel, stainless steel, nickel aluminum bronze, Hastelloy® C, and titanium for corrosive or high-temperature media.
• Compatible with the Masoneilan Series 98 scotch-yoke actuator platform, simplifying spares and instrumentation across a plant-wide valve fleet.

Industrial Applications

The Masoneilan 39005 is specified wherever plants need a compact, low-torque rotary control valve that can handle demanding throttling duty without the weight and cost penalty of a globe valve. It is widely used on hydrocarbon separation, quench, blending, and cooling water services in refineries and petrochemical complexes, on modulating steam and chilled water circuits in district cooling and HVAC systems, and on corrosive chemical, sour gas, and seawater duty where NACE-compliant trims and duplex or super-duplex materials are required. Oman’s refining and gas-processing corridor, together with the Sohar and Salalah free zones, hosts exactly this mix of hydrocarbon and utility processes, making the Masoneilan 39005 a natural fit for both new EPC projects and brownfield valve replacement programs.

With fast quotation turnaround and technical support, Seven Star LLC supplies the Masoneilan 39005 Series to EPC contractors, operating companies, and maintenance teams throughout Oman and the GCC, with Baker Hughes documentation and application engineering support. Whether a project in Muscat requires a Masoneilan 39005 firesafe wafer valve for a hydrocarbon unit or a district cooling contractor in Sohar needs a large-diameter lug body for chilled water balancing, Seven Star LLC’s genuine Masoneilan supply chain keeps lead times and total cost of ownership under control.

Technical Specifications

The Masoneilan 39005 technical specifications below summarize the core data sheet values for the Masoneilan 39005 High Performance Butterfly Valve; contact Seven Star LLC for full sizing, material, and actuator selection data.

Request a Quote for Masoneilan 39005 High Performance Butterfly Valve

For every Masoneilan 39005 inquiry, Seven Star LLC supports formal RFQs, project-stage valve sizing, and firesafe/metal-seat selection, with lead time and availability confirmed at quotation. Technical datasheets and Baker Hughes certification packages are available on request through our instrumentation and valve automation division. With engineering support in Muscat, Seven Star LLC gives EPC contractors and plant operators a single point of contact for quotation, documentation, and technical support — contact our team today to request a quotation on the Masoneilan 39005.
