Rotork YTC YT-3300 Smart Valve Positioner
Overview
Rotork YTC YT-3300 is a HART-communicating smart valve positioner that converts a standard 4–20mA control signal into precise pneumatic valve stroke positioning on rotary and linear pneumatic actuators. Built on the YTC smart positioner platform now manufactured under the Rotork brand, the YT-3300 combines auto-calibration, PID-based closed-loop control, and a rugged aluminum alloy enclosure to deliver dependable positioning accuracy across oil and gas, water treatment, power generation, and general process automation applications.
With fast quotation turnaround and technical support, Seven Star LLC supplies the YT-3300 smart positioner to end users, EPC contractors, and system integrators across Oman and the GCC, backed by manufacturer documentation, full HART configuration support, and responsive local technical assistance.
Operating Principle
The Rotork YTC YT-3300 reads the 4–20mA input signal from a DCS, PLC, or dedicated controller and compares it against a feedback signal generated internally by a non-contact position sensor coupled to the actuator shaft. A microprocessor-based PID control loop continuously calculates the deviation between the commanded setpoint and the actual valve position, then drives an integrated pilot valve stage to modulate pneumatic pressure to the actuator’s power and return chambers until the error is nulled. Auto-calibration allows the positioner to self-learn the actuator’s full travel span, spring rate, and friction characteristics during commissioning, removing the manual span/zero adjustment that older pneumatic positioners require.
Because the entire control loop is digital, the YT-3300 also continuously self-diagnoses stroke deviation, air supply pressure, and internal electronics health, and reports this data back over HART superimposed on the same 4–20mA loop. The practical consequence for plant operators is fewer manual calibration visits, earlier detection of valve sticking or actuator degradation, and tighter control-loop stability on critical process control valves without adding separate wiring for diagnostics.
Engineering Design of the Rotork YTC YT-3300

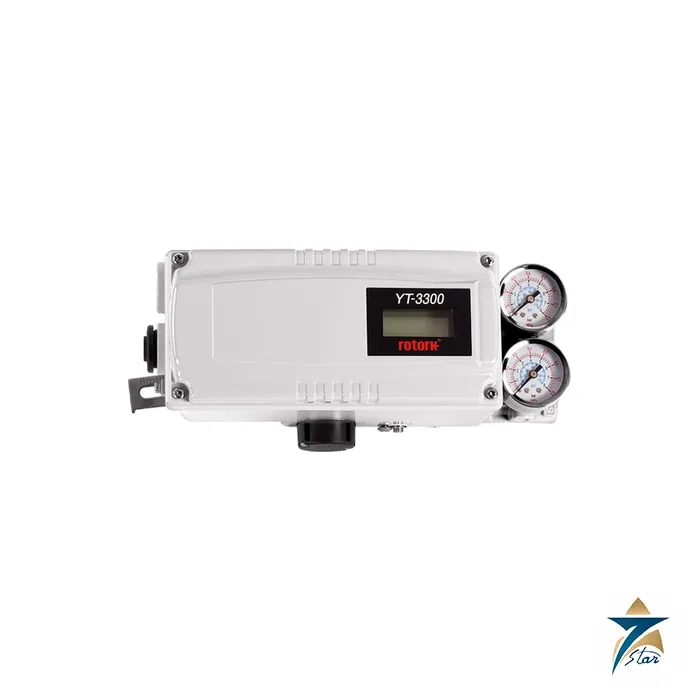

The Rotork YTC YT-3300 housing is a die-cast aluminum alloy enclosure finished for corrosion resistance in coastal and offshore environments common across GCC process facilities. The front face carries a backlit LCD display and a 4-button local keypad for auto-calibration, manual override, and parameter review without opening the housing, while the mounting bracket kit accommodates NAMUR-standard rotary actuators as well as linear (sliding-stem) actuator brackets, letting one positioner platform cover both ball/butterfly valve automation and globe valve service.
Twin analog pressure gauges mounted on the pneumatic output block give an immediate visual indication of supply and output pressure during commissioning and troubleshooting, and the pilot valve module is field-serviceable without disturbing the electronics compartment. Conduit entries are threaded for standard 1/2 inch NPT or M20 cable glands, and the terminal compartment is isolated from the pneumatic section to keep the HART wiring protected during field maintenance. Intrinsically-safe and explosion-proof certified variants (ATEX, IECEx, FM, CSA, UKEX, PESO) extend the same platform into hazardous-area installations.
Key Features
The Rotork YTC YT-3300 is built around the following core capabilities:
- HART digital communication protocol support for remote configuration, diagnostics, and asset management integration.
- Auto-calibration function that automatically learns actuator travel span, eliminating manual zero and span adjustment.
- PID-based closed-loop control algorithm for stable, accurate positioning under varying process load.
- Backlit LCD local display with 4-button keypad for on-site configuration and diagnostic readout.
- Auto/Manual switching capability allowing direct pneumatic override during commissioning or maintenance.
- Integrated feedback signal output for remote position indication back to the control system.
- Optional limit switch integration for discrete open/close status reporting alongside analog position feedback.
- Rugged aluminum alloy housing rated for outdoor and hazardous-area service with multiple global certifications.
Industrial Applications
The Rotork YTC YT-3300 is deployed across oil and gas production and export terminals, refineries, gas processing plants, water and wastewater treatment works, and district cooling and desalination facilities where pneumatic rotary and linear control valves require precise, dependable stroke positioning. Its HART diagnostics make it especially valuable on critical control loops — anti-surge valves, pressure let-down stations, and flow control valves — where undetected valve sticking or actuator drift can compromise process stability or safety margins.
With engineering support in Muscat, Seven Star LLC supplies the YT-3300 to industrial and process facilities throughout the Sultanate of Oman, Muscat, and the wider GCC, including the Sohar and Salalah economic zones, where local petrochemical, power, and desalination plants rely on responsive positioner support.
Technical Specifications
Key technical parameters of the Rotork YTC YT-3300 smart valve positioner:
| Parameter | Specification |
|---|---|
| Model | Rotork YTC YT-3300 |
| Input Signal | 4–20mA DC |
| Communication Protocol | HART |
| Control Method | PID closed-loop, auto-calibrating |
| Actuator Compatibility | Rotary (NAMUR VDI/VDE 3845) and linear pneumatic actuators |
| Local Display | Backlit LCD with 4-button keypad |
| Housing Material | Aluminum alloy, weatherproof |
| Conduit Entry | 1/2 inch NPT or M20 |
| Hazardous Area Certification | ATEX, IECEx, FM, CSA, UKEX, PESO (variant dependent) |
| Air Supply | Clean, dry, oil-free instrument air per gauge indication |
Facility engineers and procurement teams evaluating the Rotork YTC YT-3300 for a new automation project or a replacement of legacy pneumatic positioners will find the unit’s HART diagnostics particularly valuable for predictive maintenance planning, since stroke deviation and air-supply trends can be logged and reviewed well before a valve reaches a failure condition. The Rotork YTC YT-3300 remains one of the most widely specified smart positioners across regional process industries precisely because it pairs proven mechanical reliability with modern digital diagnostics in a single, field-serviceable package.
Request a Quote for Rotork YTC YT-3300
Seven Star LLC supports formal RFQs for the Rotork YTC YT-3300 smart valve positioner, with lead time confirmed at quotation, complete technical datasheets available for download, and a dedicated instrumentation and valve automation division ready to advise on positioner sizing, bracket selection, and hazardous-area certification requirements. Seven Star LLC provides manufacturer documentation and technical support with selection for every YT-3300 unit supplied.
Browse the full Rotork range or see more Valve Positioner products supplied by Seven Star LLC in Oman and the GCC.
- Datasheet Rotork YTC YT-3300 Datasheet Download
Rotork product families on this page
The IQ3 is the intelligent multi-turn electric actuator for gate, globe and sluice valves, and the IQT3 is its part-turn counterpart for ball, butterfly and plug valves. For control valves there are the CVA and CMA electric actuators, built for continuous modulating duty. The Skilmatic SI3 is a self-contained electro-hydraulic actuator used where a fail-safe stroke is required. On the fluid power side the page lists GP/GH scotch yoke pneumatic and hydraulic actuators and the CP compact pneumatic quarter-turn unit. Two instrument brands sold under the Rotork name complete the list: Fairchild, with the Model 1000 no-bleed precision regulator, and YTC, with the YT-1000 electro-pneumatic and YT-3300 smart positioners.Where Rotork actuators are used
Typical duties are isolation and block valves on pipelines and tank farms, motor-operated valves in refineries and power plants, sluice gates and large butterfly valves in water and wastewater works, and emergency shutdown valves on oil and gas facilities across the GCC.Ordering Rotork actuators and parts: what we need
For an existing unit, send the serial number and the wiring diagram number from the nameplate; these two identify the exact build. For a new selection we need the valve type and size, torque or thrust, stem or shaft details, operating time, supply voltage, phase and frequency, the hazardous area certification, and any bus or remote control option. For pneumatic units add the air supply pressure and the fail position.Browse Rotork products by category: Valve Positioner, Valve Actuator.
