Masoneilan 4411 Electro-Pneumatic Transducer

Overview

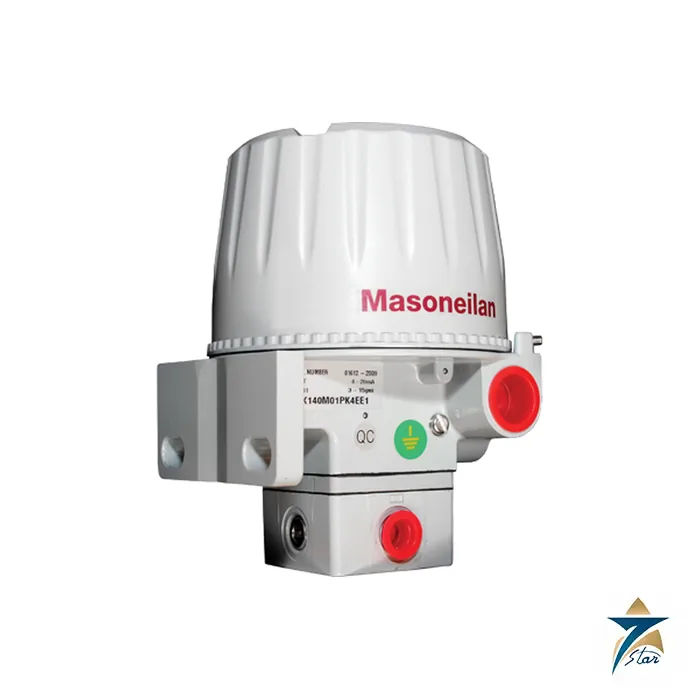

The Masoneilan 4411 is a proportional current-to-pressure converter from Baker Hughes, described by the manufacturer as a precision electronic pressure controller for continuous process control applications. It converts a two-wire 4-20 mA signal into a proportional pneumatic output of 3-15 psig or 6-30 psig, and it is designed for pneumatic positioners and other pneumatic instruments that need a clean electronic-to-pneumatic interface. Because it is a stand-alone converter rather than part of a positioner, it can be mounted away from the valve where temperature or vibration would affect valve-mounted instrumentation, which is exactly the situation Baker Hughes highlights for this model.

Seven Star LLC is a trusted supplier for Masoneilan and supplies the Masoneilan 4411 to oil and gas, power and process customers in the Sultanate of Oman and across the GCC. Our instrumentation team in Muscat helps customers choose between the 3-15 psig, 6-30 psig and metric output versions, and between the 1/2 inch NPT and M20 conduit entries, and we provide the Baker Hughes fact sheet and manual so that approvals can be verified before purchase.

Operating Principle of the Masoneilan 4411

The Masoneilan 4411 operates a closed-loop system that incorporates a feedback sensor. The input current sets a demanded output pressure, the sensor measures the actual output, and the electronics adjust the valve mechanism until the two agree. Baker Hughes states that this closed loop is what delivers long-term stability and high accuracy, with a total error of 0.1 percent of span or better for loads above 500 cc and a response time of one second or less from 10 to 90 percent of output pressure into a 500 cc load.

The design is fail-safe. If the loop current fails, the output pressure falls to a low value, below 15 mbar (0.2 psig) in under two seconds according to the fact sheet. The converter combines substantial flow capacity, above 300 normal litres per minute (12 scfm), with the ability to give precise control into closed-volume dead-end applications, so it can drive a positioner, a small actuator or a volume booster without needing a separate relay. Temperature compensation is built in, with a typical effect of less than 0.035 percent of span per degree Celsius from -40 to +85 degrees Celsius.

Engineering Design of the Masoneilan 4411

The housing is aluminium and zinc die-casting with nitrile diaphragms and a grey epoxy powder coating, weatherproof to IP66 and NEMA Type 4X when mounted upright, and the unit weighs 2.07 kg. The Masoneilan 4411 has twin conduit entries, 1/2 inch NPT as standard or M20 through an adapter, and an internal terminal block for cable up to 2.5 mm2. A 3.5 mm jack socket allows the unit to be calibrated or monitored with a current source or ammeter without disturbing the loop, and zero, span and tight shut-off trimpots are accessed under the screw-on lid.

Pneumatically, the supply and output ports are 1/4 inch NPT female, with integral 1/8 inch NPT gauge ports and exhaust baffles that can be piped away for a captured-bleed installation. A built-in air filter rated 98 percent efficient at 2 micrometres is a field-replaceable part, as are the modular electronics. The factory calibration is at 30 psig supply, although operation is possible from 18 to 150 psig, and the tight shut-off feature is deactivated at the factory and can be set to drive the output to zero at a chosen signal level.

Key Features

The following capabilities make the Masoneilan 4411 a dependable interface between an electronic control system and pneumatic hardware:

• Closed-loop feedback control for stable output pressure with a total error of 0.1 percent of span or better on typical loads.
• Output ranges of 3-15 psig, 6-30 psig, 0.2-1 bar or 0.4-2 bar depending on the part number.
• Flow capacity above 300 Nl/min at full signal and consistent control into dead-end volumes.
• Operating range from -40 to +85 degrees Celsius with typical temperature effect below 0.035 percent of span per degree.
• Explosion-proof, intrinsically safe and non-incendive versions with ATEX, FM and CSA certification.
• Vibration immunity, with output changes below 4 percent at 4 mm 5-15 Hz and 2 g to 150 Hz.
• Modular electronics and a field-replaceable built-in air filter to simplify maintenance.
• Integral bracket for surface or 50 mm pipe mounting in any orientation, plus a captured-bleed option.

Industrial Applications

Baker Hughes lists the Masoneilan 4411 for power generation, refining, petrochemicals and midstream and upstream oil and gas, including steam turbines, gas turbines, condensers, cooling towers, distillation, hydroprocessing, compression, pipeline operations and liquefaction. Typical use is to give a pneumatic positioner a standard electronic signal, to drive a pneumatic actuator directly, or to provide a pneumatic setpoint to another instrument, in plants where heat or vibration at the valve make it better to keep electronics elsewhere. In Oman, desalination plants, power stations and refinery units around Sohar and Duqm are typical locations.

In Oman and the GCC, Seven Star LLC supplies the Masoneilan 4411 with the equipment it feeds, such as Masoneilan Type 87/88 spring-diaphragm actuators and Masoneilan Type 51/52/53 piston actuators. Where an actuator needs faster stroking, the converter output can be combined with the Masoneilan BR200 booster relay. Baker Hughes recommends clean, dry, oil-free instrument air, with a dew point at least 10 degrees Celsius below the lowest expected ambient temperature, so filtration at the supply is part of a good installation.

Technical Specifications

The table summarises the published data for the Masoneilan 4411 from the Baker Hughes fact sheet and manual. Approvals depend on the part number, so please check the device label and current certificates.

Related Masoneilan positioners and accessories include the Masoneilan 4700E/4800E electropneumatic positioner, Masoneilan 4700P/4800P pneumatic positioner, Masoneilan 78 air filter regulator and Masoneilan BR400 volume booster relay.

Request a Quote for Masoneilan 4411

To request pricing or technical support for the Masoneilan 4411, send a formal RFQ to the Seven Star LLC instrumentation division stating the output range, conduit entry and certification you need. We can confirm the part number, advise on availability and lead time and provide the Baker Hughes fact sheet from this page. In Oman and the GCC, Seven Star LLC supplies genuine products with manufacturer documentation, warranty backing and responsive local support.
