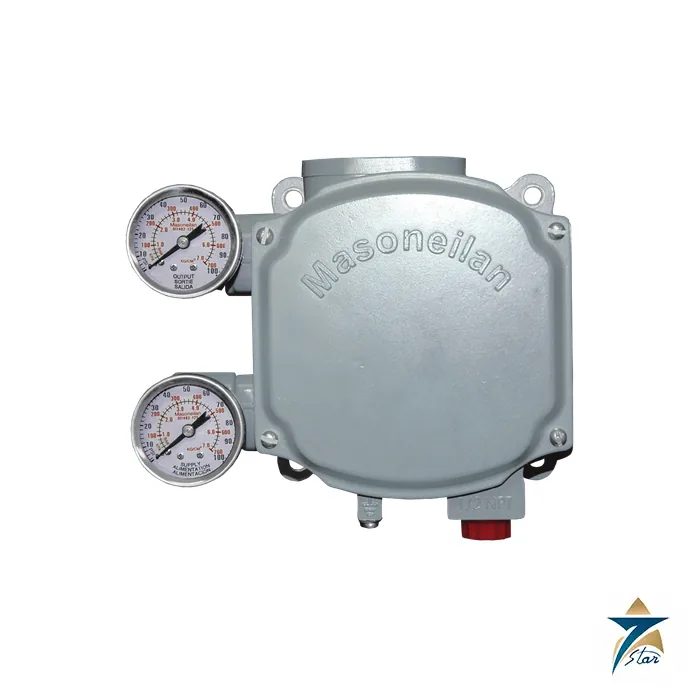

Masoneilan SVi1000 Digital Valve Positioner
Overview
The Masoneilan SVi1000 is a loop-powered digital valve positioner from Baker Hughes that turns a standard 4-20 mA signal, with HART communication carried on the same two wires, into precise, repeatable control of single-acting pneumatic control valves. Baker Hughes positions it as the user-friendly choice for control systems that still use 4-20 mA signalling, and it combines proven magnetic position measurement, an industrial metal housing and a deliberately simple local interface. One model serves both rotary and reciprocating valves, so a plant can standardise on a single positioner for globe, butterfly and rotary-plug installations.
Seven Star LLC is a trusted supplier for Masoneilan and supplies the Masoneilan SVi1000 to refineries, gas plants, power stations and water facilities in the Sultanate of Oman and across the GCC. Our instrumentation team in Muscat can confirm the correct configuration code for each valve, including the optional gauges, solid-state switches, position retransmit board and integrated magnet, and can supply the Baker Hughes fact sheet so that your engineers can check the specification before an order is placed.
Operating Principle of the Masoneilan SVi1000
The Masoneilan SVi1000 is a smart electro-pneumatic positioner. It receives the 4-20 mA position setpoint from the controller and compares it with the valve position reported by a non-contact magnetic travel sensor. The difference between setpoint and feedback is analysed by the position control algorithm, which produces a servo signal for the internal current-to-pressure converter. The converter output is amplified by a pneumatic relay that drives the actuator, and once the error falls inside the allowed band no further correction is applied, so the valve holds position without hunting.
The Masoneilan positioner draws its operating power from the control loop itself, with a minimum of 3.2 mA needed to start up and a compliance voltage of 9 V at 20 mA or 11 V at 4 mA. Because the position sensor is a magnet coupled Hall-effect device, there is no shaft penetration into the housing and no wiper that can wear, which is the reason Baker Hughes describes the enclosure as sealed with fully potted electronics. If the positioner detects a persistent internal fault it moves to a failsafe mode in which the output pressure is set low, and on loss of input signal or air supply the actuator output vents to atmosphere.
Engineering Design of the Masoneilan SVi1000
The housing and cover are low-copper aluminium to ASTM A360, finished in grey polyurethane over an epoxy primer, and the enclosure is rated IP66 and NEMA 4X for outdoor and marine service. Electrical connection is a single 1/2 NPT female entry onto screw terminals, with wire sizes from 12 to 28 AWG. The unit has a tropicalised construction with fungus-resistant coating, anti-fungal protection on exposed circuits and a positively pressured housing with bug-resistant orifices, which suits the hot and humid conditions found along the Gulf coast.
Commissioning is carried out from the local interface without opening a laptop. Four buttons with matching LEDs run the Auto Find Stops, upper-stop and Autotune routines, a configuration selector chooses air-to-open or air-to-close action and selects autotuned or preset tuning sets, and a screw adjusts the open stop. The same device can be reached over HART using ValVue software, a handheld communicator or any host that supports DD, eDDL or DTM, and the Masoneilan SVi1000 supports HART revision 5 or 7, field selectable. Orderable configurations are coded /G for gauges, /SW for two solid-state switches, /PR for 4-20 mA position retransmit and /IM for an integrated magnet, and these options can be combined.
Key Features
The following capabilities make the Masoneilan SVi1000 a practical positioner for plants that want smart diagnostics without moving to a fieldbus architecture:
- Loop-powered 4-20 mA operation with HART 5 or HART 7 communication, so existing marshalling and cabling can be reused.
- One-button-one-function local interface with LEDs for stops, tuning, status and cancel, giving fast commissioning without a configurator.
- Automatic find-stops and Autotune routines, plus preset tuning sets for quick setup when autotuning is not required.
- Non-contact magnetic travel sensing that suits linear travel and rotary movement of 18 to 140 degrees.
- Selectable characterisation: linear, equal percentage 50:1 or 30:1, quick opening, Camflex II percentage and an 11-point custom curve.
- Configurable tight shutoff over 0 to 20 percent of the input signal to protect seats from erosion.
- Integrated diagnostics including ramp tests, step tests, travel accumulator, cycle counts and time near closed or open.
- Optional solid-state switches rated 1 A at 30 Vdc and an optional 4-20 mA position retransmit output.
- Split-range capability with a minimum input span of 5 mA for two-valve sequencing.
Industrial Applications
Baker Hughes lists the Masoneilan SVi1000 for power generation, refining, petrochemicals and midstream and upstream oil and gas, with typical duties on steam turbine bypass, condensers, cooling towers, gas turbines, heat recovery systems, distillation, hydroprocessing, compression, separation and pipeline operations. In Oman this means control valves at Sohar and Duqm process units, power and desalination plants along the Batinah coast and gas gathering facilities inland, wherever a robust 4-20 mA positioner is needed for single-acting actuators.
In Oman and the GCC, Seven Star LLC supplies the Masoneilan SVi1000 together with the actuators and accessories it is normally installed on. It is commonly fitted on Masoneilan Type 87/88 spring-diaphragm actuators. Plants that run foundation fieldbus segments can choose the Masoneilan SVI FF valve positioner instead, and sites that want a newer digital platform can review the Masoneilan SVI3 digital valve positioner. Our engineers will recommend the correct model, whether the Masoneilan SVi1000 or another positioner, for each valve and control system.
Technical Specifications
The table summarises the published data for the Masoneilan SVi1000. Where the Baker Hughes fact sheet and instruction manual give different figures, the fact sheet value is shown with the other noted, and the figure for an order is confirmed at quotation.
| Parameter | Specification |
|---|---|
| Model | Masoneilan SVi1000 digital valve positioner (single-acting) |
| Input signal | 4-20 mA, loop powered, minimum 3.2 mA to start, maximum 24 mA |
| Compliance voltage | 9 Vdc at 20 mA, 11 Vdc at 4 mA |
| Communication | HART revision 5 or 7 (field selectable) |
| Supply pressure | 1.4 to 6.9 bar (20 to 100 psi) per the fact sheet; clean, dry, oil-free air or regulated sweet natural gas; confirm the limit for your actuator at quotation |
| Air delivery | 16.8 Nm3/h at 2.1 bar; 28.2 Nm3/h at 4.2 bar |
| Flow coefficient | Loading Cv 0.30, venting Cv 0.40 |
| Travel range | Rotary 18 to 140 degrees; linear from 6.4 mm (0.25 in) |
| Accuracy | Typically 0.5 percent of full span per the fact sheet (the instruction manual quotes 1.0 percent; confirm at quotation) |
| Hysteresis and deadband | 0.3 percent of full span |
| Repeatability | 0.3 percent of full span |
| Ambient temperature | -40 to 85 degC; up to 100 percent relative humidity, non-condensing |
| Enclosure | IP66 and NEMA 4X, aluminium housing |
| Hazardous area approvals | FM, FMc, ATEX and IEC; intrinsically safe Ex ia IIC T4 Ga; non-incendive options |
| Options | /G gauges, /SW switches, /PR position retransmit, /IM integrated magnet |
Related Masoneilan positioners and accessories include the Masoneilan 4700P/4800P pneumatic positioner, Masoneilan 4700E/4800E electropneumatic positioner, Masoneilan 4411 I/P transducer, Masoneilan BR400 volume booster relay and Masoneilan SVI II ESD digital valve positioner.
Request a Quote for Masoneilan SVi1000
To request pricing or technical support for the Masoneilan SVi1000, send a formal RFQ to the Seven Star LLC instrumentation division with the valve type, actuator action, supply pressure and hazardous area requirement. We can confirm the configuration code, advise on availability and lead time, and provide the Baker Hughes fact sheet from this page. In Oman and the GCC, Seven Star LLC supplies genuine instruments with manufacturer documentation and local engineering support.
