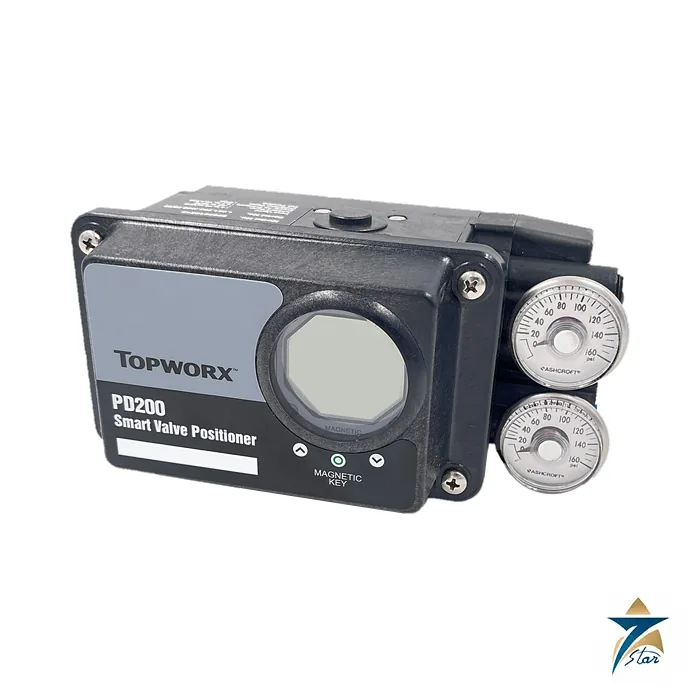

TopWorx PD Series Smart Valve Positioner PD100 / PD200

Name: TopWorx PD100 PD200 Smart Valve Positioner – Datasheet & Quote
Brand: TopWorx
SKU: PD100 / PD200

Description

A compact smart positioner for linear and rotary valves

The TopWorx PD Series smart valve positioner is offered as the PD100 and the PD200. It fits linear and rotary actuators, single or double acting, with direct or reverse action, and uses Hall-effect contactless position sensing. A local liquid crystal display, autocalibration and three buttons make set-up easy, and the PD200 adds HART capability with configurable alarms and magnetic buttons that can be operated with a magnetic key without removing the cover.

Technical specifications

Parameter	Specification
Models	PD100 (standard controls); PD200 (enhanced controls)
Signal	4-20 mA nominal (PD100); 4-20 mA and HART capable (PD200)
Configurable alarms	PD100 no; PD200 yes
Minimum voltage	8.5 VDC analog; PD200 9.0 VDC for HART
Overvoltage / voltage drop	36 VDC / 12.2 VDC at 4 mA, 24 VDC
Input / output impedance	470 ohms at 20 mA, 24 VDC / 800 ohms (feedback)
Stroke range	Linear 12 to 200 mm; rotary 0 to 120 degrees
Hysteresis / repeatability / linearity	1.5% / 1.5% / 0.8% of full scale
Temperature range	PD100 -40 to +65 C; PD200 -40 to +75 C
Protection	IP66, Type 4X
Certifications on datasheet	PD100 general purpose, non-incendive (pending); PD200 intrinsically safe Ex ia IIC T4 Ga (pending)
Connections	1/2 in NPT female electrical; 1/4 in NPT female pneumatic inlet and outlet
Air supply	2.8 to 8 bar (40 to 116 psi)
Air consumption	8.8 l/min (0.5 Nm3/h); 0.31 scfm at 60 psi
Display	PD100: 4 numeric digits; PD200: 4.5 numeric and 6 alphanumeric digits
Materials	Thermoplastic composite enclosure; aluminium mounting base; ZAMAC manifold; fluoroelastomer seals
Weight with manifold	PD100 2.2 kg; PD200 2.3 kg

Ordering code

The datasheet codification builds a code such as PD200-HSNGK30000-ES from model, input and communication (C 4-20 mA for PD100, H HART 7 for PD200), feedback output (F isolated 4-20 mA feedback for PD100; S feedback plus two mechanical alarm switches for PD200), connection N (single conduit entry with 1/4 in NPT manifold), manifold G (two pressure gauges in psi), actuator type (RN rotary NAMUR adapter, K3 linear lever 12-120 mm, K4 linear lever 80-200 mm), mounting bracket (00 means none, sold separately), options and hazardous area class (GP, EN or ES). Not all combinations are compatible, so confirm with TopWorx.

Selection notes

Choose the PD100 for analog control and general purpose or non-incendive areas, and the PD200 where HART, alarms or intrinsic safety are needed. The hazardous-area marks are shown as pending on this edition of the datasheet, so verify certification status before use in a classified area. The sheet gives no actuator-size limit beyond the stroke range.

Documents and quotation

The TopWorx PD Series datasheet (TWMD0001-R5) is hosted on this page, and other valve products are listed under Valve Positioners. Send the model code, actuator type, stroke or rotation, supply pressure and area classification for a quotation.
