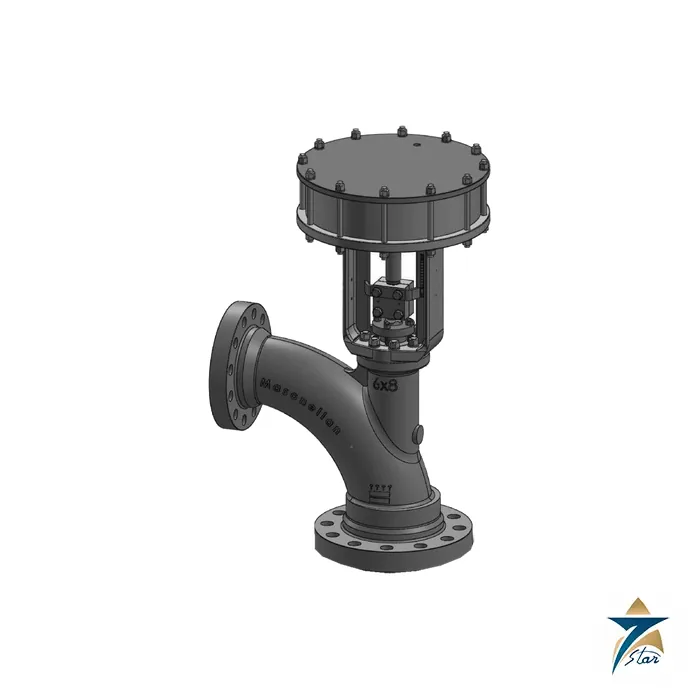

Masoneilan 73000 Series Sweep Angle Control Valve
Overview
The Masoneilan 73000 Series is a sweep angle control valve from Baker Hughes designed to throttle highly erosive, flashing and two-phase flows. In a sweep angle body the flow turns through a long, gradual bend instead of the abrupt corner of a conventional angle valve, which reduces the impact of entrained solids and the violence of flashing against the body walls. The Masoneilan 73000 is used in refining and petrochemical processes, and its published size range runs from 1 x 1 inch up to 10 x 12 inches.
In Oman and the GCC, Seven Star LLC proudly supplies the Masoneilan 73000 Series Sweep Angle Control Valve to refineries, petrochemical plants and EPC contractors across the Sultanate of Oman and the wider GCC. Our Muscat instrumentation and valve team supports specification, installation planning and spare-parts supply, and the Baker Hughes instruction manual for the series is available for download from this page.
Operating Principle
The Masoneilan 73000 throttles by moving a plug against a seat ring at the bottom of the sweep body. The seat ring is clamped between the valve body and the lower pipeline flange, with a gasket on the pipeline side, which is why the instruction manual stresses pressing the seat ring against the body when the lower flange is secured. The plug is driven through a split clamp that couples the actuator piston rod to the plug stem, and the stem is sealed by a packing box containing guide bushing, packing, packing spacer and lantern ring.
The trim choices are what let the valve tolerate bad fluids. Baker Hughes lists a high-capacity single-stage trim and a reduced-port venturi outlet trim, with ceramic and tungsten carbide trim available as options where erosion is severe. The inherent characteristic is linear, and actuators are Model 87/88 multi-spring-opposed diaphragm actuators or cylinder actuators; the instruction manual covers the piston-actuated arrangement, in which the piston rod is raised or lowered by air pressure or by handwheel operation during maintenance.
Engineering Design of the Masoneilan 73000
The Masoneilan 73000 Series is offered in flanged ANSI Class 150 to 2500 ratings. Body materials listed by Baker Hughes are carbon steel, stainless steel, titanium and Hastelloy, with other materials available, which allows the valve to be matched to corrosive refinery and petrochemical streams. The instruction manual covers the Models XX-73471 construction and describes a bonnet arrangement with a packing flange held by stud nuts, a yoke connected to the body by a drive nut or by studs and nuts, and an optional extension bonnet.
The manual is practical about field handling. The valve must be installed with flow in the direction shown by the flow arrows or from the connection marked IN toward OUT, the pipeline must be cleaned of weld spatter, scale and debris before installation, and a horizontally installed valve must be supported from the yoke or another part of the actuator. On an extension bonnet, insulation must not be applied to the extended portion. Baker Hughes states an estimated useful life of more than 25 years for the series, provided that annual inspection, routine maintenance and correct installation are carried out.
Key Features
These characteristics define the Masoneilan 73000 for severe-duty throttling:
- A sweep angle body is intended for highly erosive, flashing and two-phase flows.
- A high-capacity single-stage trim is available for services that need maximum flow per body size.
- A reduced-port venturi outlet trim is offered where the outlet region needs extra protection.
- Ceramic and tungsten carbide trim options address severe erosion on plug and seat.
- Body materials include carbon steel, stainless steel, titanium and Hastelloy, with others available.
- Flanged connections cover ANSI Class 150 to 2500 in sizes from 1 x 1 to 10 x 12 inches.
- Model 87/88 diaphragm actuators and cylinder actuators allow the thrust to be matched to the service.
- A published instruction manual gives clear disassembly, seat polishing, reassembly and packing-box procedures for maintenance teams.
Industrial Applications
Baker Hughes lists refining and petrochemicals as the industries for the Masoneilan 73000 and names distillation, hydroprocessing, reforming, cracking, secondary blending, quenching and fractioning, charge gas compression and separation as the key applications. These are processes in which a pressure letdown can flash a liquid or carry catalyst fines and coke, which is exactly the case in which a sweep angle body outperforms a conventional globe. In Oman, the same duties appear in the refining and petrochemical complexes at Sohar and Duqm and in the downstream facilities connected to them.
In Oman and the GCC, Seven Star LLC supplies the Masoneilan 73000 Series to EPC contractors, plant operators and maintenance planners throughout Oman and the GCC, including projects in the Sohar and Salalah economic zones. For the actuation and control side of the loop we supply Type 51/52/53 piston actuators, Type 88 spring-diaphragm actuators and the SVI3 digital valve positioner.
Technical Specifications
The table below summarizes the published data for the Masoneilan 73000 from the Baker Hughes Masoneilan product page and instruction manual. Baker Hughes publishes this series with an instruction manual rather than a dedicated datasheet, so project-specific data should be confirmed with the factory through Seven Star LLC.
| Parameter | Specification |
|---|---|
| Model | Masoneilan 73000 Series sweep angle control valve (instruction manual covers Models XX-73471) |
| Valve sizes | 1 x 1 in to 10 x 12 in (25 x 25 mm to 250 x 300 mm) |
| Pressure ratings | Flanged, ANSI Class 150 to 2500 |
| Body materials | Carbon steel, stainless steel, titanium, Hastelloy, others |
| Trim options | High-capacity single stage; reduced-port venturi outlet; ceramic and tungsten carbide optional |
| Inherent characteristic | Linear |
| Actuation | Model 87/88 multi-spring-opposed diaphragm; cylinder |
| Applicable industries | Refining, petrochemicals |
| Estimated useful life (Baker Hughes) | 25+ years with annual inspection and routine maintenance |
Related Masoneilan sweep and angle valves include the Masoneilan 75000 Series tank drain valve, Masoneilan 71000 Series streamlined angle valve and Masoneilan 74000 Series heavy oil valve.
Request a Quote for Masoneilan 73000
To request pricing or technical support for the Masoneilan 73000 Series, send a formal RFQ to the Seven Star LLC instrumentation division with your line size, rating, fluid and body-material requirements. We will confirm the configuration with Baker Hughes, check regional warehouse availability for seat rings, packing and gaskets, and provide the instruction manual for download from this page. In Oman and the GCC, Seven Star LLC delivers genuine valves with manufacturer documentation, warranty coverage and local technical support.
