Masoneilan LincolnLog 78400/18400 Series Anti-Cavitation Valve Seal Kit

Overview

The Masoneilan LincolnLog 78400/18400 Series is Baker Hughes’ anti-cavitation control valve platform for high-pressure-drop liquid service where uncontrolled cavitation would otherwise erode a conventional trim in months, using balanced and unbalanced hard-seat or soft-seat trim stages to dissipate energy progressively before flow reaches the outlet. Because that staged pressure letdown concentrates erosive energy right at the trim-to-body interface, the valve’s soft-good components – the body/bonnet metal seal and seat ring gaskets, the stem packing set, and, on balanced trims, the seal ring and backup rings that manage pressure equalization – wear out well before the forged body itself, and Baker Hughes engineers each rebuild kit against the specific size, trim balance, and packing type of the installed valve rather than a single stocked part number.

With engineering support in Muscat, Seven Star LLC supplies this Masoneilan LincolnLog 78400/18400 Series anti-cavitation valve seal kit to refineries, water injection facilities, and gas-processing plants across Oman and the wider GCC. Seven Star LLC’s instrumentation division confirms whether the valve is a standard or API 6A high-pressure variant, its trim balance, and its packing selection against the customer’s nameplate before every order, ensuring the metal seal, seat ring gaskets, packing, and seal/backup rings all arrive matched to the actual installed valve.

Operating Principle

The Masoneilan LincolnLog 78400/18400 Series throttles high-pressure-drop liquid through a hard-seat or soft-seat trim stack designed to break the pressure drop into stages so that cavitation, when it occurs, collapses away from any metal surface rather than against the seat or body wall. On balanced trim configurations, a seal ring and backup rings equalize pressure across the plug so the actuator does not have to overcome full unbalanced thrust, and these rings compression-set and extrude over repeated high-differential cycles exactly the way any soft seal does under cyclic load, opening internal leak paths long before the hardened seat and plug show measurable wear. The body/bonnet joint on standard (non-API 6A) valves is closed by a metal seal together with multiple seat ring gaskets positioned at each trim stage for 3-inch and larger valves, every one of which Baker Hughes’ own manual calls out to be renewed at disassembly since a gasket that has already taken a compression set will not reseal reliably when the bonnet is re-torqued.

Stem sealing follows the same family used across Masoneilan’s globe platforms – braided PTFE with a carbon or aramid core in skive-cut form for replacement without stem separation, flexible graphite with backup rings for service above the roughly 450°F/232°C practical limit of PTFE, or live-loaded Low-E packing for fugitive-emission compliance – while the API 6A high-pressure variant of the 78400/18400 Series replaces the packing box entirely with dynamic and static lip seals and uses a VG-type metal seal between body and bonnet, a fundamentally different sealing philosophy that means an API 6A rebuild kit is never interchangeable with a standard LincolnLog kit even on the same nominal size.

Engineering Design of the Masoneilan LincolnLog 78400/18400 Series

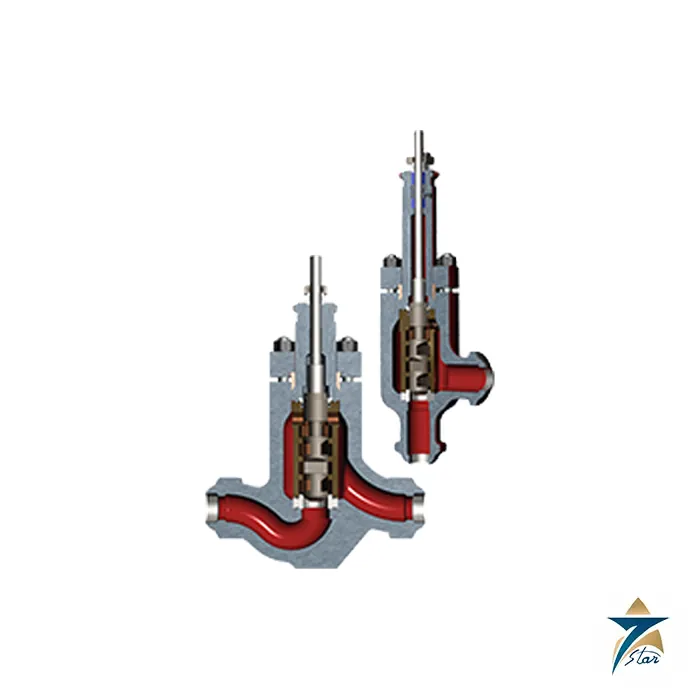

The Masoneilan LincolnLog 78400/18400 Series is built on a heavy forged or cast body engineered for erosive, high-pressure-drop liquid letdown, offered in standard sizes from 1 to 8 inches, and in an API 6A high-pressure configuration from 1 to 6 inches rated to 10,000 and 15,000 psi for wellhead and production applications. The plug and stem assembly is typically hardened 440C stainless steel, selected specifically because it cannot be machined or re-drilled once hardened, which is why worn plug/stem assemblies on this platform are replaced rather than refurbished while the surrounding seal and packing components are renewed on the same rebuild cycle.

Seven Star LLC packages the LincolnLog seal kit to the customer’s confirmed standard or API 6A configuration, trim balance, and packing selection, supplying the body/bonnet metal seal, seat ring gaskets, seal ring and backup rings for balanced trims, and either the packing set or the lip-seal hardware as applicable – a distinction that matters because ordering the wrong sealing philosophy for an API 6A valve leaves the rebuild unusable in the field.

Key Features

This Masoneilan LincolnLog 78400/18400 Series kit is engineered to restore full containment on an in-service anti-cavitation valve, and every Masoneilan LincolnLog 78400/18400 Series kit is verified against the confirmed nameplate before dispatch. Key features include:

• Body/bonnet metal seal and seat ring gaskets engineered to the confirmed standard or API 6A configuration of the customer’s LincolnLog valve.
• Seal ring and backup ring sets for balanced-trim variants that manage pressure equalization across the plug.
• Choice of braided PTFE, flexible graphite, or live-loaded Low-E packing for standard valves, matched to service temperature.
• Dynamic and static lip-seal hardware for API 6A high-pressure LincolnLog variants, in place of a conventional packing box.
• Kit contents cross-checked against the current Baker Hughes 78400/18400 LincolnLog instruction manual before dispatch.
• Covers both standard sizes (1–8 inch) and API 6A high-pressure sizes (1–6 inch, 10K/15K psi).
• Supplied with reassembly guidance covering seat ring gasket placement at each trim stage.
• Common packing and seal-ring variants sourced on request by Seven Star LLC, with lead time confirmed at quotation for planned outages.

Industrial Applications

The Masoneilan LincolnLog 78400/18400 Series is deployed across Middle East oil and gas production wherever high-pressure-drop liquid must be let down without cavitation damage – water injection systems, choke and production manifolds, and high-differential process letdown in refineries and gas-processing plants. Facilities around Muscat, Sohar, and the Salalah free zone that operate water injection and production letdown skids schedule Masoneilan LincolnLog 78400/18400 Series seal-ring and packing rebuilds into planned shutdowns, since a valve that begins to cavitate against a worn seal ring or backup ring can erode its own seat within weeks in continuous injection service.

Backed by genuine manufacturer documentation, Seven Star LLC supplies this Masoneilan LincolnLog 78400/18400 Series seal kit to reliability and production teams across the Sultanate of Oman and the broader GCC, supporting upstream production facilities and water injection plants that rely on this platform’s staged anti-cavitation trim to protect downstream piping from erosive damage. Seven Star LLC’s manufacturer-verified sourcing lets plant engineers plan a LincolnLog rebuild with confidence that the trim balance and sealing philosophy supplied match the actual installed valve.

Technical Specifications

Representative build data for the Masoneilan LincolnLog 78400/18400 Series platform this kit is engineered to match:

Request a Quote for Masoneilan LincolnLog 78400/18400 Series Anti-Cavitation Valve Seal Kit

Seven Star LLC invites facility engineers, procurement leads, and maintenance planners across Oman and the GCC to submit a formal RFQ for the Masoneilan LincolnLog 78400/18400 Series valve seal kit with the valve’s confirmed standard or API 6A configuration, trim balance, and packing type, so the correct kit is engineered without guesswork. Seven Star LLC sources common LincolnLog soft-good variants to order, can furnish the current Baker Hughes technical datasheet on request, and can connect customers with its instrumentation division for turnaround planning. Working closely with plant engineers in the region, Seven Star LLC backs every LincolnLog 78400/18400 Series kit with manufacturer traceability and warranty support.
