Masoneilan 31000 Series PFA-Lined Eccentric Rotary Control Valve

Overview

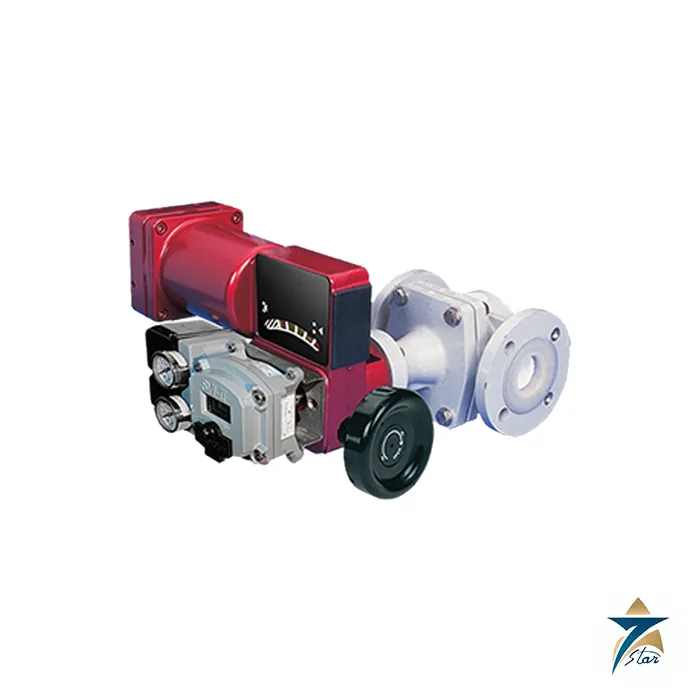

The Masoneilan 31000 Series is a PFA-lined, eccentric rotary plug control valve from Baker Hughes Masoneilan, developed for services in which an unlined metal body would not survive the process fluid. Instead of asking a metallic trim to resist corrosion, the valve wraps the flow path in a melt-processed PFA lining with a guaranteed minimum wall thickness, and keeps the metal body purely as the pressure-bearing structure. The result is a compact throttling valve with a straight-through flow pattern, a plug that swings on an eccentric axis, and wetted surfaces that are fluoropolymer from the inlet flange to the outlet flange.

In Oman and the GCC, Seven Star LLC proudly supplies the Masoneilan 31000 to chemical, petrochemical and process plants across the Sultanate of Oman and the wider GCC. Orders are supported with genuine Baker Hughes documentation, and our instrumentation division in Muscat helps maintenance and project engineers confirm size, seat material, actuator action and options before an RFQ is issued.

Operating Principle of the Eccentric Rotary Plug

In the Masoneilan 31000 the plug does not lift off its seat the way a globe valve plug does. It rotates around a shaft that is offset from the seat centre, so the plug sweeps away from the seat as soon as it begins to move and swings back into contact only at the very end of the stroke. That eccentric motion keeps friction low during throttling and produces the low dynamic forces and tight shut-off that Baker Hughes lists among the valve’s performance features. In the Masoneilan 31000 the flow passes straight through the body, which gives the high flow capacities a compact rotary design is chosen for. The published inherent characteristic is modified linear, and the rated Cv ratio is 80:1.

Flow direction is flow to close. The seat ring is conical, made from virgin PTFE and sealed with an O-ring, and the plug itself is stainless steel encapsulated in PFA, so the part that moves in the process fluid is as chemically inert as the lining around it. Because the Masoneilan 31000 rotary design wears the shaft packing less than a typical linear stem valve, the standard PTFE and graphite chevron packing, backed up by a double O-ring follower, is the manufacturer’s answer to fugitive emissions in corrosive duty.

Engineering Design of the Masoneilan 31000

The body and bonnet are one-piece, top-entry, self-flushing castings in heat-treated nodular ductile iron to ASTM A395, lined with PFA and finished outside with an epoxy coating. The lining is mechanically locked into the metal through dovetail grooves, a detail that matters when the line sees vacuum or elevated temperature, because it stops the liner from lifting away from the casting. The bonnet is through-bolted, and a steam or hot-water jacket, an antistatic lining material, a leak detector connection or a flushing connection can be specified as options.

Standard actuation is the Model 35 spring-opposed rolling diaphragm actuator, a field-proven design that provides positive fail-safe action. Its linkage is fully enclosed and it carries a combination handwheel and adjustable limit stop with a locking mechanism; an auxiliary handwheel and limit-stop actuator (Model 20) is available as an option. Actuator mounting is parallel to the pipeline with either air-to-close or air-to-open action. Valve weights, including the handwheel, are 18 kg for the 1 inch size, 27 kg for 2 inch and 44 kg for 3 inch, so the Masoneilan 31000 can be installed and removed without imposing heavy piping forces.

Key Features

The following characteristics, taken from the Baker Hughes technical specifications, explain why the Masoneilan 31000 is selected for corrosive lines that need real throttling rather than on-off isolation:

• A PFA lining with a guaranteed minimum wall thickness gives the wetted path resistance to most corrosive fluids.
• The eccentric plug swings clear of the seat during travel, which limits friction and gives accurate throttling control with low dynamic forces.
• Seat leakage is rated Class VI according to IEC 534-4 and ASME/FCI 70.2, using a virgin PTFE seat ring sealed with an O-ring.
• Dovetail grooves anchor the lining to the metal body so that it holds up under vacuum and at high temperature.
• PTFE and graphite chevron packing with a double O-ring follower supports reduced fugitive emissions on corrosive service.
• The rolling diaphragm actuator provides positive fail-safe action, with an enclosed linkage and a combination handwheel and limit stop.
• Full-capacity and reduced-capacity trims are available in every size, with rated Cv values from 1.2 to 260 and an FL factor of 0.64.
• The compact, low-weight body simplifies installation and removal without compromising piping forces.

Industrial Applications

Baker Hughes positions the Masoneilan 31000 for the chemical, petrochemical and pulp and paper industries, with distillation, hydroprocessing, reforming, cracking, secondary blending, quenching and fractioning, charge gas compression and separation listed as typical applications. In practical terms the Masoneilan 31000 belongs where acids, caustics, chlorinated streams or high-purity chemicals attack stainless trim and where the line size is small, between 1 and 3 inches. In Oman that profile matches specialty chemical blending, petrochemical side streams in the Sohar industrial area, and utility chemical dosing and neutralisation loops at industrial complexes in Salalah and Muscat.

In Oman and the GCC, Seven Star LLC distributes the Masoneilan 31000 together with the companion parts that keep it in service. Maintenance teams can order the matching Masoneilan 31000 Series seal kit from the same supplier, pair the valve with a Masoneilan SVI3 digital valve positioner where the control philosophy calls for it, and compare it with the metal-bodied Masoneilan 35002 Camflex rotary control valve when the fluid does not require a fluoropolymer lining.

Technical Specifications

The table below summarises the published data for the Masoneilan 31000 as given in the Baker Hughes technical specification, Rev. C. Please refer to the full document for the pressure and temperature chart, dimensions and the parts list.

Request a Quote for Masoneilan 31000
