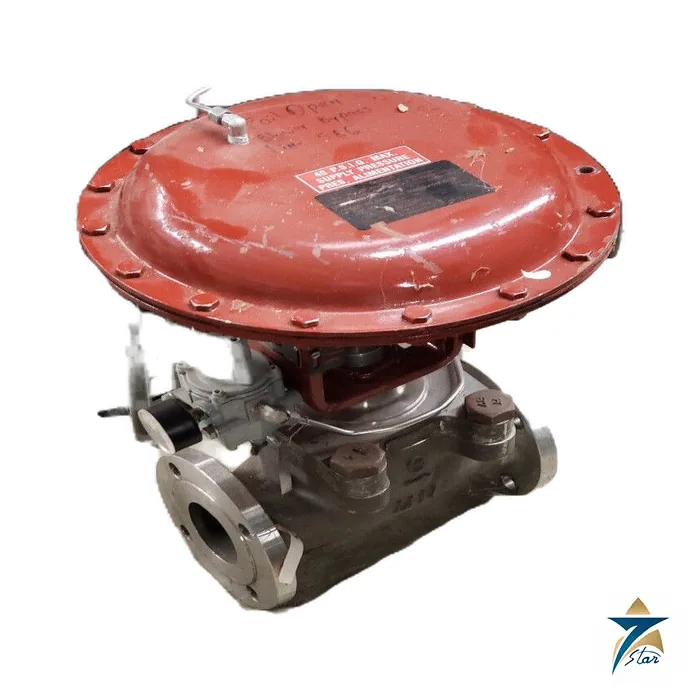

Masoneilan 88-41325 Class 300 Diaphragm Control Valve
Overview
The Masoneilan 88-41325 is a Class 300 globe control valve from Masoneilan’s proven 41000-series cage-guided platform, paired with a Type 87/88 pneumatic spring-diaphragm actuator for precise, repeatable throttling control in demanding industrial process applications. The 41005-series trim design delivers an equal-percentage flow characteristic that gives process engineers stable, predictable control across a wide operating range, from partial-load turndown through full flow capacity.
Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the Masoneilan 88-41325 control valve with full manufacturer traceability, genuine trim and actuator components, and documented warranty support. Refineries, power plants, and process facilities across Muscat, Sohar, and Salalah rely on Seven Star LLC to source authentic Masoneilan valves, avoiding the seat leakage and premature trim wear associated with counterfeit or reconditioned units from untrusted supply channels.
Operating Principle
The Masoneilan 88-41325 throttles process flow by positioning a cage-guided plug within a fixed cage and seat ring assembly, with the plug position determined by a pneumatic spring-diaphragm actuator responding to a 3-15 psi (or equivalent) control signal from the process control loop. As the diaphragm chamber pressure changes, the actuator stem moves the plug axially within the cage, progressively opening or restricting the flow path in direct proportion to the control signal.
Because the plug is guided within the cage rather than by the seat itself, the valve maintains stable, chatter-free positioning even under high pressure-drop or turbulent flow conditions, and the cage-guided design significantly reduces the vibration-induced wear that shortens the service life of less rigid trim geometries. The practical consequence for process operators is a control valve that holds its calibrated characteristic curve over years of continuous throttling duty, reducing the frequency of trim replacement and control loop retuning.
Engineering Design of the Masoneilan 88-41325
The Masoneilan 88-41325 combines a Class 300-rated cast valve body with a cage-guided trim assembly using a hardened plug and seat ring selected for the process fluid and pressure differential. The Type 87/88 spring-diaphragm actuator mounts directly atop the valve body via a standard yoke, providing fail-safe action (fail-open or fail-closed, per the specified configuration) in the event of loss of instrument air, a critical safety feature for process shutdown scenarios.
The actuator’s spring-opposed diaphragm design delivers smooth, hysteresis-minimized positioning without requiring electronic feedback in its base configuration, though the valve can be fitted with a digital positioner for tighter control accuracy where the application demands it. Flanged end connections rated to Class 300 pressure-temperature ratings ensure the valve integrates directly into high-pressure process piping without requiring adapter fittings.
Key Features
The Masoneilan 88-41325 combines rugged Class 300 construction with precise throttling control, and the following features summarize why process engineers specify this platform for critical control loops:
- Cage-guided trim design maintains stable plug positioning and resists vibration-induced wear under turbulent flow conditions.
- Equal-percentage flow characteristic delivers predictable control across a wide turndown range.
- Class 300 pressure rating supports high-pressure process applications without adapter fittings.
- Fail-safe spring-diaphragm actuation protects the process in the event of instrument air loss.
- Compatible with digital positioners for applications requiring tighter control accuracy.
- Hardened trim materials extend service life in erosive or high-pressure-drop service.
- Standard yoke-mounted actuator simplifies field maintenance and actuator replacement.
- Proven 41000-series platform backed by decades of Masoneilan field application history.
Industrial Applications
The Masoneilan 88-41325 is deployed across refinery process units, power generation steam and feedwater systems, and petrochemical plants where precise, reliable throttling control is essential to safe and efficient operation. In Oman, this valve class is commonly specified for refinery distillation column control loops, power plant boiler feedwater regulation, and district cooling plant high-pressure chilled water control at major industrial sites.
Working closely with plant engineers in the region, Seven Star LLC distributes the 88-41325 and its 41000-series family to EPC contractors and plant maintenance teams throughout the Sohar and Salalah economic zones, supporting both new project specification and like-for-like trim replacement on existing Masoneilan control valve populations across Muscat. The valve’s proven reliability under demanding pressure conditions makes it a standard specification for critical control applications throughout the GCC’s energy and process industries.
Technical Specifications
The table below summarizes the key operating parameters of the Masoneilan 88-41325 control valve.
| Parameter | Specification |
|---|---|
| Model | Masoneilan 88-41325 |
| Valve Type | Cage-guided globe control valve |
| Pressure Class | Class 300 |
| Flow Characteristic | Equal percentage |
| Actuator | Type 87/88 pneumatic spring-diaphragm |
| Actuation Signal | 3-15 psi (or equivalent) |
| Fail Action | Fail-open / fail-closed (configuration-dependent) |
| End Connections | Flanged, Class 300 rated |
| Application | Refinery, power generation, petrochemical process control |
Why Choose Seven Star LLC for Masoneilan Diaphragm Control Valves
A Class 300 diaphragm control valve’s trim material and diaphragm specification have to match the actual corrosive or abrasive characteristics of your process fluid, since a standard diaphragm exposed to an aggressive medium it was not designed for degrades quickly and can lead to an unplanned control loop failure. Seven Star LLC works with your process engineers to confirm the correct 88-41325 configuration against your specific process chemistry before order confirmation, drawing on our trusted Masoneilan suppliership across Oman and the wider GCC. We also support chemical and process plants across Muscat, Sohar, and Salalah with spare diaphragm and trim planning, keeping control valve maintenance predictable rather than reactive when a diaphragm reaches the end of its service life.
Request a Quote for Masoneilan 88-41325 Class 300 Diaphragm Control Valve
With fast quotation turnaround and technical support, Seven Star LLC supports formal RFQ submissions, confirms lead time at quotation, and can provide the full technical datasheet for the Masoneilan 88-41325 control valve on request. Contact the Seven Star LLC instrumentation division for genuine Masoneilan control valves, trim kits, and application engineering support across Muscat, Sohar, and Salalah.
Related Products
- Fisher 8580 High Performance Butterfly Valve
- Masoneilan 41005 Series Cage Guided Control Valve
- Masoneilan 172 Series Pressure Reducing Regulator (PCV 172-1203)
- KITZ DJ-Series Resilient-Seated Butterfly Valve
- Neles R-Series RE Segment Control Valve
- Masoneilan 80000 Series 3-Way Control Valve
- Masoneilan 80000 Series 3-Way Control Valve Seal Kit
- Masoneilan 49000 Series V-LOG Low-Noise Anti-Cavitation Valve Seal Kit
- Instruction Manual Masoneilan 88-41325 Class 300 Diaphragm Control Valve Manual Download
Masoneilan control valves and actuator series
The globe valve listing centers on the 21000 series, including the cryogenic version with extension bonnet, and the 41005 cage-guided series in high pressure, API 6A and VRT anti-cavitation executions. The 80385 and 80386 are three-way combining and diverting valves. Rotary products include the 35002 Camflex II and the 37002 MiniTork II butterfly control valve. Actuators cover spring-diaphragm, cylinder and rack-and-pinion designs, among them the 5A cylinder actuator for Camflex II. Masoneilan also makes pressure regulators, SVI digital valve positioners and displacer-type level instruments, and offers Lo-dB trim for noise control.Where Masoneilan valves are used
Throttling duty on steam, hydrocarbons, gas and water is the daily work of these valves: feedwater and steam conditioning in power plants, separator and compressor loops in gas processing, high pressure drop letdown, cryogenic service in LNG and air separation, and general flow, pressure and level control in refineries and chemical plants.Ordering Masoneilan valves and spare parts: what we need
For spare parts the serial number is decisive, since the factory record behind it lists trim, materials and actuator. Send a clear nameplate photo with serial number, model number, size and pressure class. For a new valve add the process data: fluid, inlet and outlet pressure, temperature, minimum, normal and maximum flow, required leakage class, fail position, air supply and control signal.Browse Masoneilan products by category: Control Valves, Valve Actuator, Regulators, Valve Positioner, Level Transmitter.
