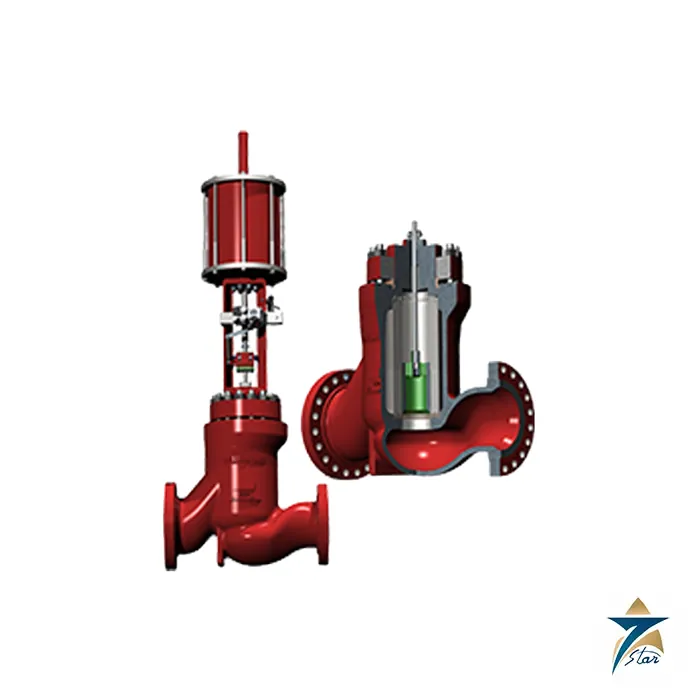

Masoneilan 49000 Series V-LOG Low-Noise Anti-Cavitation Valve Seal Kit

Overview

The Masoneilan 49000 Series V-LOG is Baker Hughes’ low-noise, anti-cavitation control valve built around a multi-stage V-LOG stack cage that breaks high-pressure-drop gas and liquid flow into a series of tortuous small passages, dramatically cutting the acoustic energy and cavitation damage that a conventional single-stage trim would generate at the same pressure drop. Because the V-LOG stack is engineered to survive that severe service far longer than the surrounding soft goods, the valve’s actual maintenance history is dominated by the body/bonnet and cage gaskets, the stem packing set, and, on high-temperature variants, the metal seal rings that replace elastomeric sealing where process temperature rules it out. Baker Hughes engineers each Masoneilan 49000 Series V-LOG seal kit against the confirmed cage configuration, bonnet style, and packing selection rather than a single stocked part number.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies this Masoneilan 49000 Series V-LOG low-noise anti-cavitation valve seal kit to gas-processing plants, compressor stations, and high-pressure letdown facilities across Oman and the wider GCC. Seven Star LLC’s instrumentation division confirms the bonnet configuration (single- or two-piece), packing type, and seal ring material against the customer’s nameplate before every order, ensuring the gaskets, packing, and seal hardware all arrive matched to the actual installed valve.

Operating Principle

The Masoneilan 49000 Series V-LOG achieves its noise and cavitation reduction by forcing flow through a stacked cage of many small, staggered passages rather than a single flow-control orifice, so that the total pressure drop is dissipated across dozens of small drops instead of one large one; this staged energy dissipation is what keeps acoustic output and cavitation damage well below what a conventional trim would produce at the same differential pressure. Stem sealing follows the same family used across Masoneilan’s globe platforms: carbon/PTFE and pure PTFE packing rings cut so they can be replaced without separating the valve plug stem from the actuator stem, or graphite packing requiring stem separation and a carbon/graphite/Inconel braided backup ring. For high-temperature service beyond the practical limit of elastomers and PTFE, metal seal rings with inner and outer ring components replace the standard packing arrangement, installed with a Dow Corning 111 or equivalent lubricant to ensure proper seating on assembly.

Between body and bonnet, and again at the cage retainer, spiral-wound gaskets close the pressure-containing joints and must always be replaced after disassembly, since a gasket that has already taken a compression set will not reseal reliably when the bonnet or cage is re-torqued; the manufacturer’s manual is explicit that these gaskets are never reused. Rebuilding a Masoneilan 49000 Series V-LOG valve with a correctly matched gasket, packing, and seal ring set restores full external containment without disturbing the internal V-LOG stack, which is designed to remain in service across multiple soft-good rebuild cycles.

Engineering Design of the Masoneilan 49000 Series V-LOG

The Masoneilan 49000 Series V-LOG is built in sizes from 3 to 30 inches, rated to ASME 600, 1500, and 2500 pound pressure classes, and offered in both single-piece and two-piece bonnet configurations depending on cage stack length and service requirements. Body materials include carbon steel, chrome-moly, stainless steel, and duplex alloys, selected against the process fluid and temperature, while the V-LOG stack itself is fitted into the body as a discrete cage assembly that can be serviced independently of the body-to-pipe connection.

Seven Star LLC packages the 49000 Series V-LOG seal kit to the customer’s confirmed bonnet configuration, packing type, and seal ring material, supplying the spiral-wound gaskets, packing rings or metal seal ring set, and correct lubricant recommendation, so plant maintenance teams can complete a full stem-seal and gasket rebuild during a scheduled outage without discovering a packing mismatch mid-job.

Key Features

This Masoneilan 49000 Series V-LOG kit is engineered to restore full containment on an in-service low-noise anti-cavitation valve. Key features include:

• Spiral-wound body/bonnet and cage retainer gaskets engineered to the confirmed configuration of the customer’s Masoneilan 49000 Series V-LOG valve.
• Carbon/PTFE and pure PTFE packing rings cut for replacement without stem separation, or graphite packing with Inconel braided backup rings.
• Metal seal ring option with inner and outer ring components for high-temperature service beyond elastomer and PTFE limits.
• Correct lubricant specification (Dow Corning 111 or equivalent) supplied with metal seal ring configurations.
• Compatible with both single-piece and two-piece bonnet configurations used across this platform.
• Covers the full 3–30 inch size range across ASME 600, 1500, and 2500 pressure classes.
• Kit contents cross-checked against the current Baker Hughes 49000 Series V-LOG instruction manual before dispatch.
• Supplied with reassembly guidance covering gasket torque sequence and packing ring installation order.

Industrial Applications

The Masoneilan 49000 Series V-LOG is deployed across Middle East gas processing and high-pressure letdown applications wherever noise and cavitation must be controlled at a large pressure drop – compressor anti-surge and recycle systems, gas plant letdown stations, and high-differential process control on refining and petrochemical units. Facilities around Muscat, Sohar, and the Salalah free zone running high-noise-risk letdown service schedule Masoneilan 49000 Series V-LOG gasket and packing rebuilds into planned turnarounds, since the multi-stage cage itself typically outlasts several cycles of the surrounding soft-good seals.

With fast quotation turnaround and technical support, Seven Star LLC distributes this Masoneilan 49000 Series V-LOG seal kit to reliability and instrumentation teams across the Sultanate of Oman and the broader GCC, supporting gas-processing and petrochemical facilities that depend on this platform’s stacked-cage trim for low-noise, cavitation-resistant pressure control. Seven Star LLC’s manufacturer-verified sourcing ensures the correct bonnet, packing, and seal ring configuration are supplied for the confirmed valve.

Technical Specifications

Representative build data for the Masoneilan 49000 Series V-LOG platform this kit is engineered to match:

Request a Quote for Masoneilan 49000 Series V-LOG Low-Noise Anti-Cavitation Valve Seal Kit

Seven Star LLC invites facility engineers, procurement leads, and maintenance planners across Oman and the GCC to submit a formal RFQ for the Masoneilan 49000 Series V-LOG valve seal kit with the valve’s confirmed bonnet configuration, packing type, and seal ring material, so the correct kit is engineered without guesswork. Seven Star LLC sources common V-LOG soft-good variants to order, can furnish the current Baker Hughes technical datasheet on request, and can connect customers with its instrumentation division for turnaround planning. With engineering support in Muscat, Seven Star LLC supplies every Masoneilan 49000 Series V-LOG kit on request with manufacturer documentation.
