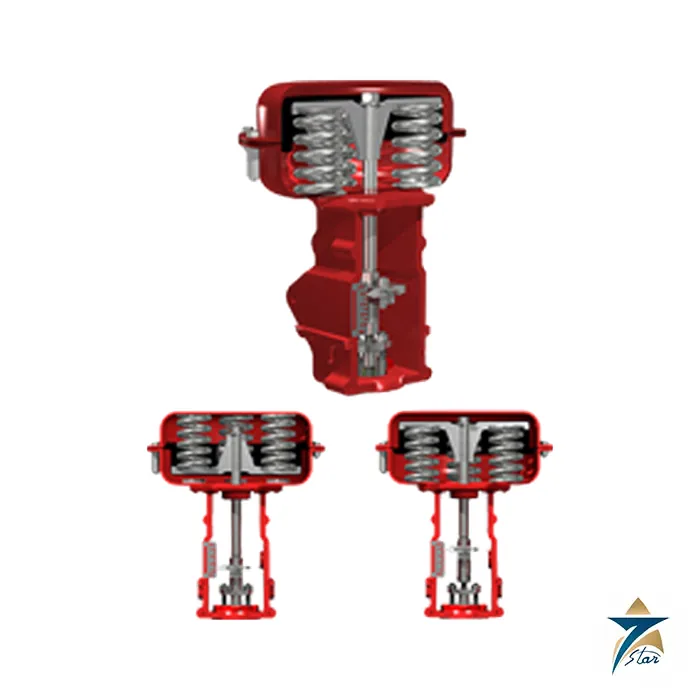

Masoneilan 88-18433 Type 88 Pneumatic Spring-Diaphragm Actuator

Overview

The Masoneilan 88-18433 is a genuine Type 88 pneumatic spring-diaphragm actuator from the Masoneilan 87/88 Series, the workhorse actuator platform that Baker Hughes’ Masoneilan brand has supplied to globe control valve installations across power generation, refining, petrochemical, and oil & gas facilities for decades. Configured as an air-to-open, fail-closed unit, the 88-18433 converts regulated instrument air pressure into precise, repeatable linear stem thrust, driving the valve plug through its full travel while a stack of pre-loaded compression springs provides fail-safe closing action the instant supply air is lost. Its multi-spring diaphragm design, cast iron yoke, and stainless steel stem hardware are engineered for continuous duty in demanding process environments, from low differential-pressure trim applications through high pressure-drop severe service.

With engineering support in Muscat, Seven Star LLC supplies the 88-18433 actuator to process plants, refineries, and utility operators across the Sultanate of Oman and the wider GCC.Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation.

Operating Principle

The Type 88 actuator operates on a direct pneumatic spring-opposed diaphragm principle. Regulated air supply, typically up to 60 psi (4.1 bar) depending on spring range, is admitted to the upper diaphragm case, where it acts across a Buna-N/polyester diaphragm plate to generate downward force against the pre-compressed spring stack mounted in the lower case. As supply pressure increases, the diaphragm plate and actuator stem travel downward, opening the valve; as air pressure is bled off, the springs drive the stem back to its normally closed position, giving the assembly its air-to-open, fail-closed behavior. Actuator sizing (spring effective areas from 60 to 230 sq. in.) and spring range selection (3-15, 6-30, 11-23, and 21-45 psi variants) together determine bench set, stroking speed, and seating thrust for a given valve body and trim combination.

The Masoneilan 88-18433 relies on this principle throughout its service life: because the actuating force is generated directly by clean instrument air acting on a diaphragm, rather than through hydraulic fluid or an electric motor, the mechanism is inherently simple, low-maintenance, and immune to the contamination and leakage risks associated with more complex actuation technologies. The fail-safe spring return requires no auxiliary power reserve, batteries, or accumulator, which is precisely why spring-diaphragm actuators such as the 88-18433 remain the default choice for critical shutoff and modulating service where loss of instrument air must always drive the valve to its safe position.

Engineering Design of the Masoneilan 88-18433

Mechanically, the Masoneilan 88-18433 actuator is built around a cast iron (ASTM A216 Gr. WCC) yoke that rigidly couples the upper and lower diaphragm cases to the valve bonnet, maintaining stem alignment under full seating load. The stainless steel actuator stem, PTFE/steel bushing, and polyurethane stem wiper combine to give smooth, low-friction travel while excluding dust and moisture ingress from the working environment – an important consideration for actuators installed outdoors in Gulf coastal and desert conditions. A stainless steel travel scale and pointer give a direct visual read of stem position at the yoke, and standard 1/4 in. NPT air connections (1/2 in. NPT on larger frames) allow straightforward integration with pneumatic positioners, solenoid valves, and volume boosters.

The Masoneilan 88-18433 is available with an optional handwheel for manual valve positioning during commissioning, maintenance, or instrument air outages, engaging directly with the stem through a traveling nut and lever mechanism without requiring actuator disassembly. Standard and extended-temperature material sets (down to -50°C / -58°F on ultra-low temperature builds) allow the same actuator platform to be specified across a wide range of ambient and process conditions, and every diaphragm case, spring set, and elastomer is sourced to the exact Baker Hughes Masoneilan bill of materials, ensuring the 88-18433 mounts and performs as a like-for-like replacement on existing 87/88 Series valve assemblies.

Key Features

The Masoneilan 88-18433 actuator brings together proven mechanical simplicity with the durability process plants expect from an OEM-certified spring-diaphragm design:

• The Masoneilan 88-18433 provides air-to-open, fail-closed (Type 88) spring-diaphragm operation delivers automatic safe-position closure on loss of instrument air supply.
• Multi-spring lower-case construction (3-15, 6-30, 11-23, and 21-45 psi ranges) allows precise bench set matching to the mated valve body and trim.
• Cast iron yoke and stainless steel stem hardware provide rigid alignment and long service life under continuous cycling.
• Standard 60 psi (4.1 bar) maximum air supply rating suits typical plant instrument air systems without special boosters.
• Optional handwheel enables manual stem positioning for commissioning, maintenance, and instrument air loss scenarios.
• Stainless steel travel indicator and pointer give an immediate visual confirmation of actual valve position at the yoke.
• Extended and ultra-low temperature material options extend service range from -50°C to 100°C for varied climate and process duty.
• Direct compatibility with the full 87/88 Series actuator sizes (6, 10, 16, 23, and 23L) simplifies spares planning and stock rationalization.

Industrial Applications

The Masoneilan 88-18433 Type 88 actuator is specified wherever a globe control valve – the Masoneilan 88-18433 configuration in particular must respond reliably to modulating or on/off pneumatic control signals while guaranteeing a defined fail-safe position. Typical duty includes steam turbine generator and condenser control, boiler feedwater and drum level valves, distillation and hydroprocessing trim in refineries, charge gas compression and separation services in midstream gas plants, and cooling tower and balance-of-plant systems in combined-cycle power stations. Its robust construction and simple air-only actuation make it equally suited to remote pipeline stations and unmanned facilities where electrical actuation is impractical.

Backed by manufacturer datasheet documentation, Seven Star LLC distributes the 88-18433 actuator to EPC contractors, refinery maintenance teams, and utility operators throughout Oman and the GCC, including projects in the Sohar and Salalah free zones, Muscat-area power and desalination plants, and upstream facilities across the interior. Sourcing on request, with lead time confirmed at quotation, helps plants plan fail-safe actuation hardware around turnaround and shutdown schedules.

Technical Specifications

The table below summarizes the core specifications of the Masoneilan 88-18433 Type 88 pneumatic spring-diaphragm actuator, confirming the Masoneilan 88-18433 build standard as documented by Baker Hughes Masoneilan.

Request a Quote for Masoneilan 88-18433 Type 88 Pneumatic Spring-Diaphragm Actuator

For the Masoneilan 88-18433, Seven Star LLC invites process engineers, procurement teams, and maintenance planners in Oman and across the GCC to request a formal quotation for the Masoneilan 88-18433 Type 88 actuator. Working closely with plant engineers in the region, Seven Star LLC supplies to order, provides full technical datasheets on request, and connects customers directly with the instrumentation division for application sizing, spring-range selection, and spare-parts planning.
