Masoneilan 75000 Series Tank Drain and Level Control Valve
Overview
The Masoneilan 75000 Series is an erosion- and flashing-resistant tank level control valve from Baker Hughes, designed primarily for level control and tank drain duty with the corrosive or viscous fluids found in the PTA (purified terephthalic acid) chemical industry. In that process, slurries crystallize inside vessels and can form a solid layer at the drain connection; the Masoneilan 75000 is built to throttle through that layer rather than clog. The series has a long record in highly corrosive and erosive applications and is typically mounted directly on the side or bottom of the tank.
In Oman and the GCC, Seven Star LLC proudly supplies the Masoneilan 75000 Series Tank Drain and Level Control Valve to chemical, petrochemical and process-industry projects across the Sultanate of Oman and the wider GCC. Our Muscat instrumentation and valve engineers help project teams confirm body angle, material and actuator for each tank connection, and the Baker Hughes technical specification is available for download from this page.
Operating Principle

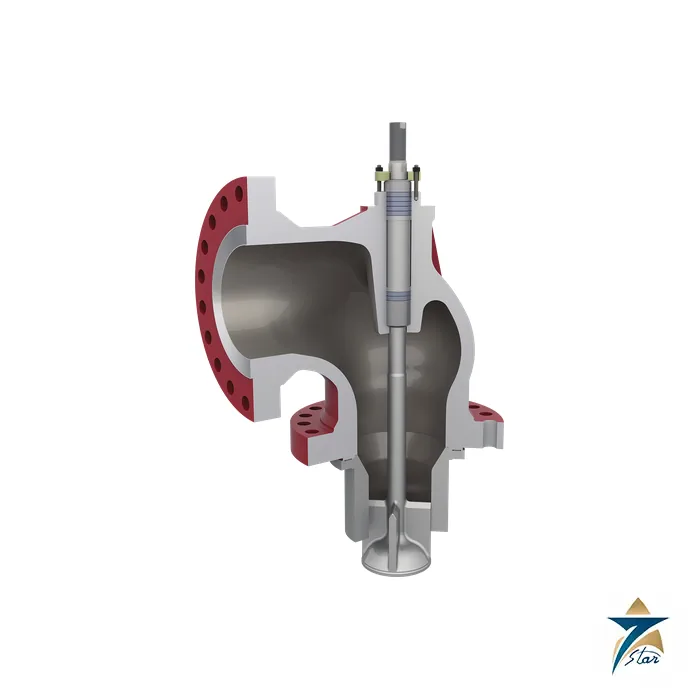

The Masoneilan 75000 uses a fully ported sweep angle body with a contoured gallery that reduces body pressure losses and helps mitigate erosion from direct impingement of particles in the flow path. The large, low-velocity gallery keeps particles from striking the trim directly. The plug and stem are a single piece, with a robust surface and guiding fins, and the plug length is custom designed so that the seat sits flush with the inside of the tank shell; with high-force actuation, the plug can break across a solid layer of crystallized fluid that has built up in the tank.
Guiding is heavy. The stem is guided at the top through a stem bearing, and the plug is port guided with flutes along its full stroke length, which reduces trim vibration and fatigue and extends installed life under severe service. The packing is a wiper design for low-friction throttling, and optional flushing and purge ports keep slurry away from the guiding area. Flow can run flow-to-open (filling) or flow-to-close (draining), and the characteristic is linear with a Cv ratio of 50:1.
Engineering Design of the Masoneilan 75000
The Masoneilan 75000 Series is a cast angle body in 90, 120 and 135 degree sweep configurations with a split-body design and bottom-entry trim access, so no separate bonnet is needed; this removes weight and saves space in tight tank-side installations. The technical specification lists sizes from 1 to 18 inches (DN 25 to 450), ASME Class 150 to 1500 with raised-face or ring-type joint flanges (Class 900 to 1500 from 2-inch sizes), and a temperature range from −29°C to 360°C (−20°F to 680°F). The latest design adds extended guiding along the stem and plug to support the heavy plug in horizontal installations.
Body materials are 316 stainless steel, 304 stainless steel, duplex stainless steel, titanium and Hastelloy C, selected to suit the corrosive service; a typical PTA process diagram in the specification shows valves in titanium, Hastelloy and stainless steel in different stages of the process. The seat ring is a quick-change, single-seating-surface design, standard seat leakage is Class IV with Class V available through high-thrust actuation, and actuation is by Model 51/52/53 piston actuators with an optional handwheel or hydraulic hand jack. Steam jacket options (semi or full) and an extension bonnet are listed in the numbering system.
Key Features
These features set the Masoneilan 75000 apart from a general tank outlet valve:
- A fully ported sweep angle body with contoured gallery lowers pressure loss and reduces erosion from direct particle impingement.
- A one-piece plug and stem with guiding fins is designed to break through crystallized layers when driven by a high-force actuator.
- Heavy top guiding through a stem bearing, with full-stroke port guiding, reduces trim vibration and fatigue.
- Body angles of 90, 120 and 135 degrees ease piping hook-up in tight tank-mounted spaces.
- A split-body design with bottom-entry trim access eliminates a separate bonnet and its weight.
- Stainless steel, duplex stainless steel, titanium and Hastelloy C materials suit highly corrosive process streams.
- Flushing and purge ports and a wiper-type packing keep slurry away from the guiding area.
- Plug length is custom designed so the seat is flush with the tank shell.
Industrial Applications
Baker Hughes names tank level control, reactor level control, tank bottom drain, erosive slurry and crystallizing fluid control as the applications for the Masoneilan 75000, and the PTA and petrochemical industries as its home sectors. A typical PTA plant moves terephthalic acid slurry through oxidation crystallizers, purification crystallizers and a hydrogenation reactor, and level in each vessel has to be controlled with a valve that will not plug when the slurry crystallizes. Where chemical and petrochemical developments in Oman, including those in the Sohar and Salalah zones, involve corrosive or crystallizing slurries, the same valve geometry applies.
In Oman and the GCC, Seven Star LLC supplies the Masoneilan 75000 Series to EPC contractors, chemical plant operators and maintenance teams throughout Oman and the GCC, including facilities in the Sohar and Salalah economic zones. We also supply Type 51/52/53 piston actuators, the SVI3 digital valve positioner and, for other severe-service loops in the same plant, the Masoneilan 41005 cage-guided control valve.
Technical Specifications
The table below summarizes the data published for the Masoneilan 75000 in the Baker Hughes Masoneilan technical specification and fact sheet. The Baker Hughes product page also mentions spring-diaphragm actuators, so the actuator selection for a particular order is confirmed with the factory.
| Parameter | Specification |
|---|---|
| Model | Masoneilan 75000 Series tank drain and level control valve (sweep angle) |
| Body type | Cast angle, 90, 120 or 135 degree; split body, no separate bonnet |
| Sizes | 1 to 18 in (DN 25 to 450) |
| Ratings | ASME Class 150 to 1500 (Class 900 to 1500 from 2 in) |
| End connections | Flanged, RF or RTJ (ASME B16.5) |
| Body materials | 316 stainless steel, 304 stainless steel, duplex stainless steel, titanium, Hastelloy C |
| Temperature range | −29°C to 360°C (−20°F to 680°F) |
| Trim | Heavy-duty single-seat plug, one-piece plug and stem, top and bottom guided, quick-change seat ring |
| Flow characteristic | Linear; Cv ratio 50:1 |
| Seat leakage | Class IV; Class V with high-thrust actuation |
| Actuation | Piston actuator 51/52/53; optional handwheel or hydraulic hand jack |
| Options | Flushing and purge ports, steam jacket, extension bonnet |
Related Masoneilan sweep angle valves include the Masoneilan 73000 Series sweep angle valve, Masoneilan 74000 Series heavy oil valve and Masoneilan 21000 Series top-guided globe valve.
Request a Quote for Masoneilan 75000
Chemical and petrochemical teams in Oman and across the GCC can submit a formal RFQ to Seven Star LLC for the Masoneilan 75000 Series, with tank geometry, body angle, material, plug length and actuator confirmed against your process data. We coordinate with Baker Hughes on configuration and lead time and provide the technical specification for download from this page. In Oman and the GCC, Seven Star LLC supplies every valve with manufacturer documentation and local technical support.
- Datasheet Masoneilan 75000 Series Technical Specifications Datasheet Download
Masoneilan control valves and actuator series
The globe valve listing centers on the 21000 series, including the cryogenic version with extension bonnet, and the 41005 cage-guided series in high pressure, API 6A and VRT anti-cavitation executions. The 80385 and 80386 are three-way combining and diverting valves. Rotary products include the 35002 Camflex II and the 37002 MiniTork II butterfly control valve. Actuators cover spring-diaphragm, cylinder and rack-and-pinion designs, among them the 5A cylinder actuator for Camflex II. Masoneilan also makes pressure regulators, SVI digital valve positioners and displacer-type level instruments, and offers Lo-dB trim for noise control.Where Masoneilan valves are used
Throttling duty on steam, hydrocarbons, gas and water is the daily work of these valves: feedwater and steam conditioning in power plants, separator and compressor loops in gas processing, high pressure drop letdown, cryogenic service in LNG and air separation, and general flow, pressure and level control in refineries and chemical plants.Ordering Masoneilan valves and spare parts: what we need
For spare parts the serial number is decisive, since the factory record behind it lists trim, materials and actuator. Send a clear nameplate photo with serial number, model number, size and pressure class. For a new valve add the process data: fluid, inlet and outlet pressure, temperature, minimum, normal and maximum flow, required leakage class, fail position, air supply and control signal.Browse Masoneilan products by category: Control Valves, Valve Actuator, Regulators, Valve Positioner, Level Transmitter.
