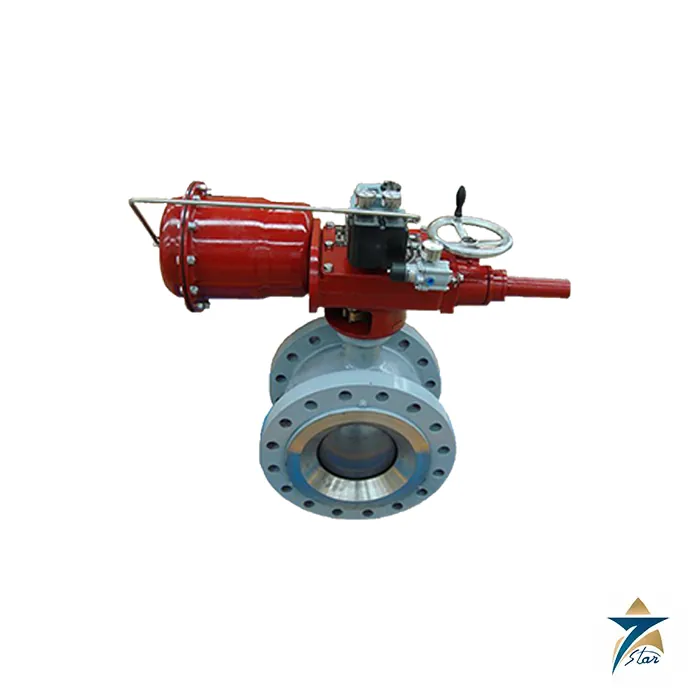

Masoneilan 36005 Series V-Max High-Capacity Control Ball Valve

Overview

The Masoneilan 36005 Series V-Max is a high-capacity control ball valve from Baker Hughes Masoneilan, and the key word in that description is control. Many high-capacity ball valve designs reach their flow ratings by giving up throttling accuracy, which leaves them suitable for on-off duty but poor at holding a setpoint. The V-Max was engineered the other way round: a V-ported, segmented ball with a patented dual-characterized profile that delivers very high Cv values while keeping an equal percentage flow characteristic and a rangeability the manufacturer states as greater than 500:1. For plants that need big flow and fine control in the same line, that combination is the reason to specify it.

In Oman and the GCC, Seven Star LLC proudly supplies the Masoneilan 36005 to refineries, petrochemical complexes and process industries across the Sultanate of Oman and the wider GCC. Our instrumentation division in Muscat supports sizing review, seat selection and actuator pairing, and every valve is supplied with genuine Baker Hughes documentation and warranty backing.

Operating Principle of the Dual-Characterized V-Port Ball

The throttling element in the Masoneilan 36005 is a segmented ball whose edge is contoured into a V shape. As the ball rotates, the V-port opens progressively against a seal ring, so the flow area changes smoothly instead of jumping from closed to a large opening, which is what gives a ball valve its usual poor control resolution at low lift. Baker Hughes describes the profile as dual-characterized: it combines an equal percentage flow characteristic with high capacity, so equal increments of travel give equal percentage changes in flow, and the large straight-through passage keeps pressure losses low when the valve is wide open.

The flow direction of the Masoneilan 36005 is flow to open. The ball is 317 stainless steel with a hard chrome plating, carried on sealed radial ball bearings, and driven through full involute spline connections on the plug, shaft and actuator. Those splines virtually eliminate backlash, which matters for a control valve because dead band between actuator and ball would show up directly as poor loop performance. The Masoneilan 36005 rated capacity ranges from a Cv of 55 on the 1 inch valve to 4,400 on the 12 inch valve.

Engineering Design of the Masoneilan 36005

The body is cast with an integral bonnet in carbon steel or stainless steel, and it has integrally cast raised-face flanges to ASME Class 150 or 300, so the valve bolts between pipeline flanges without the long tie rods a wafer design needs. Two face-to-face dimensions are offered: the standard construction follows ISA S75.04 and IEC 534-3-2, and a short pattern follows ASME B16.10 for Class 150. The choice lets the same valve platform be matched to the laying length that the piping design calls for.

Three seal ring types let the Masoneilan 36005 be matched to the duty. The MN-7 seal ring, a polymeric reinforced PTFE, provides Class VI shut-off with low friction. A strain-hardened 316 stainless steel seal ring provides Class IV shut-off and, combined with a high-temperature package of metal seal ring, bearings and flexible graphite packing, raises the fluid temperature limit to 316 °C (600 °F) in lubricated service. For harsh duty in sizes 1 to 4 inch, an optional heavy-duty metal seal ring in Nitronic 60 offers bi-directional flow and Class IV shut-off with a 260 °C (500 °F) limit. Replacing a seal ring on the Masoneilan 36005 requires removing only two machine screws on the inlet flange.

Key Features

The following capabilities, drawn from the Baker Hughes fact sheet and technical specification, summarise what the Masoneilan 36005 offers over conventional ball and butterfly control valves:

• A patented dual-characterized V-port ball combines an equal percentage characteristic, high capacity and rangeability greater than 500:1.
• Integrally cast raised-face flanges to ASME Class 150 or 300 remove the need for long tie rods and simplify pipeline alignment.
• Standard EF seal packing provides long-term, extremely low-emission shaft sealing without compromising control performance.
• Three seal ring options cover Class VI soft-seat shut-off, Class IV metal-seat shut-off and a heavy-duty metal seat for harsh services.
• Full involute spline connections on plug, shaft and actuator virtually eliminate backlash and simplify maintenance.
• Two face-to-face options let the valve follow either the ISA S75.04 and IEC 534-3-2 standard or the ASME B16.10 short pattern.
• Model 33 spring-diaphragm actuators and Model 31/32 rolling diaphragm actuators can be mounted in eight orientations relative to the body.
• An optional Masoneilan SVI3 digital positioner uses a non-contacting position sensor coupled directly to the valve shaft, eliminating external linkage.

Industrial Applications

Baker Hughes lists refining, petrochemicals and pulp and paper as the main industries for the Masoneilan 36005, with distillation, hydroprocessing, reforming, cracking, blending, quenching, fractionation, charge gas compression and separation as typical services. The fact sheet also singles out high-viscosity fluids, such as those found in pulp and paper, and processes that need very high capacity together with accurate control. In Oman that profile suits refinery and petrochemical units in Sohar and Duqm, large cooling and process water loops where a globe valve would be oversized and costly, and high-viscosity process lines that benefit from a straight-through V-port.

In Oman and the GCC, Seven Star LLC supplies the Masoneilan 36005 with actuators and instrumentation from the same manufacturer. Projects that want a digital positioner can add the Masoneilan SVI3 digital valve positioner. Where a lugged or wafer butterfly pattern is preferred for a given line, we also supply the Masoneilan 39005 high-performance butterfly valve, and for lined or smaller rotary duty the Masoneilan 35002 Camflex rotary control valve.

Technical Specifications

The table below summarises the published data for the Masoneilan 36005 as given in the Baker Hughes technical specification (Rev. B) and fact sheet. Please consult the full documents for pressure-temperature limits, dimensions and weights.

Other Masoneilan rotary valves include the Masoneilan 31000 Series PFA-lined rotary valve and Masoneilan 33000 Series triple offset butterfly valve.

Request a Quote for Masoneilan 36005

Seven Star LLC invites process engineers, EPC contractors and plant maintenance teams across Oman and the GCC to submit a formal request for quotation for the Masoneilan 36005. Please send the line size, ASME class, process fluid, temperature and differential pressure, plus the preferred seal ring and actuator action, and we will confirm the configuration, advise on regional availability and provide the Baker Hughes technical specification for download from this page. In Oman and the GCC, Seven Star LLC delivers genuine products with manufacturer documentation, warranty coverage and responsive local support.
