Masoneilan 41005 Extended Size 30-36 Inch Cage-Guided Globe Control Valve
Overview
The Masoneilan 41005 Extended Size valve is the large-bore range of the Baker Hughes 41005 Series cage-guided globe control valve, built in 30, 32 and 36 inch bodies (DN 750, 800 and 900). Baker Hughes publishes it in a dedicated fact sheet, titled Extended Size of Cage-Guided Globe Valves with Lo-dB and anti-cavitation capabilities, because at this size the data that matters to a project team is different from the standard range: lifting arrangements, face-to-face length, installed weight and the very high flow coefficients that these bodies reach. Baker Hughes describes the rugged design as delivering excellent performance in extended sizes up to 36 inches for power, onshore and offshore oil and gas, petrochemical and refining duties.
In Oman and the GCC, Seven Star LLC proudly supplies the Masoneilan 41005 Extended Size to EPC contractors, power and water utilities and process operators across the Sultanate of Oman and the GCC. Valves of this scale are always project items, so our Muscat valve team reviews the fluid, flow, pressure drop, noise limit and installation space with you first and then confirms the body size, rating and trim before an RFQ is raised.
Masoneilan 41005 Extended Size Cage Guided Trim at Large Bore

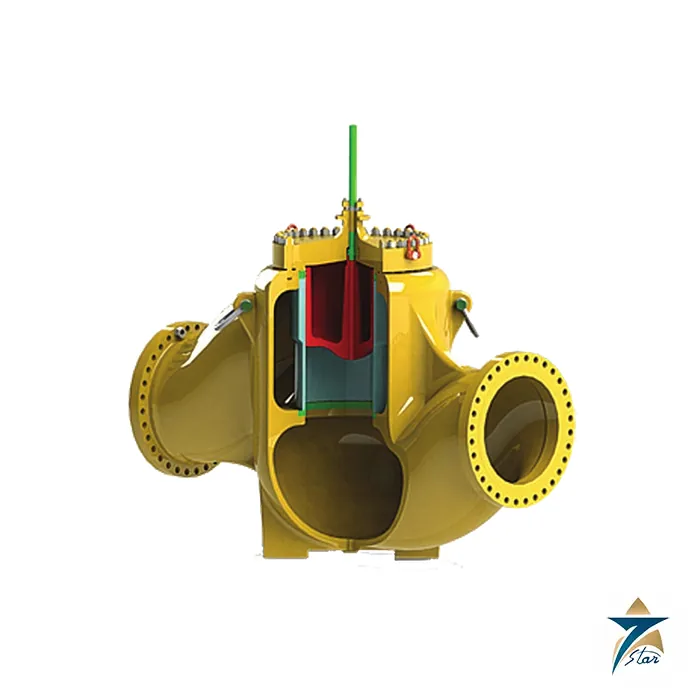

The Masoneilan 41005 Extended Size keeps the cage-guided principle of the 41005 Series: the plug is balanced, which Baker Hughes shows with a plug tip, and slides inside a cage that sets the flow characteristic. The extended size fact sheet offers a linear flow characteristic with a choice of trims. These are a ported cage, a single stage Lo-dB cage, a double stage anti-cavitation cage and a characterized option. Four trim families are illustrated: single stage low noise trim in flow-to-open (FTO) direction, single stage anti-cavitation trim in flow-to-close (FTC) direction, multi-stage anti-cavitation trim in FTC direction and a characterized partial Lo-dB or anti-cavitation trim with a ported cage.
The capacity of the valve is expressed as Cv, the volume of water at 60°F in US gallons per minute that passes with a pressure drop of one psi. For the Masoneilan 41005 Extended Size the maximum linear-trim Cv with a ported cage is 10,500 at 30 inch, 13,100 at 32 inch and 17,000 at 36 inch. With the single stage cage the fact sheet figures fall to 8,000, 9,300 and 13,000 (the longer technical specification lists 13,500 for the 36 inch single stage trim, so the figure for a given order is confirmed at quotation), and the double stage anti-cavitation cage is listed at 8,000 for 32 inch and 11,500 for 36 inch. The step down from ported to staged trims is the cost of noise attenuation and cavitation control, and it is the first number a process engineer should compare with the required flow.
Engineering Design of the Masoneilan 41005 Extended Size
The extended range is offered in carbon steel (WCC or WCB), duplex steel (Gr. 4A and 6A) and aluminium bronze (UNS C95800), with Inconel cladding as an option and other materials on request, and appropriate trim and bolting options for each. Custom trim materials are listed among the valve performance features, which allows the trim to be matched to erosive or corrosive service. Connections are ASME raised face flanges. Class 150 and Class 300 are available at all three sizes, and Class 600 is listed for the 30 inch valve only.
Because of their mass, the large valves are provided with lifting lugs, and the fact sheet gives maximum values for the height dimensions and weights so that crane capacity, foundations and pipe supports can be planned. Baker Hughes notes that the B and C dimensions and the weights are maximums that vary with the body and bonnet attributes, and that certified drawings give the specific values for each order. The Masoneilan 41005 Extended Size weighs from 8,295 kg for a 30 inch Class 150 body and up to 16,000 kg for a 36 inch Class 300 body, so installation planning is a real part of the purchase.
Actuation and Instrumentation
The Masoneilan 51, 52 and 53 Series pneumatic cylinder actuators provide high thrust and dynamic stiffness for throttling control and on/off service on the Masoneilan 41005 Extended Size. Actuator sizes 16L, 20L and 24L are listed for strokes of 12, 14, 16, 18, 20 and 24 inches (300, 350, 400, 450, 500 and 600 mm). For positioning, Baker Hughes names the Masoneilan SVI digital valve positioner (see the Masoneilan SVI3 digital valve positioner), which uses advanced control and diagnostic algorithms and non-contact position sensing, and the wider instrumentation portfolio of electro-pneumatic transducers, air filter regulators, booster relays and electric rotary switches.
Compliance and Emissions of the Masoneilan 41005 Extended Size
The Masoneilan 41005 Extended Size meets Class IV and Class V seat leakage according to IEC 60534-4, fugitive emission testing to ISO 15848-1 and the Pressure Equipment Directive 2014/68/EU. Baker Hughes also states that low-emissions packing options are available for all Masoneilan globe valve designs, including the extended sizes up to 36 inches, to meet global and regional environmental requirements. The temperature range of the Masoneilan 41005 Extended Size is -29°C to +232°C (-20°F to 449°F).
Key Features
The following points summarise the strengths of the Masoneilan 41005 Extended Size:
- Body sizes of 30, 32 and 36 inch (750, 800 and 900 mm) with maximum linear-trim Cv up to 17,000.
- Balanced plug with plug tip in a cage-guided design for stable throttling at large flows.
- Trim options include ported cage, single stage Lo-dB, double stage anti-cavitation and characterized trims.
- Body materials of carbon steel, duplex steel and aluminium bronze, with Inconel cladding as an option.
- ASME Class 150 and 300 raised face flanges, with Class 600 at 30 inch.
- Seat leakage Class IV and V to IEC 60534-4 and fugitive emissions to ISO 15848-1.
- Lifting lugs are provided, and certified drawings give exact dimensions and weights.
- Works with 51/52/53 Series cylinder actuators and the Masoneilan SVI positioner.
Industrial Applications
The Masoneilan 41005 Extended Size suits the large-flow control loops of power stations, gas processing and export systems, refineries and petrochemical complexes: condensate and feedwater control, cooling water and seawater duties, large compressor recycle and bypass lines, and big pipeline pressure control. In Oman these duties appear in the power and desalination plants of the Batinah coast, the refinery and petrochemical area at Sohar and the industrial zones of Salalah.
In Oman and the GCC, Seven Star LLC supplies the Masoneilan 41005 Extended Size together with the full 41005 range. For bodies up to 24 inches the standard Masoneilan 41005 Series cage-guided control valve applies, and the 41005 seal and packing kit supports in-service maintenance.
Technical Specifications
The table below summarises the principal data of the Masoneilan 41005 Extended Size as published in the Baker Hughes extended size fact sheet. Dimensions A, B and C are maximum values for flanged bodies and should be confirmed from certified drawings.
| Parameter | Specification |
|---|---|
| Model | Masoneilan 41005 Extended Size (cage-guided globe valve) |
| Valve sizes | 30 in (750 mm), 32 in (800 mm), 36 in (900 mm) |
| Ratings and connections | ASME Class 150 and 300 raised face flange (30, 32, 36 in); Class 600 (30 in only) |
| Temperature range | -29°C to +232°C (-20°F to 449°F) |
| Body materials | Carbon steel WCC/WCB; duplex Gr. 4A and 6A; aluminium bronze UNS C95800; Inconel cladding option |
| Flow characteristic | Linear; balanced plug with plug tip |
| Max Cv, ported cage | 30 in: 10,500; 32 in: 13,100; 36 in: 17,000 |
| Max Cv, single stage cage | 30 in: 8,000; 32 in: 9,300; 36 in: 13,000 (technical specification: 13,500 at 36 in) |
| Max Cv, double stage anti-cavitation | 32 in: 8,000; 36 in: 11,500 |
| Dimension A, Class 150/300 | 30 in: 2,675 mm; 32 in: 3,174 mm; 36 in: 3,774 mm |
| Maximum weight, Class 150 | 30 in: 8,295 kg; 32 in: 11,350 kg; 36 in: 15,000 kg |
| Maximum weight, Class 300 | 30 in: 9,150 kg; 32 in: 11,860 kg; 36 in: 16,000 kg |
| Seat leakage | Class IV and V, IEC 60534-4 |
| Standards | ISO 15848-1 fugitive emissions; PED 2014/68/EU |
| Actuators | 51/52/53 Series cylinder, sizes 16L, 20L and 24L; strokes 300 to 600 mm |
For lower-noise and multi-stage service in smaller bodies see the Masoneilan 49000 Series V-LOG anti-cavitation valve.
Request a Quote for Masoneilan 41005 Extended Size
To request a quotation for the Masoneilan 41005 Extended Size, send Seven Star LLC the fluid, flow rate, pressure drop, temperature, noise limit and line size, so that body size, rating and trim can be confirmed. Because bodies of 30 to 36 inch are project items, we also review crane access and installation space with you. Our team confirms regional availability and provides the Baker Hughes extended size fact sheet and technical specification for download from this page. As trusted supplier for Masoneilan in Oman and the GCC, Seven Star LLC delivers valves with manufacturer documentation and local support.
Masoneilan control valves and actuator series
The globe valve listing centers on the 21000 series, including the cryogenic version with extension bonnet, and the 41005 cage-guided series in high pressure, API 6A and VRT anti-cavitation executions. The 80385 and 80386 are three-way combining and diverting valves. Rotary products include the 35002 Camflex II and the 37002 MiniTork II butterfly control valve. Actuators cover spring-diaphragm, cylinder and rack-and-pinion designs, among them the 5A cylinder actuator for Camflex II. Masoneilan also makes pressure regulators, SVI digital valve positioners and displacer-type level instruments, and offers Lo-dB trim for noise control.Where Masoneilan valves are used
Throttling duty on steam, hydrocarbons, gas and water is the daily work of these valves: feedwater and steam conditioning in power plants, separator and compressor loops in gas processing, high pressure drop letdown, cryogenic service in LNG and air separation, and general flow, pressure and level control in refineries and chemical plants.Ordering Masoneilan valves and spare parts: what we need
For spare parts the serial number is decisive, since the factory record behind it lists trim, materials and actuator. Send a clear nameplate photo with serial number, model number, size and pressure class. For a new valve add the process data: fluid, inlet and outlet pressure, temperature, minimum, normal and maximum flow, required leakage class, fail position, air supply and control signal.Browse Masoneilan products by category: Control Valves, Valve Actuator, Regulators, Valve Positioner, Level Transmitter.
