Masoneilan 78400 API 6A LincolnLog Severe Service Control Valve (78400/18400)
Overview
The Masoneilan 78400 API 6A is the high-pressure version of the LincolnLog severe service control valve from Baker Hughes, offered as the 78400 globe and 18400 angle designs. It is available in sizes up to 6 in. and is designed to meet the API 6A standard for high-pressure wellhead-type duties, with forged bodies rated for operation up to 15K psi. The LincolnLog multi-stage trim lets the valve throttle large pressure drops without the erosion and cavitation damage that would ruin a conventional single-stage trim.
Seven Star LLC is the trusted supplier for Masoneilan in the Sultanate of Oman and supplies the Masoneilan 78400 API 6A to oil and gas producers and processors across the GCC, including customers around the Sohar and Salalah industrial zones. Our Muscat team helps customers decide on body material, stage count and end connection before an order is placed, using the data published by Baker Hughes.
Operating Principle of the Masoneilan 78400 API 6A
In the Masoneilan 78400 API 6A the LincolnLog trim provides a smooth modified linear control characteristic with clearance flow capacity over the first 15 percent of valve travel. The multi-stage clearance-flow concept prevents high pressure drops from acting across the seating area while the valve throttles at low lifts, which extends trim life significantly and gives dependable shutoff when it is needed. Throttling stability and performance at low lifts also improve, while capacity control remains smooth, accurate and continuous from 15 to 100 percent of plug travel.
Controllability extends from the maximum rated Cv down to the minimum controllable Cv for each valve size, giving typical turndown ratios of 50:1. The standard flow direction is flow-to-open. Eight-stage and ten-stage trims are available as standard options when the service needs additional pressure drop stages.
Engineering Design of the Masoneilan 78400 API 6A
In the Masoneilan 78400 API 6A the globe or angle body is forged. The body and bonnet are joined by a bolted joint with a metallic VG seal that is both self-energized and pressure-energized, which keeps leakage through the joint low and is rated for pressures up to 15K psi in operation. The standard packing flange and follower are designed as one piece for better flange stiffness, and both standard and fugitive emission packing options are offered, with PTFE packing listed for the standard design.

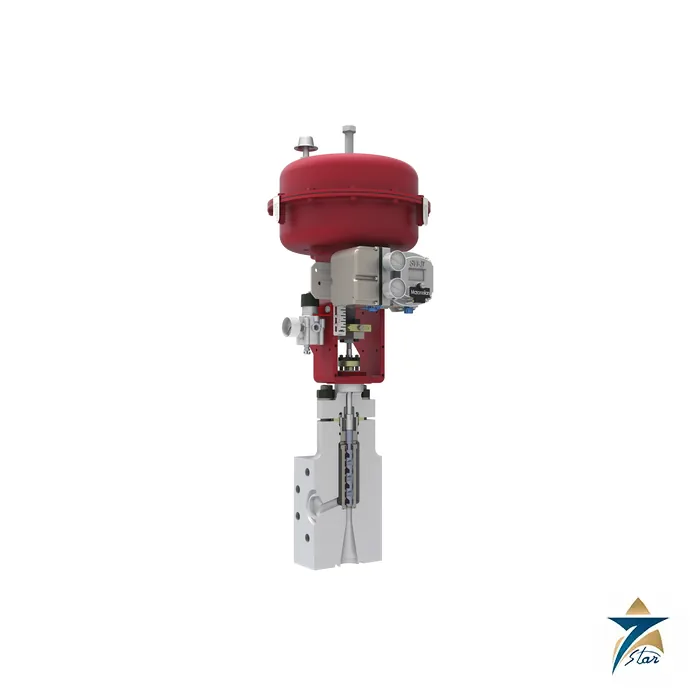

Body and bonnet materials are F6NM stainless steel, F51 duplex stainless steel, F55 duplex stainless steel and Nickel-alloy Inconel 718. Lifting lugs are standard for safe handling. Actuation is by a spring diaphragm actuator (standard 87/88) or a cylinder actuator (51/52/53), with an optional handwheel, and the fact sheet gives a cross-sectional cutaway of the 6 in. size.
Key Features
These are the points that matter when specifying the Masoneilan 78400 API 6A:
- The Masoneilan 78400 API 6A has forged globe or angle bodies rated for 10K psi (690 bar) and 15K psi (1034 bar) API 6A classes.
- A self- and pressure-energized metallic VG seal protects the body-bonnet joint.
- Seat leakage meets Class IV and V per IEC 60534-4.
- Eight-stage and ten-stage LincolnLog trims handle higher pressure drops.
- C-type trim in balanced form (1.5 to 6 in.) or unbalanced form (1 in. only), with full area and reduced area options for 1 in. valves, gives flexible capacity.
- NACE-compatible materials are available for sour service to ANSI/NACE MR0175/ISO 15156-1.
- Typical turndown ratios reach 50:1 with modified linear characteristic.
- On the Masoneilan 78400 API 6A, lifting lugs and one-piece packing flange and follower are provided as standard.
Industrial Applications
The Masoneilan 78400 API 6A is intended for high-pressure severe service applications where API 6A compliance is specified and where a large pressure drop must be split across several stages. For Oman this points to upstream producers and to processing facilities where erosion at high pressure drop is the main maintenance cost. The fact sheet attaches three operating notes that should be built into any specification: the valve should be closed only for a short period because long closure risks damaging trim parts, service above 800 psi per stage pressure drop carries a high erosion risk and calls for regular servicing intervals, and F51 construction is limited to the API 10K body rating.
In Oman and the GCC, Seven Star LLC supplies the Masoneilan 78400 API 6A with its actuators, including the Masoneilan Type 87/88 spring-diaphragm actuators and the Masoneilan Type 51/52/53 piston actuators, and we supply spares such as seal kits for the 78400/18400 family. Our engineers will advise when the Masoneilan 78400 API 6A LincolnLog design or another severe service trim such as V-LOG is the better choice, and we can plan the 8-stage or 10-stage trim against your pressure profile. A Masoneilan SVI3 digital valve positioner can be added for positioning.
Technical Specifications
The table lists the published data for the Masoneilan 78400 API 6A from the Baker Hughes fact sheet dated 08/2024, and the sizing, numbering system and temperature classes follow Appendix B (API 6A) of the Baker Hughes LincolnLog technical specification.
| Parameter | Specification |
|---|---|
| Model | Masoneilan 78400/18400 API 6A Series LincolnLog severe service control valve |
| Valve size | Up to 6 in. (NPS 1, 1.5, 2, 3, 4 and 6 in the end connection table) |
| End connection | 1 in. and 1.5 in.: 1 13/16 (1.8125); 2 in.: 2 1/16 (2.0625); 3 in.: 3 1/16 (3.0625); 4 in.: 4 1/16 (4.0625); 6 in.: 7 1/16 |
| Pressure rating | API 10K psi (690 bar) and 15K psi (1034 bar) |
| Body type | Forged globe or forged angle |
| Body and bonnet materials | F6NM stainless steel; F51 and F55 duplex stainless steel; Inconel 718 |
| Temperature range | F6NM and Inconel 718: -76 to +356 degF (-60 to +180 degC); F51 and F55: -50 to +356 degF (-46 to +180 degC) |
| Packing and seat | PTFE packing; metal seat |
| Seat leakage class | IV and V (IEC 60534-4) |
| Trim | Type C; balanced (1.5 to 6 in.) or unbalanced (1 in. only); full area, reduced area Cv 0.4 and Cv 0.2 (1 in. only) |
| Stages | 8 and 10 stage available as standard options |
| Flow direction and characteristic | Standard flow-to-open; modified linear |
| Actuator | Spring diaphragm (standard 87/88) or cylinder (51/52/53); optional handwheel |
Related Masoneilan products include the Masoneilan 78400/18400 LincolnLog anti-cavitation control valve, Masoneilan LincolnLog 78400/18400 valve seal kit and Masoneilan 49000 V-LOG low-noise anti-cavitation valve.
Request a Quote for Masoneilan 78400 API 6A
To request a quotation or technical support for the Masoneilan 78400 API 6A, send a formal RFQ to the Seven Star LLC instrumentation division with the line size, API pressure class, fluid, pressure drop per stage, temperature and any sour service requirement. We can advise on stage count and materials, confirm availability and lead time and supply the Baker Hughes fact sheet and technical specification linked on this page. In Oman and the GCC, Seven Star LLC supplies genuine valves with manufacturer documentation and local engineering support.
Masoneilan control valves and actuator series
The globe valve listing centers on the 21000 series, including the cryogenic version with extension bonnet, and the 41005 cage-guided series in high pressure, API 6A and VRT anti-cavitation executions. The 80385 and 80386 are three-way combining and diverting valves. Rotary products include the 35002 Camflex II and the 37002 MiniTork II butterfly control valve. Actuators cover spring-diaphragm, cylinder and rack-and-pinion designs, among them the 5A cylinder actuator for Camflex II. Masoneilan also makes pressure regulators, SVI digital valve positioners and displacer-type level instruments, and offers Lo-dB trim for noise control.Where Masoneilan valves are used
Throttling duty on steam, hydrocarbons, gas and water is the daily work of these valves: feedwater and steam conditioning in power plants, separator and compressor loops in gas processing, high pressure drop letdown, cryogenic service in LNG and air separation, and general flow, pressure and level control in refineries and chemical plants.Ordering Masoneilan valves and spare parts: what we need
For spare parts the serial number is decisive, since the factory record behind it lists trim, materials and actuator. Send a clear nameplate photo with serial number, model number, size and pressure class. For a new valve add the process data: fluid, inlet and outlet pressure, temperature, minimum, normal and maximum flow, required leakage class, fail position, air supply and control signal.Browse Masoneilan products by category: Control Valves, Valve Actuator, Regulators, Valve Positioner, Level Transmitter.
