Brand: E2S

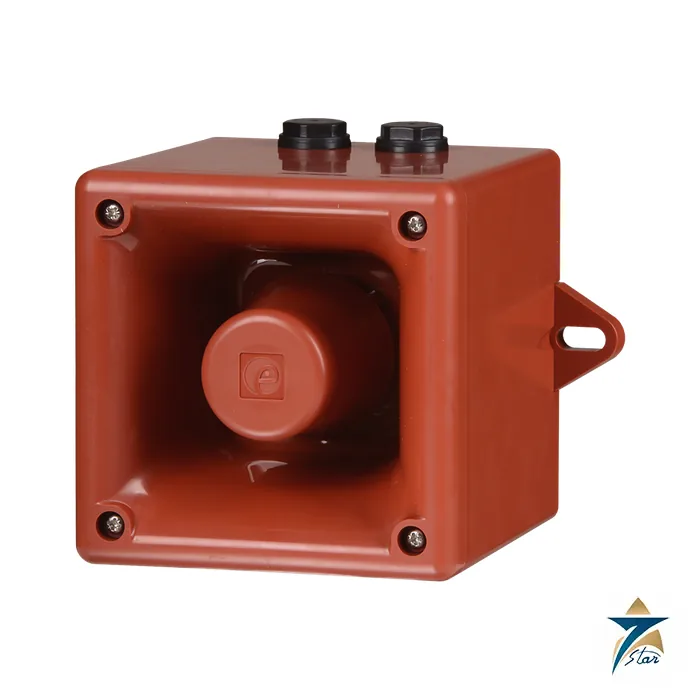

E2S IS-A105N Intrinsically Safe Alarm Sounder 105 dB
Description
An intrinsically safe 105 dB(A) alarm sounder for Zone 0
The E2S IS-A105N is a high-output intrinsically safe alarm sounder with 105 dB(A) nominal output at 1 metre. It carries ATEX, IECEx and Ex EAC approvals for Zone 0 and FM approval for Class I Division 1 and Class I Zone 0 applications. E2S describes it as suitable for all intrinsically safe signalling applications including fire, security and process control.
Because it is intrinsically safe it is powered through a certified Zener barrier or galvanic isolator, which keeps the energy in the hazardous area below ignition level. That makes it a fit for areas where a flameproof Ex d horn is not accepted, such as Zone 0 vessel interiors and similar locations, and for loops already built around barriers.
Technical specifications
| Parameter | Specification |
|---|---|
| Product type | IS-A105N alarm sounder; part number IS-A105N-[x], R red RAL3000 or G grey RAL7038 |
| Ex coding | II 1G Ex ia IIC T4 Ga (-40 degC to Ta to +60 degC); IS Class I, Zone 0, AEx ia IIC T4 Ta = +60 degC; IS Class I, Division 1, Groups A, B, C, D T4; Ex EAC 0ExiaIICT4 IP66 |
| Certificates | ATEX SIRA 04ATEX2301X; IECEx SIR 04.0038X; FM approved; Ex EAC POCC GB.JB05.B03365 |
| Nominal output | 105 dB(A) at 1 m +/-3 dB, tone 2 (96 dB(A) at 3 m) |
| Volume control | Max. 105 dB(A); min. 96 dB(A), tone 2 |
| Tones and stages | 49 tones (UKOOA / PFEER compliant), 3 stages |
| Effective range | 60 m at 1 kHz |
| Supply | 16 to 28 V dc via Zener barrier or galvanic isolator |
| Barrier parameters | Uo 28 V dc; Io 93 mA; Po 660 mW (maximum output parameters of the barrier) |
| Current | 25 mA typical from a 24 V supply via a 28 V 300 ohm Zener barrier |
| Ingress protection | IP66 |
| Rating | Continuous |
| Enclosure | UL94 V0 and 5VA flame-retardant ABS; stainless steel fixings |
| Cable entries and terminals | 2 x M20 entries (stopping plugs included); 0.5 to 2.5 mm2 |
| Operating / storage temperature | -40 to +60 degC / -40 to +70 degC |
| Weight | 0.75 kg |
Features and tone selection
The unit has input overload and reverse current protection, auto-synchronised sound output, and duplicate cable terminations for in and out wiring in daisy-chain installations. It can be fixed with external lugs or internal BESA-compatible positions. The datasheet tone table covers continuous, alternating, sweeping and intermittent tones, including the 1000 Hz continuous PFEER toxic gas tone and the 1200/500 Hz DIN and PFEER prepare-to-abandon tone, and custom tone configurations are available.
What to confirm before ordering
Confirm the barrier or isolator output parameters against the entity limits above, the cable parameters, the required tones and stages, and the enclosure colour. A flameproof alternative for Zone 1 and 2 areas is the E2S GNExS1F horn, and more units are listed under fire and gas detection.
Documents and quotation
The attached E2S datasheet carries the Ex coding, entity parameters and the full tone table. Include the colour, tone plan and quantity in your enquiry.
Datasheets & Documents
- Datasheet E2S IS-A105N alarm sounder datasheet (EN) Download
Reviews (0)
About brand
E2S builds one thing: audible and visual warning signals. The company, founded in 1992 and based in London, United Kingdom, makes sounders, beacons, combined units, manual call points and loudspeakers for industrial, marine and hazardous-area sites. Seven Star LLC sources and supplies E2S explosion-protected alarm sounders and xenon beacons for fire and gas systems in Oman, including the GNEx and BEx models shown on this page.
E2S hazardous-area families
E2S groups its Ex signals by family. GNEx and BEx are both for Zone 1 and Zone 21, and the STEx family covers the same zones. D1x and D2x are the lines for Class/Division sites, and the IS family is intrinsically safe for Zone 0. The listed items show the pattern: GNExS1F is an alarm horn sounder, GNExB2X10 a xenon strobe beacon and BExCS110-05 a combined sounder and beacon.
Ordering E2S signals: what we need
An E2S part number is completed by suffixes for supply voltage, lens color, cable entries and options, so send the whole code from the label. For a new requirement give the area classification, gas group and temperature class, voltage, lens color, entry thread, and the approval your project needs. Many GCC projects name IECEx or ATEX in the specification.
Browse E2S products by category: Fire & Gas Detector.
Related products
Frequently Asked Questions
Which zones is the IS-A105N approved for?
Zone 0 under ATEX, IECEx and Ex EAC, and Class I Division 1 and Class I Zone 0 under FM approval.
How is the IS-A105N powered?
From 16 to 28 V dc through a certified Zener barrier or galvanic isolator not exceeding Uo 28 V, Io 93 mA, Po 660 mW.
How loud is it?
105 dB(A) nominal at 1 m +/-3 dB for tone 2, adjustable down to 96 dB(A).
How many tones does it have?
49 tones and 3 stages, with custom tone configurations available.
What are the ingress protection and weight?
IP66 and 0.75 kg.
