E2S D1xS1F Explosion-Proof Alarm Horn Sounder

Name: E2S D1xS1F Explosion-Proof Alarm Horn Sounder – Datasheet & Quote
Brand: E2S
SKU: D1xS1F

A 115 dB(A) flameproof alarm horn with 64 tones and four remote stages

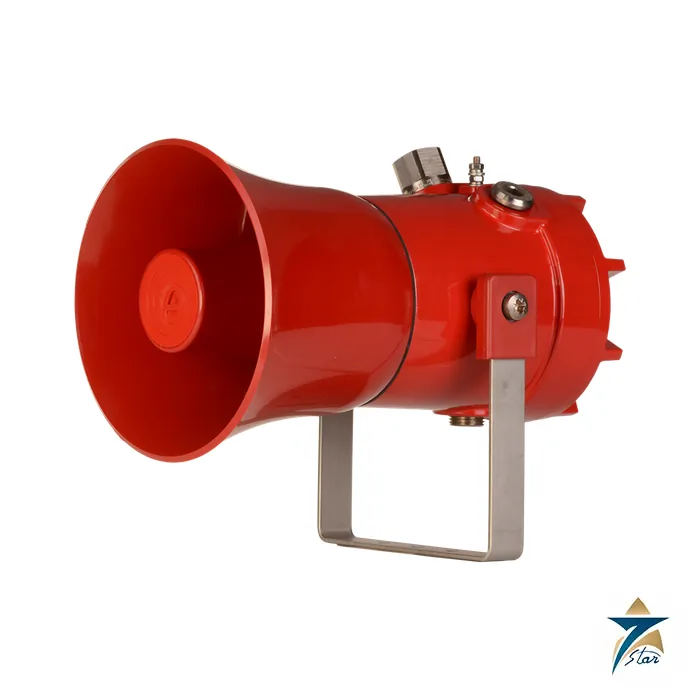

The E2S D1xS1F is an explosion-proof alarm horn sounder from the D1x range, with a sound output of up to 115 dB(A) at 1 metre. It has 64 selectable alarm tones (UKOOA / PFEER compliant) and four remotely selectable alarm stages, with positive or negative stage switching on DC units and automatic synchronisation when several sounders are used together. The marine-grade aluminium enclosure is Type 4/4X and IP66/67, with a threaded flameproof joint, triple cable entries, duplicated pluggable terminals and a ratchet-adjustable A4 316 stainless-steel bracket.

Technical specifications

Parameter	Specification
Sound output	Maximum 115 dB(A) at 1 m (106 dB(A) at 3 m); nominal 110 dB(A) +/-3 dB, tone 4; Class II version 98 dB(A) maximum
Tones and stages	64 tones; 4 alarm stages; full-range volume control; effective range 125 m at 1 kHz
Supply	24 VDC (11.5 to 54 VDC) or 230 VAC (100 to 240 VAC)
Current (24 VDC)	185 mA nominal, 221 mA maximum, in-rush 815 mA within 4 ms; 230 VAC 48 mA nominal, 80 mA maximum
Enclosure	Marine-grade LM6 aluminium, chromate and powder-coated, red or grey; IP66/67; Type 4 / 4X / 3R / 13; under 2 litres
Cable entries and terminals	2 x M20 and 1 x 1/2 in NPT (thread adaptors available); terminals 0.5 to 2.5 mm2 (20-14 AWG); M5 earth stud
Line monitoring	Blocking diode included; EOL 500 ohm 2 W or 3k3 ohm 0.5 W resistor or diode (DC)
Temperature	Installation and storage -55 to +85 C
Weight	4.00 kg (8.80 lb)
Hazardous-area coding (as printed)	Class I Zone 1 IIC T5 Ta -55 to +85 C (T6 +75 C); Class I Div 1 ABCD T5; IECEx / ATEX II 2G Ex db IIC T5 Gb Ta -55 to +75 C (T6 +70 C); II 2D Ex tb IIIC T82 C Db
Functional safety	SIL1 and SIL2 Route 2H to IEC 61508 (2010); version S: SIL2 Route 1H with diagnostics, SFF above 99%
Certificates listed	UL/cUL/ULC E230764; IECEx ULD 19.0008X; ATEX DEMKO 19 ATEX 2141X; UKCA UL21UKEX2132X; CCCEx; EU CPR 2831-CPR-F4858; UK CPR 0832-UKCA-CPR-F1782; MED and MER; INMETRO; DNV; EAC Ex; CSFM

The 24 VDC version is described as EN 54-3 (EU and UK CPR), MED and MER compliant and UL 464 compliant for public-mode fire alarm use. Check the product manual for voltage-specific coding.

Decoding the part number

The part code is built as D1xS1 + horn type + voltage + cable entry + plug material + bracket + version + option + colour. Examples from the datasheet: F is the flare re-entrant horn; DC024 is 11.5-54 VDC and AC230 is 100-240 VAC; entry A is 2 x M20 and 1 x 1/2 in NPT, B 2 x 1/2 in NPT, C 2 x 3/4 in NPT, D 2 x M25; plug material B brass, N nickel-plated brass, S stainless steel; bracket 1 is A4 316 stainless, 3 adds an equipment tag, 5 adds tag and duty label. Product version A is the standard UL, IECEx and ATEX variant with marine approvals, S is the SIL2 Route 1H version, T is telephone/relay initiate (supply 100-260 VAC or 10-30 VDC only), J adds CCCEx and D is the Class II version. Options include 1 (standard), Y, K, V and R for different stage-control configurations, and colour R (red) or G (grey). For the EU and UK CPR, MED and MER compliant 24 VDC variant, select version A and option 1. Accessories listed are the pole-mount bracket kit SP65-0001-A4 and sunshade SP65-0003-A4.

Related D1x models and quotation

E2S lists other D1x devices including the D1xS2F (123 dB), D1xS2H (128 dB), D1xL1F (15 W speaker, 117 dB), D1xL2F (25 W speaker), D1xC1X05F (horn with 5 J strobe), D1xB2X05 (5 J xenon beacon), D1xB2LD2 (LED multi-function beacon) and the D1xCP1-PS pull station. The attached datasheet (1-22-140, July 2026) carries the full tone table. For a GNEx alternative see the E2S GNExS1F and fire and gas detectors. Send voltage, entries, tone, approvals and colour for a quotation.
