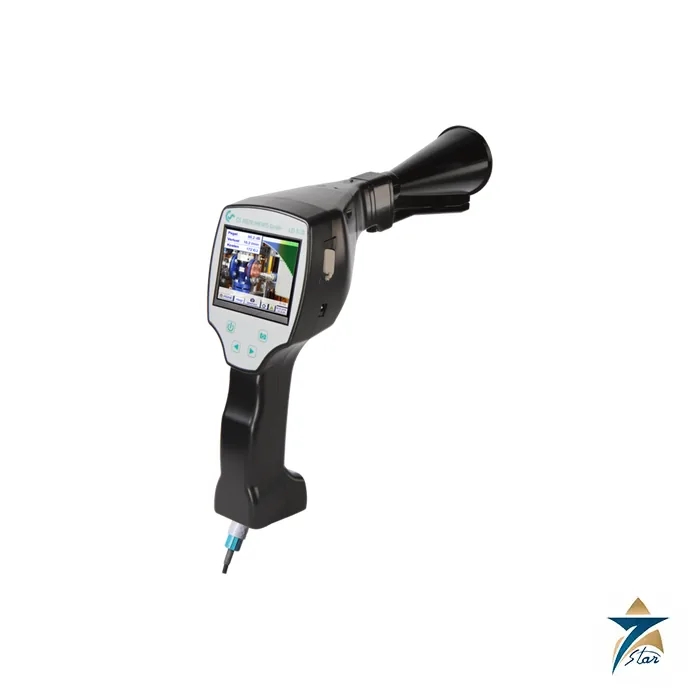

CS Instruments LD 500 Ultrasonic Leak Detector with Camera

Overview

The CS Instruments LD 500 is a handheld ultrasonic leak detector with integrated camera that not only finds compressed air and gas leaks but also quantifies them, showing the leakage rate in l/min or cfm and the resulting cost per year directly on its display. Leaks are one of the largest hidden losses in any compressed air system; the manufacturer estimates that roughly a quarter of generated compressed air is typically lost through them. The CS Instruments LD 500 turns a leak survey from a simple hunt for hissing noises into a documented energy efficiency project, with photographs, locations, repair instructions and an ISO 50001 compliant report for every leak found.

Seven Star LLC supplies the CS Instruments LD 500, its accessory sets and the reporting software to plants and maintenance service companies in the Sultanate of Oman and the GCC. As a trusted supplier with engineering support in Muscat, we help customers choose between the standard acoustic trumpet set, the UltraCam set and long-distance accessories, and we can advise on setting up a recurring leak management programme.

Measurement Principle of the CS Instruments LD 500

Gas escaping through a small opening produces turbulence that emits ultrasound, mostly around 40 kHz, well above the range of human hearing and largely separate from the audible noise of a production hall. The CS Instruments LD 500 picks up this ultrasound with a 40 kHz piezo sensor in its acoustic funnel or focus tube, converts it into an audible signal in a sound-proof headset, and fades out loud ambient noise. An auto level function adapts sensitivity to the environment, and the frequency range can be adjusted to suppress interfering frequencies. Even very small leaks of around 0.1 l/min can be tracked over long distances.

To quantify a leak, the user aims at it and the instrument evaluates the ultrasound level together with the distance to the leak. With the integrated laser distance measurement option, this distance is measured automatically, so the leakage rate and annual cost are calculated without manual estimation. The cost per 1000 m³ or per 1000 cf of compressed air can be entered in any currency. In the UltraCam version, 30 MEMS microphones additionally calculate an ultrasound image that is overlaid on the live camera picture, so the leak is visualised as a coloured spot even in noisy production areas.

Engineering Design of the CS Instruments LD 500

The CS Instruments LD 500 is designed for fatigue-free one-hand operation, weighing about 600 g in the standard version and around 700 g with UltraCam. It has a 3.5-inch colour display with 320 × 240 resolution, an integrated 640 × 480 camera for photographing each leak, and an exchangeable battery giving a full working shift of continuous operation. Automatic sensor detection recognises the attached accessory. On site the user enters the company, building and location of each leak, the fault description, the remedial action and the spare parts required, with an auto-complete search through a custom spare parts list transferred from the software.

Accessories extend the instrument to different situations: the acoustic trumpet for general searches, a focus tube with focus tip for pinpointing leaks in confined spaces, goosenecks of 600 mm or 1500 mm for hard-to-reach locations, a high-sensitivity gooseneck for vacuum systems, a parabolic mirror that can locate leaks of 0.8 l/min with ±15 cm precision at 10 to 15 m, and an ultrasonic tone generator for testing systems that are not under pressure. The LD 510 variant adds an input for external sensors. Leak data are transferred by USB to the CS Leak Reporter PC software or the multi-user CS Leak Reporter cloud solution. According to the manufacturer, the CS Instruments LD 500 meets the requirements of class I instruments under the ASTM standard test method for leaks using ultrasonics.

Key Features

Practical advantages of the CS Instruments LD 500 for leak surveys include:

• Display of leakage rate in l/min or cfm and annual cost in a freely selectable currency.
• Integrated camera for photographing every leak as part of paperless documentation.
• Optional integrated laser distance measurement for automatic leakage rate and cost determination.
• Optional UltraCam with 30 MEMS microphones that visualises leaks in the live image.
• Sound-proof headset and auto level function for reliable detection in loud production areas.
• On-device entry of location, fault description, remedy and spare parts for each leak tag.
• ISO 50001 reports via the CS Leak Reporter PC software or multi-user cloud solution.
• Wide accessory range including focus tube, goosenecks, parabolic mirror and ultrasonic tone generator.

Industrial Applications

Compressed air leak surveys are the main application of the CS Instruments LD 500: maintenance teams walk the distribution network, compressor rooms and machine connections, tag each leak with a numbered leak tag, and later use the report to plan repairs by priority and cost. The same instrument detects leaks in nitrogen, CO2, argon and other technical gas lines, and with the high-sensitivity gooseneck it can be used on vacuum systems. Energy auditors and leak detection service providers use the cloud solution to share projects across teams and sites, with roles assigned for searching, repairing and verifying.

In Oman, the CS Instruments LD 500 fits manufacturing plants in Rusayl, Sohar and Nizwa, bottling and food facilities, cement and steel works, aluminium and fabrication shops, and instrument air and nitrogen systems in gas processing plants and power stations around Duqm and Salalah, as long as the area classification permits a non-Ex handheld device. Seven Star LLC supports these users as a trusted supplier, offering engineering support in Muscat. To measure the savings achieved after repairs, consumption can be monitored with a thermal flow meter such as the ABB Sensyflow FMT200-ECO2, and dryer performance with the CS Instruments FA 510/515 dew point sensor.

Technical Specifications

Key data of the CS Instruments LD 500 from the manufacturer datasheet and product comparison:

For high-flow headers, the Endress+Hauser t-mass 65F thermal mass flowmeter can log total consumption before and after a leak campaign.

How to Order

To receive a quotation for the CS Instruments LD 500, send your RFQ to the Seven Star LLC instrumentation division stating whether you need the standard set, the laser option or the UltraCam set, and any long-distance or vacuum accessories. We will confirm availability and lead time, share the technical datasheet for download and advise on reporting software. Seven Star LLC supplies CS Instruments leak detection equipment throughout Oman and the GCC with engineering support in Muscat.
