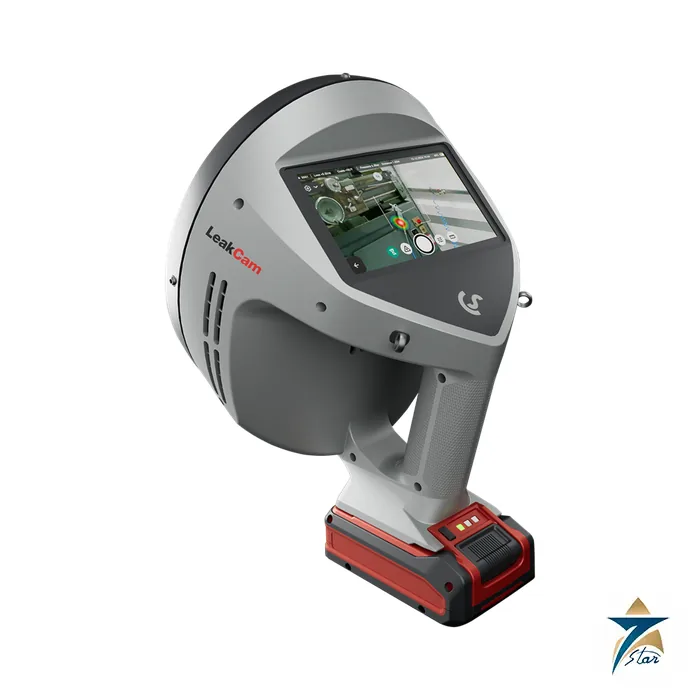

CS Instruments LeakCam 600 Ultrasonic Leak Detection Camera

Name: CS Instruments LeakCam 600 Leak Camera – Datasheet & Quote
Brand: CS Instruments
SKU: LeakCam 600

Description

An acoustic camera that shows compressed air and gas leaks on a touchscreen

The CS Instruments LeakCam 600 (LC 600) is a handheld ultrasonic leak detection camera. It uses 64 MEMS microphones covering 2 to 130 kHz and overlays the located sound source on a live 13 megapixel image, so a technician sees where a compressed air, gas or vacuum leak is instead of listening for it.

An integrated laser distance module measures the distance to the leak automatically, which CS Instruments describes as the most important parameter for an accurate leak rate estimate. The device then shows the leakage rate in litres per minute and the cost, which helps prioritise repairs and supports ISO 50001 energy documentation.

Technical specifications

Parameter	Specification
Order number	LeakCam 600 set 0601 0305 (leak detector 0560 0305, batteries, charger and transport case; backpack 0554 0207 optional)
Microphones	64 MEMS microphones; frequency range 2 to 130 kHz; 20 cm microphone spacing
Beamforming	Power Beam Forming with 12 dB dynamic range (datasheet comparison: about 3 dB for standard beamforming)
System pressure	Above 250 mbar
Distance range	0.3 to 120 m
Sensitivity	2 l/h from 3 m
Camera	13 MP, 77.3 degree diagonal field of view, 8x digital zoom, autofocus, HDR; 5 LEDs and ambient light sensor
Laser distance module	Wavelength 630 to 660 nm, below 1 mW (laser class 2)
Display	5 inch capacitive touchscreen, 1280 x 720 pixels, adjustable brightness
Interfaces	USB-A and USB-C
Storage	128 GB SD card (about 100 million values)
Power	Einhell Power X-Change 18 V batteries: 2 Ah about 2.5 h, 4 Ah Plus about 5 h continuous operation
Operating temperature	+10 to +40 degC
EMC	DIN EN 61326
Weight	Main body 1130 g (39.85 oz) without battery; 2 Ah battery 400 g; 4 Ah Plus battery 595 g
Handling	One-handed or freehand with neck strap
Set contents	Leak detector, 100 leak tags, carrying and neck strap, batteries and charger (Einhell X-Charger 3A), transport case; backpack optional
Software	CS Leak Reporter V2 (PC, ISO 50001 reports) or CS Leak Reporter cloud solution, sold separately

What it can find and where it is used

The manufacturer lists compressed air and pneumatics, technical gases such as nitrogen, argon, carbon dioxide, helium and hydrogen, flammable gases such as natural gas, methane, propane and biogas, ammonia and CO2 refrigerant systems, vacuum systems and partial discharge (corona) detection. For pressure vessel acceptance or extinguishing system commissioning it can be combined with an ultrasonic tone generator, order number 0554 0203, to leak-test systems that are not under pressure.

The camera finds the leak by sound, so it complements but does not replace gas detectors where gas concentration or personnel safety must be assessed. The datasheet lists no hazardous area certification, so check site rules before using a battery-powered device in a classified zone.

Reporting and what to confirm before ordering

Each leak location, repair action and spare part can be recorded on the device and exported through CS Leak Reporter to produce an ISO 50001 style report. The cloud version supports multiple users and locations. Decide between the 2 Ah and 4 Ah batteries and between the transport case and the backpack, and whether you need the reporting software and a calibration service (0560 4444). See the CS Instruments LD 500 ultrasonic leak detector for a lower-cost handheld option, or browse portable test and measurement instruments.

Documents and quotation

The attached CS Instruments datasheet covers the LC 600 with features, applications, order numbers, accessories and technical data. It is a 12-page extract from the manufacturer catalogue.

Seven Star LLC is an independent supplier in Muscat. Send the set configuration, software needs and quantity for a quotation.
