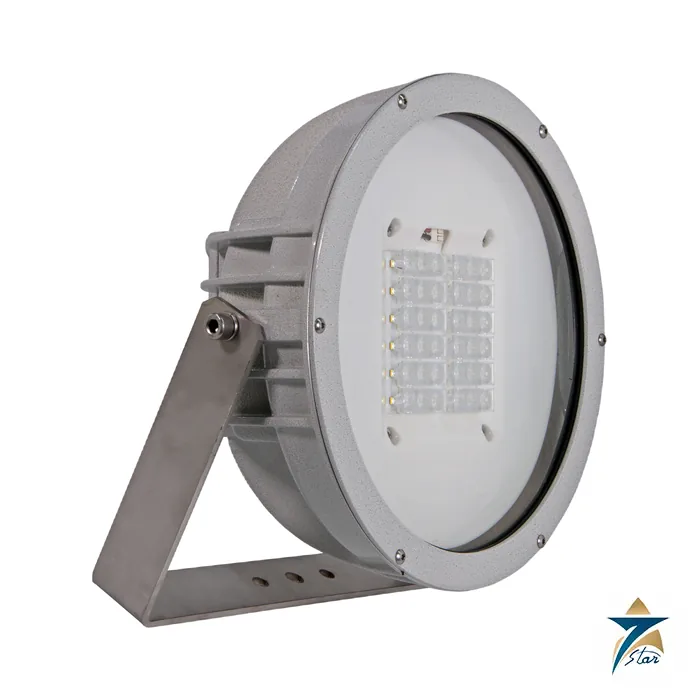

Cortem EVNL-40 Ex nR LED Floodlight for Zone 2, 21, 22

Name: Cortem EVNL-40 Ex nR LED Floodlight – Datasheet & Quote
Brand: Cortem
SKU: EVNL-40

Description

LED floodlights for Zone 2, 21 and 22 that replace discharge lamps above 400 W

The Cortem EVNL-…-40 series are LED floodlights for plants in Zone 2 (gas) and Zones 21 and 22 (dust). Cortem uses the Ex nR method, which classifies the luminaire as a restricted-breathing device: careful design and sealing limit the entry of flammable gases, vapours or mists during normal operation. The datasheet presents the range as a replacement for traditional discharge lamps exceeding 400 W, with immediate high-intensity switching and savings in energy, maintenance and installation cost.

The aluminium alloy body has cooling fins shaped to minimise combustible dust deposits and to let air or water clean the fixture. An in/out entry with an opposing plug allows several floodlights to be looped on one supply line. The front is shock-resistant tempered glass, protection is IP66 and IK10, and Cortem states a five-year warranty.

Technical specifications of the EVNL-…-40 series

Parameter	Specification
Manufacturer	Cortem S.p.A., Italy
Classification	Group II, category 2D/3G; Zone 2 (gas), Zones 21 and 22 (dust)
Marking	II 2D Ex tb IIIC T…°C Db IP66 (Zones 21, 22); II 3G Ex nR IIC T…°C Gc (Zone 2)
Certificates	ATEX EPTI 20 ATEX 0389X (dust); ATEX EPT 20 ATEX 4087X (gas); IECEx EUT 20.0025X
Ambient temperature	-60 to +60 °C (T class by model, see table)
Supply	120-277 Vac, 50-60 Hz +/-5%
Connection	Direct to terminal board L, N, PE, 4 mm2, loop-in/loop-out
Power factor / THD	Above 0.93 to above 0.97 by size; THD below 10%
Surge protection	4 kV; driver protected against over-voltage, over-current and short circuit
Light source	High-power LED multichip, 40 degree viewing angle, 5700 K, CRI above 70, L90 above 145000 h
Body and glass	Low-copper aluminium alloy RAL 7035; tempered glass; stainless steel bracket and screws
Entries	Two ISO M20 entries, supplied with PLG1ILXE7 plug and NAV20SIB gland
Protection	IP66, IK10; exempt from photobiological risk (IEC/EN 62471)
Standards	EN 60079-0:2018, EN 60079-15:2010, EN 60079-31:2014; EMC, WEEE and RoHS directives

Selection chart for the 15 models

Lumen and luminous intensity are the values printed in the datasheet; the temperature class column gives the maximum surface temperature at Ta +40 °C (T4 is 135 °C, T5 100 °C, T6 85 °C).

Code	Power (W)	Class / max. surface (°C) at +40 °C	Lumen	Max. intensity (cd)	Weight (kg)	Size (mm)
EVNL-060040-40	40	T6 / 85	4598	9518	2.5	215x205x170
EVNL-060050-40	50	T5 / 100	4986	10321	2.5	215x205x170
EVNL-070050-40	50	T4 / 135	6489	13432	3.3	250x235x165
EVNL-070060-40	60	T4 / 135	7594	15720	3.3	250x235x165
EVNL-070070-40	70	T4 / 135	8102	16771	3.3	250x235x165
EVNL-070080-40	80	T4 / 135	9081	18799	3.3	250x235x165
EVNL-080080-40	80	T5 / 100	10923	22612	4.3	290x290x170
EVNL-080090-40	90	T4 / 135	11775	24374	4.3	290x290x170
EVNL-080100-40	100	T4 / 135	12509	25896	4.3	290x290x170
EVNL-080120-40	120	T4 / 135	13719	28400	4.3	290x290x170
EVNL-100140-40	140	T4 / 135	15532	32153	9.2	385x385x250
EVNL-100160-40	160	T4 / 135	20466	42367	9.2	385x385x250
EVNL-100180-40	180	T4 / 135	21378	44255	9.2	385x385x250
EVNL-100200-40	200	T4 / 135	23828	49327	9.2	385x385x250
EVNL-100220-40	220	T4 / 135	24542	50803	9.2	385x385x250

Accessories and what to confirm before ordering

Options include dimming (0-10 V, PWM or resistor), higher CRI, a different colour temperature, a U-bolt for 1 1/2 inch poles, an eyebolt, a cover with direct pole connection, an extra NAV20SIB gland, and stanchion mounting at a fixed 25 degree angle (codes ending -IX). Spare parts include the electronic power unit, glass and gasket sets and the stainless bracket.

Confirm the zone and whether gas, dust or both apply, the temperature class needed at the site ambient (several models drop to N/A above +40 °C), the supply voltage, the mounting method and the cable entry, because Cortem lists some codes only at the lower ambient limit.

Documents and quotation

The attached document is the Cortem EVNL-40 LED floodlights datasheet (catalogue pages A.20-A.25, edition 2026).

For a quotation, send the model code, voltage, zone and gas or dust group, cable entry details and quantity. See Automation Accessories for related hazardous-area equipment. Related hazardous-area equipment: Cortem SLED-ME LED floodlight.
