Cortem CMBSP07 Ex GRP Plugs and Sockets 16 A to 125 A

Name: Cortem CMBSP07 GRP Ex Plugs and Sockets – Datasheet & Quote
Brand: Cortem
SKU: CMBSP07

Description

Corrosion-resistant GRP Ex plugs and sockets with interlocked switch-disconnector

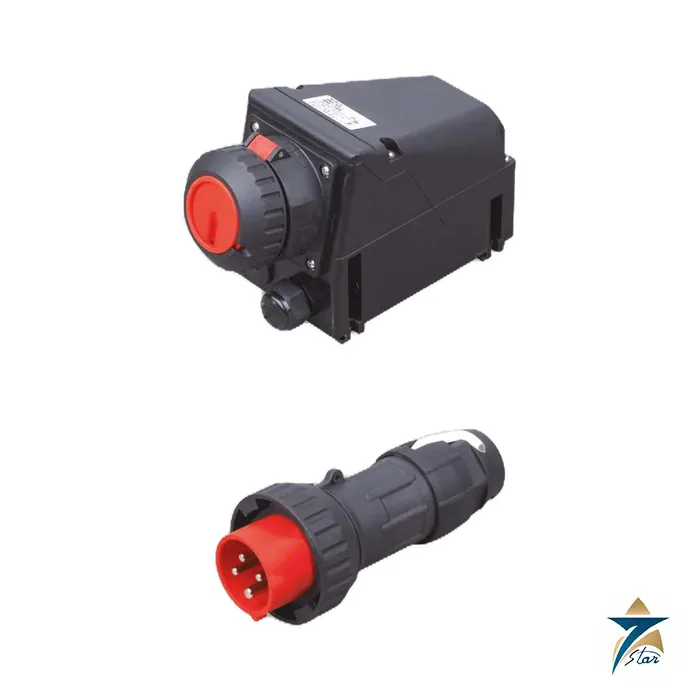

The Cortem CMBSP07 series are increased-safety plugs and sockets in glass-fibre reinforced polyester and nylon, rated 16 A, 32 A, 63 A and 125 A with 3, 4 or 5 poles for gas group IIC in Zones 1, 2, 21 and 22. An interlocked switch-disconnector means the plug can only be withdrawn after the switch is turned off and the switch can only be turned on after the plug is correctly inserted. A cable gland is included in the scope.

The plug pin has a spring-loaded elastic element that makes the contacts self-cleaning, keeps contact and insertion resistance low, limits temperature rise and reduces insertion and extraction force. GRP construction suits coastal, offshore and chemical sites where aluminium sockets corrode, and the antistatic socket enclosure resists 7 J impact.

Technical specifications of the CMBSP07 series

Parameter	Specification
Manufacturer	Cortem S.p.A., Italy
Classification	Group II, category 2GD; Zones 1, 2, 21, 22
Marking	II 2 GD Ex db eb IIC T6/T5/T4 Gb; Ex tb IIIC T80 °C Db
Certificates	ATEX CY 25 ATEX 0207540X; IECEx CQM 25.0032X; INMETRO DNV 25.0219X
Temperature class, gas	16 A: T6/T5; 32 A: T5; 63 A: T5/T4; 125 A: T4
Surface temperature, dust	T80 °C for all ratings
Ambient temperature	-45 to +50 °C (+65 °C, see certificate table)
Degree of protection	IP66
Rated current	16 A, 32 A, 63 A, 125 A
Rated voltage	DC 20-25, 36-50, 50-250 V; AC 20-25, 36-50, 100-130, 200-250, 380-415, 480-500, 600-690 V
Enclosure material	Socket: antistatic GRP, 7 J impact; plug: nylon PA66
Weight	16 A: 1.9 kg; 32 A: 2.8 kg; 63 A: 9.9 kg
Standards	IEC 60079-0, -1, -7, -31; Directive 2014/34/EU

Cable entries and ordering code

Each socket has two inlets and the plug one; the table shows the thread and cable outside diameters from the datasheet.

Rating	Socket inlet thread	Socket cable OD (mm)	Plug cable OD (mm)	Wire (mm2)
16 A	2 x M25x1.5	8 to 14	16A/3: 7 to 16; 16A/4 and 5: 9 to 19	2.5 to 4
32 A	2 x M40x1.5	15 to 26	12 to 28	6
63 A	2 x M50x1.5	19 to 36	19 to 28	16
125 A	2 x M63x1.5	37 to 44	34 to 53	35.5

The code reads CMBSP07-, then the current (16, 32, 63 or 125), the number of poles (2P, 3P for 2P+PE or 1P+N+PE, 4P for 3P+PE, 5P for 3P+N+PE), the model letter (T plug, Z socket, M panel-mount socket for 16 A and 32 A) and the voltage code from DC25 to AC690. The clock position and colour of the key follow the voltage, for example blue at 200-250 V, red at 380-415 V and black at 480-500 V.

What to confirm before ordering

State the rated current, number of poles, voltage and frequency, whether a plug, socket or panel-mount socket is needed, the temperature class for the ambient, and the cable diameter so the included gland matches. The datasheet advises reading the certificate table for the ambient limit above +50 °C. If a metal, aluminium Ex d-e socket is preferred, see the PYN and SPYN series from the same manufacturer.

Documents and quotation

The attached document is the Cortem CMBSP07 plugs and sockets datasheet (catalogue pages D.28-D.37, edition 2026) with outline drawings and wiring.

For a quotation, send the model code, voltage, zone and gas or dust group, cable entry details and quantity. See Automation Accessories for related hazardous-area equipment. Related hazardous-area equipment: Cortem EJBX stainless steel junction boxes.
