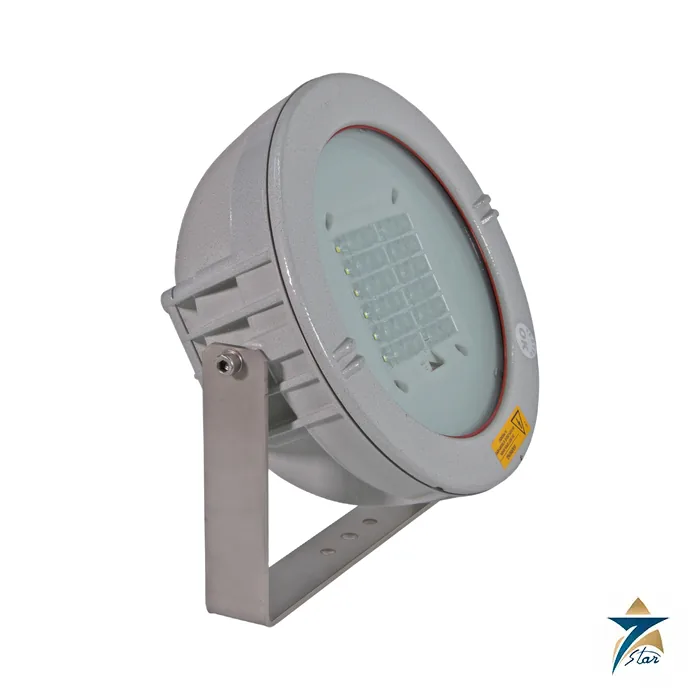

Cortem EVL-40 Ex LED Floodlight with 40 Degree Beam
Description
Compact finned LED floodlight in four sizes for Zone 1 and Zone 21 areas
The Cortem EVL-40 series is a range of LED floodlights for gas Zones 1 and 2 and dust Zones 21 and 22, in four body sizes. Cortem says the floodlights can replace traditional floodlights with low and medium power discharge lamps, and combine a light, compact body with high-efficiency LED plates and a lens that gives a 40 degree viewing angle.
The fixture is marked II 2GD Ex db eb op is IIC T… Gb and Ex tb op is IIIC T…°C Db, with ATEX certificate EPT 19 ATEX 3323 X and IECEx SEV 19.0043X. It can be fed by an ordinary cable and an Ex e gland, without a barrier, and an opposed plugged hole is available for through wiring. The shock-resistant tempered glass is rated IK11.
Technical specifications of the EVL-40 series
| Parameter | Specification |
|---|---|
| Manufacturer | Cortem S.p.A., Italy |
| Series | EVL-…-40 LED floodlights (sizes 060, 070, 080 and 100) |
| Marking | II 2GD Ex db eb op is IIC T… Gb; Ex tb op is IIIC T…°C Db |
| Certificates | ATEX EPT 19 ATEX 3323 X; IECEx SEV 19.0043X |
| Rated power | 40 to 220 W by model |
| Light output | About 4,167 to 24,007 lm |
| Viewing angle | 40° |
| Supply voltage | 120 to 277 VAC (060, 070, 080); 100 to 277 VAC (100); 50 to 60 Hz |
| Surge protection | 6 kV / 15 kV (6 kV / 10 kV for size 100) |
| Colour temperature / CRI | 5000 K (5700 K for size 070) / above 70 |
| L90 life | Above 109,000 h (sizes 060 to 080); above 60,000 h (size 100) |
| Ambient temperature | -40 to +60 °C; to -60 °C on request |
| Protection | IP66; glass IK11 |
| Body / bracket | Low-copper aluminium alloy with cooling fins, RAL 7035 / stainless steel |
| Cable entries | 2 x ISO M20; kit with PLG1IB plug and NAV20SIB gland |
| Weight | 3.5 to 11.2 kg by size |
Selection chart highlights
The selection chart in the catalogue lists the maximum permitted power, the temperature class and maximum surface temperature at 40, 50 and 60 degrees C ambient, lumens, candela, efficiency, weight and size. A few examples follow.
| Code | Power | Lumens | Efficiency | Temperature class / surface | Weight |
|---|---|---|---|---|---|
| EVL-060040-40 | 40 W | 4,167 lm | 104 lm/W | T6 / 85 °C at 40 °C | 3.5 kg |
| EVL-070060-40 | 60 W | 6,997 lm | 115 lm/W | T5 / 100 °C at 40 °C | 5.2 kg |
| EVL-080090-40 | 90 W | 11,368 lm | 125 lm/W | T4 / 135 °C at 40 °C | 7.2 kg |
| EVL-100140-40 | 140 W | 16,907 lm | 118 lm/W | T4 / 135 °C at 40 °C | 11.2 kg |
| EVL-100220-40 | 220 W | 24,007 lm | 108 lm/W | T4 / 135 °C at 40 °C | 11.2 kg |
Several larger power steps are limited to 40 degrees C ambient, shown as N/A for 50 and 60 degrees C in the chart, so check the chart for the actual site ambient.
Accessories and installation
Accessories listed include a dimmer, higher CRI or different colour temperature on request, a U-bolt for pole mounting, an eyebolt, a pole cover with direct connection, stanchion mounting with fixed 25 degree orientation, and an extra NAV20SIB gland for unarmoured cable. The driver provides over-voltage, over-current and short-circuit protection, and dimming is available by 0-10 V, PWM or resistor on request.
Install to EN 60079-14, choose the size so that the maximum surface temperature in the chart stays below the ignition temperature of the gas or dust present, and use certified glands and plugs. Keep the certificates and the temperature class selection with the plant records.
Documents and quotation
The attached document is the Cortem EVL-…-40 series LED floodlight datasheet from the Cortem lighting catalogue (pages A.12 to A.16, ED.2026). Certificates are published separately by Cortem.
For a quotation, send the full code, supply voltage and mounting accessory. For related items see Automation Accessories.
