Cortem EVML Ex LED Low Bay Luminaire, 15 to 50 W

Name: Cortem EVML Ex LED Low Bay Luminaire – Datasheet & Quote
Brand: Cortem
SKU: EVML

Description

Compact Ex low-bay LED luminaires for tight spaces, tanks and low-voltage supplies

The Cortem EVML series are low-bay LED luminaires for Zones 1, 2, 21 and 22, designed to replace incandescent equivalents at lower running cost. Cortem recommends them where obstruction must be limited, such as tunnels, passages, corridors, stairways and control cabins (code EVML-ME-060), and for lighting and monitoring hazardous material inside tanks and vessels through a porthole flange (codes EVML-ME-050…-O). A side-entry version (EVML-ME-060…L) reduces overall dimensions.

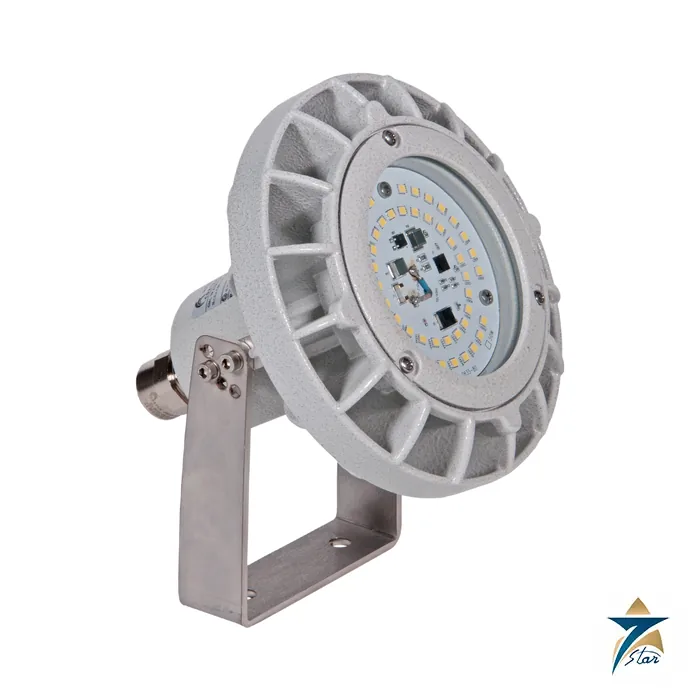

The finned body is a heat sink for the LED plate, the universal 316L stainless steel bracket sets the direction of light, and the flat tempered glass resists impact and high temperature. Marking is Ex eb mb IIC for gas and Ex tb IIIC for dust at IP66, with a wide choice of supplies from 12 V to 230 V.

Technical specifications of the EVML series

Parameter	Specification
Manufacturer	Cortem S.p.A., Italy
Classification	Group II, category 2GD; Zones 1, 2, 21, 22
Marking	II 2GD Ex eb mb IIC T.. Gb, Ex tb IIIC T..°C Db, IP66
Certificates	ATEX CML 19 ATEX 3019X; IECEx CML 19.0003X; INMETRO available
Ambient temperature	-60 to +40 °C, -60 to +50 °C or -60 to +60 °C; class by model
LED	Mid-power multichip, 120 degree angle, 5000 K, CRI 80, instant restrike, L70 above 60000 h
Connection	Terminals L, N, PE, 2.5 mm2
Driver data	Power factor above 0.95; THD below 25%; surge 0.5 to 1 kV
Body, glass, bracket	Low-copper aluminium alloy RAL 7035; tempered glass; AISI 316L bracket; stainless steel screws
Entry	1 x ISO M16 supplied with NAV16IB cable gland
Standards	EN 60079-0:2018, -7, -18, -31; EMC, WEEE and RoHS directives

Selection chart and output

The 060 body measures 180x170x170 mm and weighs 1.2 kg. Temperature class and surface temperature are shown at Ta below +40 °C.

Code	Power and supply	Class / surface (°C)	Output
EVML-ME-060015	15 W, 230 Vac	T4 / 95	1847 lm, 749 cd
EVML-ME-060030	30 W, 230 Vac	T5 / 91	2913 lm, 1234 cd
EVML-ME-060050	50 W, 230 Vac	T5 / 91	4023 lm, 1705 cd
EVML-ME-060015-12	15 W, 12 Vac/dc	T6 / 66	1365 lm (dc), 565 cd
EVML-ME-060015-24D	15 W, 24 Vdc	T6 / 66	1458 lm, 371 cd
EVML-ME-060015-24A	15 W, 24 Vac	T6 / 64	1092 lm, 368 cd
EVML-ME-060015-48D	15 W, 48 Vdc	T5 / 81	1361 lm, 569 cd
EVML-ME-060015-48A	15 W, 48 Vac	T6 / 77	1256 lm, 373 cd
EVML-ME-060015-110	12 W, 110 Vac/dc	T6 / 64	720 lm, 287 cd

Tank inspection and obstruction versions, and what to confirm

For vessels, EVML-ME-050015-…-O10, -O12, -O15 and -O20 couple to round windows to DIN 28120 with nominal sizes 100, 125, 150 and 200 mm. Obstruction and signalling versions EVML-ME-050015-…-G carry a globe in amber (GG), red (GR), green (GV), blue (GB) or clear (GI) and can replace acoustic signals where those are not suitable. Voltage suffixes are none for 230 Vac, 110, 12, 24D, 24A, 48D and 48A. Accessories include a U-bolt for pole mounting and other colour temperatures.

Before ordering confirm the zone, the supply voltage, rear or side entry, the ambient temperature against the class table, the porthole size for tank use, and the mounting method.

Documents and quotation

The attached document is the Cortem EVML low bay LED luminaire datasheet (catalogue pages A.1-A.7 and following, edition 2026); the file also contains the MSU signalling sheet.

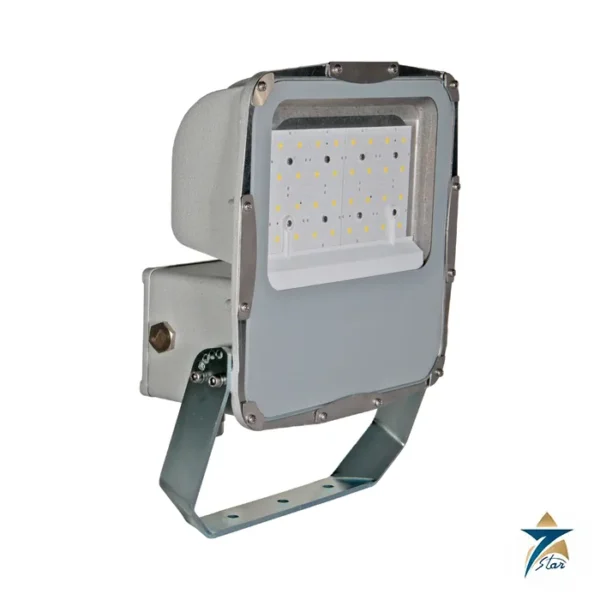

For a quotation, send the model code, voltage, zone and gas or dust group, cable entry details and quantity. See Automation Accessories for related hazardous-area equipment. Related hazardous-area equipment: Cortem SLED-ME LED floodlight.
