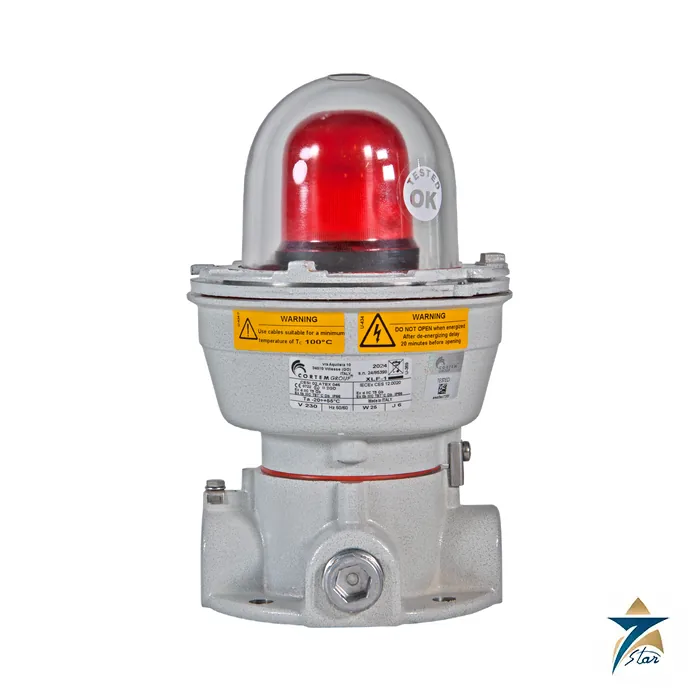

Cortem XLF Ex d Xenon Strobe Obstruction Light
Description
Ex d xenon strobe obstruction lights for stacks, towers, cranes and jetties
The Cortem XLF series are flameproof xenon obstruction lighting fixtures with a stroboscopic flash of about 30 flashes per minute, available as single or double fixtures. Cortem names chimneys, towers, smokestacks, bell towers, cranes, bridges, radio and television masts, power line pylons, wind turbines and telecommunication antennas, with particular use in the petrochemical and oil industries. The small size and low profile of the body give low wind resistance and limit the deposit of industrial dust.
The body is low-copper aluminium alloy with a borosilicate glass globe that passes a 4 joule shock test; a Fresnel lens is not fitted. Fixtures are available clear or with a polycarbonate red diffuser, and other diffuser colours can be ordered. This series is the xenon strobe option alongside the LED XLFE medium and low intensity obstruction lights already listed on this site.
Technical specifications of the XLF series
| Parameter | Specification |
|---|---|
| Manufacturer | Cortem S.p.A., Italy |
| Classification | Group II, category 2GD; Zones 1, 2, 21, 22 |
| Marking | II 2GD Ex d IIC T5 Gb; Ex tb IIIC Db IP66 |
| Certificates | ATEX CESI 03 ATEX 046; IECEx CES 12.0020 |
| Temperature class | 100 °C (T5) |
| Ambient temperature | -20 to +55 °C; special version -50 to +55 °C |
| Lamp | Stroboscopic xenon, about 30 flashes/min, 6 J or 16 J with electronic module; E27 ceramic holder |
| Rated voltage | 24 Vac/dc, 110 Vac, 230 Vac; 50/60 Hz; power factor 0.96 |
| Connection | Direct to lamp holder L, N, PE up to 4 mm2; double fixtures (XLF-….2) wired and sealed to a junction box |
| Wiring | Silicone rubber cables with glass braid |
| Body and globe | Low-copper aluminium alloy RAL 7035; borosilicate glass with aluminium ring; polycarbonate diffuser |
| Entries | 4 x 3/4 inch NPT |
| Degree of protection | IP66 |
| Standards | EN 60079-0, -1, -7, -31; EN 60598-1 and 60598-2-1; EMC, WEEE and RoHS directives |
Selection chart and ordering code
The code reads XLF-, then the energy (1 for 6 J or 2 for 16 J), the colour (blank for no diffuser, R for red), the voltage (024 for 24 V ac/dc, 110, 230) and the number of heads (1 or 2). Examples are XLF-12301 (6 J clear, 230 Vac, single) and XLF-2R1102 (16 J red, 110 Vac, double).
| Version | Codes (24 V / 110 V / 230 V) | Weight (kg) | Size (mm) |
|---|---|---|---|
| Single, no diffuser | XLF-10241 / 11101 / 12301 (6 J); XLF-20241 / 21101 / 22301 (16 J) | 2.15 | 160x150x330 |
| Single, red | XLF-1R0241 / 1R1101 / 1R2301 (6 J); XLF-2R0241 / 2R1101 / 2R2301 (16 J) | 2.40 | 160x150x330 |
| Double, no diffuser | XLF-10242 / 11102 / 12302 (6 J); XLF-20242 / 21102 / 22302 (16 J) | 5.00 | 440x175x425 |
| Double, red | XLF-1R0242 / 1R1102 / 1R2302 (6 J); XLF-2R0242 / 2R1102 / 2R2302 (16 J) | 5.00 | 440x175x425 |
Accessories and what to confirm before ordering
Options include NEVB2NB (armoured) or NAVB2NB (unarmoured) barrier cable glands, a conduit or pendant mounting model (XLFS-1V1101), a special Ex de marking version (XLFE-1V1101), an Ex or IP66 control panel with electronic modules, ISO 7-1 gas threads, and orange, yellow, green or blue diffusers. Spare parts include the glass globe G50-0389FCM, coloured diffusers (TRASP series) and a silicone O-ring.
Confirm the required flash energy and light colour with the obstruction-lighting rules that apply to the structure, the supply voltage, mounting (structure, conduit or pendant), single or double head, and the cable entry arrangement. Obstruction-lighting regulations differ by country and are not stated in the datasheet.
Documents and quotation
The attached document is the Cortem XLF xenon obstruction lighting fixtures datasheet (catalogue pages B.30-B.37, edition 2025).
For a quotation, send the model code, voltage, zone and gas or dust group, cable entry details and quantity. See Automation Accessories for related hazardous-area equipment. Related hazardous-area equipment: Cortem XLFE-MIA obstruction light.
