Brand: Victaulic

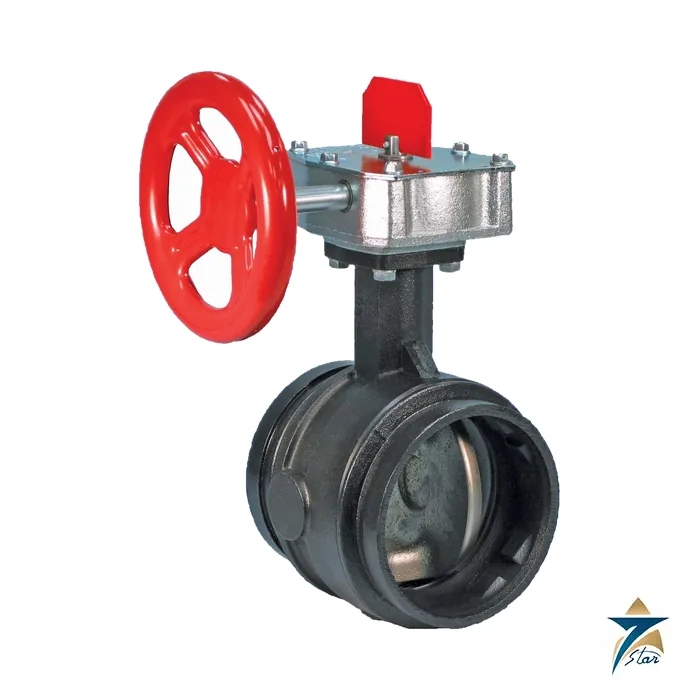

Victaulic FireLock Series 705 Butterfly Valve, Supervised Open
Description
Supervised-open FireLock butterfly valve with weatherproof actuator
The Victaulic FireLock Series 705 is a grooved-end butterfly valve designed for fire protection services only. It has a weatherproof handwheel actuator housing for indoor and outdoor use and is designed to be supervised open, which suits fire protection systems where the position of the control valve must be monitored. Butterfly control valves of this type are used on sprinkler risers, fire pump lines and system branches. The grooved ends connect with Victaulic couplings, which removes the need for flanges on many fire mains.
The body and disc are ductile iron with an electroless nickel coated disc and an EPDM seat. Sizes run from 2 to 12 in. (DN50 to DN300), and the valve is rated up to 300 psi (21 bar).
Technical specifications
Values are from Victaulic publication 10.81 (Rev P, updated 01/2026).
| Parameter | Specification |
|---|---|
| Type | FireLock butterfly valve with weatherproof actuator, supervised open, Series 705 |
| Sizes | 2 to 12 in. / DN50 to DN300 |
| Maximum working pressure | Up to 300 psi / 2068 kPa / 21 bar |
| Service | Fire protection services only |
| Pipe | Carbon steel, Schedule 10 and Schedule 40, with OGS grooved ends |
| Operator | Handwheel, in a weatherproof actuator housing |
| Body | Ductile iron ASTM A536 Grade 65-45-12, black alkyd enamel |
| Disc | Ductile iron with electroless nickel (ASTM B733) |
| Seat and stem seals | EPDM |
| Stem | 416 stainless steel (ASTM A582); brass C36000 seal cartridge |
| Actuator internals | Bronze traveling nut on steel lead screw (2 to 8 in.); steel worm and cast iron quadrant gear (10 to 12 in.) |
| Listings in leaflet | cULus, FM, VdS and LPCB service pressures of 300 psi for the sizes tabulated; LPCB LPS 1185 certificate shown |
Flow data and weights
Cv in US gpm and Kv in m3/h for water at 60 F, fully open, the equivalent length of straight pipe, and approximate weight:
| Nominal size, in. / DN | Cv / Kv, fully open | Equivalent pipe length, ft / m | Weight, lb / kg |
|---|---|---|---|
| 2 / DN50 | 170 / 147 | 6 / 1.8 | 8.2 / 3.7 |
| 3 / DN80 | 440 / 380 | 7 / 2.1 | 10.7 / 4.9 |
| 4 / DN100 | 820 / 710 | 8 / 2.4 | 14.0 / 6.4 |
| 5 / DN125 | 1200 / 1040 | 12 / 3.7 | 25.4 / 11.5 |
| 6 / DN150 | 1800 / 1560 | 14 / 4.3 | 28.7 / 13.0 |
| 8 / DN200 | 3400 / 2940 | 16 / 4.9 | 43.0 / 19.5 |
| 10 / DN250 | 5800 / 5020 | 18 / 5.5 | 80.6 / 36.6 |
| 12 / DN300 | 9000 / 7790 | 19 / 5.8 | 94.6 / 42.9 |
Selection and installation notes
The listing table shows which sizes carry each approval at 300 psi; VdS is not listed for some sizes (for example 2-1/2, 5, 10 and 12 in.), so check the leaflet against the project specification before ordering. An optional 1/2 in. tap is available on all sizes. Keep the valve supervised open and follow the installation instructions with the system depressurized and drained. Related items include Victaulic Style 107N couplings; more fire protection valves are under Fire Fighting.
Documents and quotation
The attached Victaulic publication 10.81 holds the approval table, dimensions, material list and flow data. For a quotation, send the size, required approval (cULus, FM, VdS or LPCB), and quantity.
Datasheets & Documents
- Datasheet Victaulic publication 10.81 FireLock Series 705 butterfly valve (Rev P) Download
Reviews (0)
About brand
Grooved pipe joining started with Victaulic in 1919, and the company, based in Easton, USA, still sets the reference for couplings that join pipe without welding or flanges. Seven Star LLC lists Victaulic couplings and butterfly valves, among them the Style 107N QuickVic rigid coupling, and supplies Victaulic couplings and fittings for mechanical, utility and process piping in Oman on inquiry.
Victaulic Style 107N QuickVic couplings
The Style 107N is a rigid coupling for roll-grooved or cut-grooved carbon steel and stainless steel pipe in sizes from 2 to 12 inches (DN 50 to DN 300). Victaulic rates it from full vacuum up to 750 psi (5171 kPa), but the working pressure of a given joint depends on pipe material, wall thickness and size. The housing has an angled bolt pad that makes the joint rigid, and a galvanized finish is optional.
Where Victaulic couplings are used and what to send
The manufacturer names HVAC, utility and process piping as the applications for this style. For an inquiry, send the style number, nominal size, pipe material and schedule, the fluid and temperature so the gasket grade can be checked, the housing finish and the quantity. GCC consultants often ask for the submittal sheet, which we provide from the manufacturer.
Browse Victaulic products by category: Pipes & Fittings.
Related products
Frequently Asked Questions
What is the Victaulic Series 705 used for?
It is a grooved butterfly valve for fire protection services only, designed to be supervised open.
What sizes and pressure does it cover?
2 to 12 in. (DN50 to DN300), up to 300 psi (21 bar).
How is it operated?
By a handwheel in a weatherproof actuator housing that suits indoor and outdoor use.
Which approvals are listed?
The leaflet lists cULus, FM, VdS and LPCB service pressures by size, and shows an LPCB LPS 1185 certificate.
What is the seat material?
EPDM seat and stem seals, with a nickel-coated ductile iron disc.
