Brand: NAFFCO

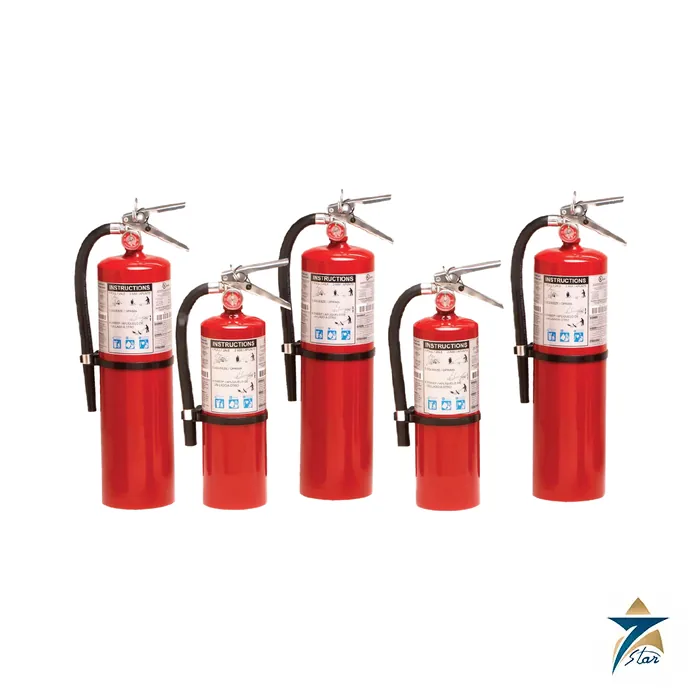

NAFFCO NP Series UL Listed ABC Dry Powder Fire Extinguishers
Description
UL-rated ABC dry powder extinguishers from 2.5 lb to 20 lb
The NAFFCO NP series are stored-pressure ABC dry chemical portable extinguishers carrying the UL mark on the manufacturer datasheet. The four sizes, NP 2.5L, NP 05L, NP 10L and NP 20L, share the same construction and differ in agent capacity, UL rating and discharge time. The datasheet describes them as suitable for freely burning materials, petrol, oil, gas and electrical equipment, and as ideal for vehicle and marine risks.
Technical specifications
| Parameter | NP 2.5L | NP 05L | NP 10L | NP 20L |
|---|---|---|---|---|
| Agent capacity | 2.5 lb (1.13 kg) | 5 lb (2.27 kg) | 10 lb (4.54 kg) | 20 lb (9.07 kg) |
| UL rating | 1-A:10-B:C | 3-A:30-B:C | 4-A:60-B:C | 6-A:80-B:C |
| Discharge time | 10 s | 14 s | 20 s | 30 s |
| Range | 11 ft / 3.4 m | 14 ft / 4.3 m | 20 ft / 6.1 m | 22 ft / 6.7 m |
| Cylinder diameter | 85 mm | 110 mm | 140 mm | 182 mm |
| Extinguisher weight | 2.23 kg | 4.44 kg | 7.63 kg | 13.86 kg |
| Packing size (L x W x H) | 95 x 150 x 380 mm | 120 x 170 x 460 mm | 150 x 180 x 530 mm | 210 x 190 x 620 mm |
| Parameter | Specification |
|---|---|
| Fire classes | A, B and C (ABC dry chemical, multipurpose) |
| Operating pressure | 195 psi (13.4 bar) |
| Operating temperature | -40 to +49 degC |
| Cylinder material | Steel sheet |
| Valve | Extruded brass, chrome plated, with high tensile deep-draw cylinder; head valve also available in brass or aluminium (specify at time of order) |
| Bracket | Wall bracket |
| Leak test and quality | 100 % helium leak detected; produced under an ISO 9001 quality system |
Where these extinguishers fit
The datasheet lists public areas such as offices, classrooms, parking garages and hotel assembly halls, and businesses such as retail stores, light manufacturing facilities, research facilities, car showrooms, vehicle, aircraft and marine service centres, and painting, dipping and coating processes. It states that the extinguishers are not suitable for fires involving cooking oil and grease and are not recommended on sensitive electronic equipment or aircraft structure, so kitchens call for a wet chemical unit and server rooms for a clean agent or CO2 unit instead.
What to confirm before ordering
These are UL-rated units. If your project specifies EN 3 or a local civil defence approval, confirm the required certification with the supplier before ordering, because NAFFCO lists separate Kitemark-approved dry powder extinguishers. Also confirm the size, valve material, bracket and any signage. Other fire-fighting equipment is listed under Fire Fighting.
Documents and quotation
The attached NAFFCO dry powder fire extinguishers datasheet gives the full specification table for all four sizes. For a quotation, state the sizes and quantities, the required approval and the delivery location.
Datasheets & Documents
- Datasheet NAFFCO dry powder fire extinguishers datasheet (NP 2.5L, 05L, 10L, 20L; UL) Download
Reviews (0)
About brand
NAFFCO, founded in 1991 in Dubai, United Arab Emirates, manufactures fire fighting equipment, from extinguishers and hose cabinets to pumps and riser valves. Seven Star LLC lists NAFFCO extinguishers, hose reels, hydrants and landing valves, among them two oblique landing valves to BS 5041, the NDR 097 with threaded inlet and the NDR 098 with flanged inlet, and supplies NAFFCO fire fighting products to contractors and building owners in Oman.
NAFFCO landing valves and riser equipment
A landing valve is the outlet on a wet riser where the fire service connects a hose on each floor. NAFFCO groups its landing valves into a Kitemark and LPCB approved line and a separate FM approved line, so the approval is tied to the model, not to the brand as a whole. The NDR 097 and NDR 098 differ in how they join the riser branch: screwed or bolted.
Ordering NAFFCO equipment: what we need
Send the NAFFCO model number, the inlet type and size, the outlet coupling standard, and the approval your consultant or civil defense authority asks for. Add the riser working pressure and the quantity per floor. For other items, the model number from the NAFFCO datasheet is the best reference. We receive the same data from GCC projects outside Oman.
Related products
Frequently Asked Questions
What agent do the NAFFCO NP extinguishers use?
ABC dry chemical powder, suitable for Class A, B and C fires.
What is the UL rating of the NP 10L?
4-A:60-B:C, with a 4.54 kg (10 lb) agent capacity and 20 s discharge time.
What is the operating pressure?
195 psi (13.4 bar) stored pressure.
What temperature range is stated?
-40 to +49 degC.
Can they be used on cooking oil fires?
No. The datasheet says they are not suitable for fires involving cooking oil and grease.
