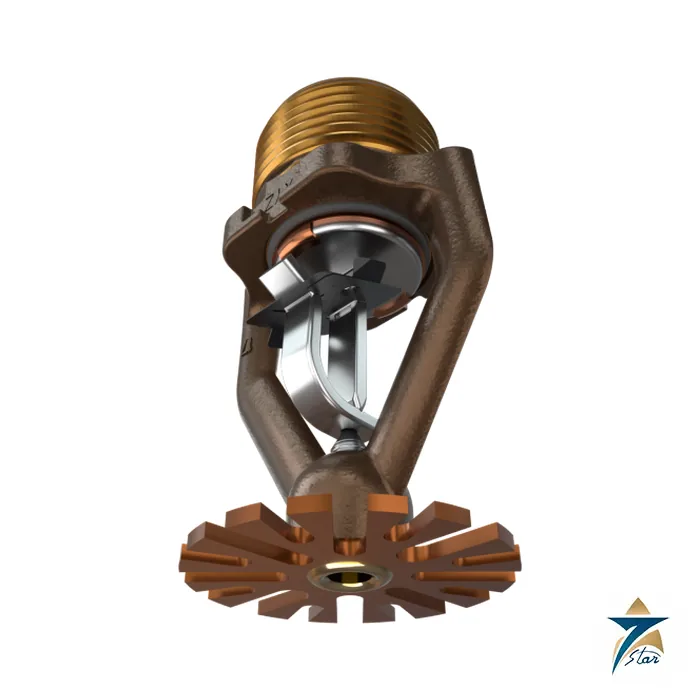

Viking VK506 K22.4 ESFR Pendent Sprinkler for High-Piled Storage
Description
K22.4 ESFR performance at lower end-head pressure
The Viking VK506 is a K22.4 (320 metric) ESFR pendent sprinkler, available since 2013 according to Viking. The larger orifice allows ESFR performance at lower end-head pressures than K14 heads, which can reduce or remove the need for a fire pump and gives the designer more freedom when sizing piping. Viking says it can eliminate in-rack sprinklers for specified high-piled storage up to 40 ft (12.2 m) under ceilings up to 45 ft (13.7 m) under UL, and up to 45 ft (13.7 m) under ceilings up to 50 ft (15.2 m) under FM.
It targets severe-challenge storage: palletized and solid-pile, plus single-row, double-row, multiple-row and portable open-rack arrangements without open-top containers or solid shelves. The datasheet adds that cULus lists it for cartoned unexpanded plastics while FM Approves cartoned and uncartoned unexpanded plastics and exposed expanded polystyrene and polyurethane.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Viking, VK506 ESFR pendent sprinkler |
| SIN | VK506 |
| Nominal K-factor | 22.4 US (320 metric, bar) |
| Thread | 1 in NPT (part 18493) or 25 mm BSPT (part 18494) |
| Maximum working pressure | 175 psi (12 bar); factory test 500 psi (34.5 bar) |
| Overall length / deflector | 3-3/16 in (81 mm) / 1-3/4 in (44.5 mm) |
| Temperature ratings | 165 °F (74 °C), max ceiling 100 °F (38 °C), suffix C; 205 °F (96 °C), max ceiling 150 °F (66 °C), suffix E |
| Frame | Brass UNS-C84400 or CW602N |
| Other materials | Phosphor bronze deflector; copper and stainless steel seat |
| Printed listings | cULus Listed VNWH as a Specific Application ESFR sprinkler (UL 199 rack storage, ceiling clearance 20 ft or more); FM Approved Class 2026; CE CPR DOP_VK506 |
| System type | Wet pipe systems |
Viking supplies a version of the part with the protective cap for InstaSeal fittings, indicated by the “-TQ” suffix, for example 18493AE-TQ.
When K22.4 is the better fit
Choose a K22.4 design when hydraulic calculations show that a K14 or K16.8 head would need a booster pump to reach end-head pressure, or when larger piping runs make the lower pressure attractive. The trade-off is a heavier flow per sprinkler, so check the water storage and the supply capacity as well as the pipe size. The commodity and storage height must still match the VK506 listing tables printed in the datasheet.
Ordering follows the same three steps used across the range: base part number for the thread, finish suffix A for brass, then the temperature suffix. 18493AC is a 1 in NPT VK506 in brass at 165 °F.
Other Viking ESFR models
The same family covers K14 up to K28 pendent heads and a K25.2 dry pendent for freezers.
| Viking ESFR model | K-factor and type | Connection |
|---|---|---|
| VK500 | K14.0 ESFR pendent | 3/4 in NPT or 20 mm BSPT |
| VK503 | K16.8 ESFR pendent | 3/4 in NPT or 20 mm BSPT |
| VK510 | K25.2 ESFR pendent | 1 in NPT or 25 mm BSPT |
| VK514 | K28.0 ESFR pendent | 1 in NPT or 25 mm BSPT |
| VK512 | K25.2 ESFR dry pendent | 1-1/2 in grooved |
Confirming the order
Confirm NPT or BSPT thread, finish, temperature rating and the exact listing required by the insurer or authority before ordering. ESFR sprinklers are designed for wet pipe systems and for the storage types in the approval tables, so the design must be checked by the system designer. The attached Viking technical data contains the full commodity and design tables. Send your part number and quantity and we will quote; more equipment is in our Fire Fighting equipment range.
