Weflo Fig. 9266 Deluge Valve – Datasheet & Price Quote

Name: Weflo Fig. 9266 Deluge Valve – Datasheet & Price Quote
Brand: Weflo
SKU: Fig. 9266

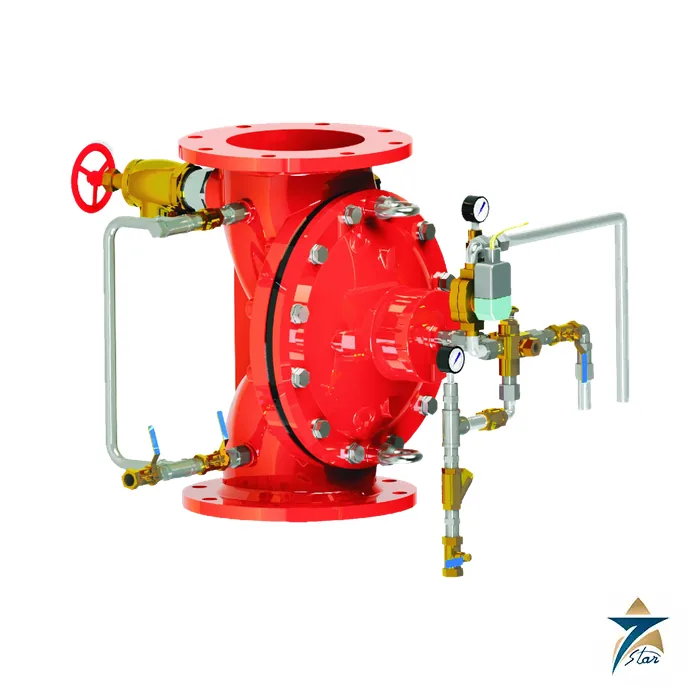

Diaphragm deluge valve for open-sprinkler and foam fire systems

The Weflo Fig. 9266 is a UL listed deluge valve that holds water back from an open-head sprinkler or spray system until a detection or manual release trips it. It is a diaphragm-type main valve with a straight-through ductile iron body, so friction losses stay low at high flow, and there are no metallic wetted moving parts to wear or stick during long standby periods. It is used on high-hazard areas such as fuel storage, process units, transformer protection, aircraft hangars, offshore and naval installations and other flammable or explosion-classified zones where the whole system must discharge at once.

Release can be automatic or local manual, from an electrical signal trigger system with manual reset, and the valve may be installed vertically or horizontally. It can also be used on dry-pipe automatic sprinkler systems.

Technical specifications

Values are from the Weflo Fig. 9266 data sheet (UL listed; 3C certified).

Parameter	Specification
Type	Deluge valve, diaphragm main valve with trim
Sizes	2, 2-1/2, 3, 4, 5, 6, 8, 10 and 12 in. (dimension table)
End connections	Flange by flange, flange by groove, groove by groove; flanges drilled to EN 1092 PN10/16 or ANSI B16.1 Class 125; other flanges on request
Working pressure	20 to 300 psi
Approvals	UL listed (UL 260), 3C certified
Body and bonnet	Ductile iron ASTM A536 Grade 65-45-12
Bonnet fasteners	Carbon steel ASTM A307 Grade B
Diaphragm	Nylon-reinforced natural rubber, EPDM or NBR
Spring	Stainless steel ASTM A276 Type 304
Coating	Fusion bonded epoxy, interior and exterior, to AWWA C550
Trim materials	304 SS tube, malleable iron fittings, brass ball valve, solenoid valve, check valve, Y-strainer, angle valve, water relay and drip valve; pressure gauge assembly
Orientation	Vertical or horizontal installation

Dimensions and selection

Face-to-face length L and trim heights from the data sheet are given below; L3 to L5 and the 2-1/2 in., 5 in. sizes are in the PDF.

Size	L, mm / in.	L1, mm / in.	L2, mm / in.
2 in.	233 / 9.2	345 / 13.6	270 / 10.6
3 in.	310 / 12.2	345 / 13.6	270 / 10.6
4 in.	356 / 14.0	345 / 13.6	270 / 10.6
6 in.	436 / 17.2	345 / 13.6	270 / 10.6
8 in.	530 / 20.9	345 / 13.6	280 / 11.0
10 in.	636 / 25.0	365 / 14.4	320 / 12.6
12 in.	835 / 32.9	465 / 18.3	410 / 16.1

Choose the end connection to suit the pipework (flanged or grooved), and confirm the release arrangement (electric solenoid, pneumatic, hydraulic or manual) and the required trim before ordering. Working pressure starts at 20 psi, so low-pressure supplies should be checked against that minimum. A related pre-action valve using the same main valve is described under Fig. 5311 in the same catalogue.

Documents and quotation

The attached data sheet carries the material tables, trim list and the full dimension table. For a quotation, send the size, end connections, release type, approvals needed and quantity. More fire protection valves are grouped under Fire Fighting, and a general check valve from the same maker is the Weflo Fig. 5306 wafer double door check valve.

Weflo valve families

The manufacturer program covers OS&Y and NRS gate valves, fire hydrants, check and alarm check valves, butterfly valves, deluge, pre-action, pressure relief and pressure reducing valves, Y and basket strainers, and air relief valves. Weflo states that its OS&Y and NRS gate valves are UL listed and FM approved through 24 inches. Products are identified by figure number, as with the Fig. 1209 balancing valve in our listing.

Ordering Weflo valves: what we need

Send the figure number, size, end connection and flange standard, pressure rating, the medium, and the listing or approval the project specification demands. Approvals apply per figure and size, so we check each line against the manufacturer datasheet. GCC civil defense requirements should be quoted in the request.
