Brand: Viking

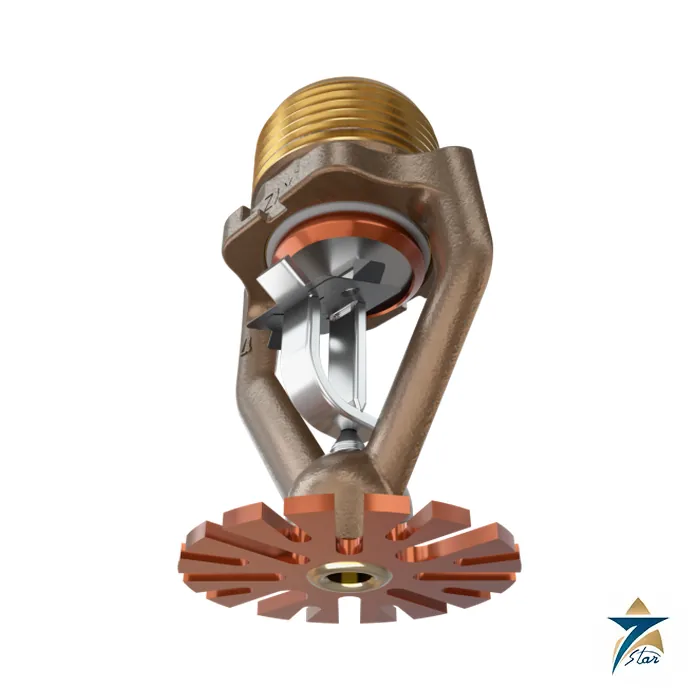

Viking VK510 K25.2 ESFR Pendent Sprinkler for 40 ft Storage
Description
K25.2 ESFR sprinkler for greater storage heights
The Viking VK510 is an ESFR pendent sprinkler with a nominal K-factor of 25.2 (363 metric) and a 1 in inlet. Viking describes it as able to protect higher-hazard commodities at greater ceiling heights with lower end-head pressures, to reduce or eliminate a system fire pump and to remove in-rack sprinklers for specified storage up to 40 ft (12.2 m) with ceilings up to 45 ft (13.7 m) under UL, or 45 ft (13.7 m) with ceilings up to 50 ft (15.2 m) under FM. Under NFPA 13 it is a Special Sprinkler as defined in the 2022 edition, section 15.2.
It is primarily intended for severe-challenge storage on pallets, solid piles and open racks, and the bulletin states a minimum aisle width of 6 ft for the 40 ft UL or 45 ft FM storage cases. cULus lists it for cartoned nonexpanded Group A plastics and FM Approves it for cartoned unexpanded plastics.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Viking, VK510 ESFR pendent sprinkler |
| SIN | VK510 |
| Nominal K-factor | 25.2 US (363 metric, bar) |
| Thread | 1 in NPT or 25 mm BSPT |
| Maximum working pressure | 175 psi (12 bar); factory test 500 psi (34.5 bar) |
| Overall length / deflector diameter | 3-3/16 in (81 mm) / 1-3/4 in (45 mm) |
| Temperature ratings | 165 °F (74 °C) and 205 °F (96 °C); 205 °F element for ceilings up to 150 °F (66 °C) |
| Frame casting | Brass UNS-C84400 |
| Deflector / seat | Phosphor bronze UNS-C51000 / copper UNS-C11000 and stainless steel UNS-S30400 |
| Compression screw / trigger | Stainless steel UNS-S31603 / UNS-S31600 |
| Fusible element | Beryllium nickel, black acrylic paint |
| Printed listings | cULus Listed VNWH; FM Approved Class 2026; VdS G4040015; LPCB 096g/01; China GB |
| Maximum installation torque | 30 ft-lb, hand tight plus about two turns of the wrench |
| System type | Wet pipe only |
Base parts listed are 12080 (1 in NPT), 12200 (25 mm BSPT) and 20373 (25 mm BSPT), with “-TQ” versions for InstaSeal fittings.
Ordering and installation points
For example, 12080AC is a VK510 with brass finish and the 165 °F element, for ambient ceiling temperatures up to 100 °F (38 °C). The sprinkler wrench is 13635W/B, using side B. Viking requires the pipe to be in place and supported before sprinklers are installed, forbids using the deflector or fusible element to start the thread and says the protective caps must be removed by hand before the system goes into service.
The design columns specify 8 to 10 ft spacing, 64 to 100 sq ft per sprinkler and a deflector at least 36 in above the storage top.
Other Viking ESFR models
If the storage is lower or the supply differs, other K-factors may suit better.
| Viking ESFR model | K-factor and type | Connection |
|---|---|---|
| VK500 | K14.0 ESFR pendent | 3/4 in NPT or 20 mm BSPT |
| VK503 | K16.8 ESFR pendent | 3/4 in NPT or 20 mm BSPT |
| VK506 | K22.4 ESFR pendent | 1 in NPT or 25 mm BSPT |
| VK514 | K28.0 ESFR pendent | 1 in NPT or 25 mm BSPT |
| VK512 | K25.2 ESFR dry pendent | 1-1/2 in grooved |
Confirm before ordering
Check the exact listing needed for the storage commodity, aisle width and height, the thread standard, finish and temperature rating, and whether the project requires VdS or LPCB certificates in addition to cULus and FM. The VK510 is not a drop-in replacement for lower K-factor heads. The attached Viking bulletin includes the approval charts and design tables. For quotation, send part number, quantity and destination, and browse our Fire Fighting equipment.
Datasheets & Documents
- Datasheet Viking VK510 ESFR pendent sprinkler technical bulletin, Form F_121022 Rev 03 Download
Reviews (0)
About brand
Viking is a fire protection manufacturer headquartered in Caledonia, Michigan, in the United States. Its range covers fire sprinklers, wet, dry and deluge valves, foam systems, special hazard products, CPVC piping and release control panels for commercial and industrial buildings. Seven Star LLC lists selected Viking products together with the technical data published by the manufacturer.
Viking product ranges
Viking sprinklers run from standard and extended coverage heads to storage sprinklers such as the ESFR family, residential and dry barrel types. The valves and systems range includes wet pipe, dry pipe and deluge or preaction equipment, accelerators and flow control valves. Viking foam products include proportioners, discharge devices and high expansion foam generators, while Oxeo is its clean agent system.
Documents and quotation
Each Viking product page links the manufacturer technical data, which lists approvals, dimensions, materials and part numbers. Send the Viking part number, quantity and delivery location with your request, and Seven Star LLC will prepare a quotation from its base in Muscat, Oman.
Related products
Frequently Asked Questions
What is the K-factor of the Viking VK510?
Nominal K-factor 25.2 US (363 metric), with a 1 in NPT or 25 mm BSPT inlet.
What storage height does Viking state for the VK510?
Under UL up to 40 ft (12.2 m) of storage with ceilings up to 45 ft (13.7 m); under FM up to 45 ft (13.7 m) with ceilings up to 50 ft (15.2 m), subject to Viking tables.
Which certificates are printed for the VK510?
cULus VNWH, FM Approved Class 2026, VdS G4040015, LPCB 096g/01 and China GB approval.
What wrench should be used for the VK510?
Viking specifies sprinkler wrench 13635W/B, using side B.
Can the VK510 be used in a dry pipe system?
No. The bulletin lists wet pipe systems only.
