Victaulic Series 761 Vic-300 MasterSeal Butterfly Valve
Description
Grooved-end butterfly valve with a MasterSeal elastomer seat

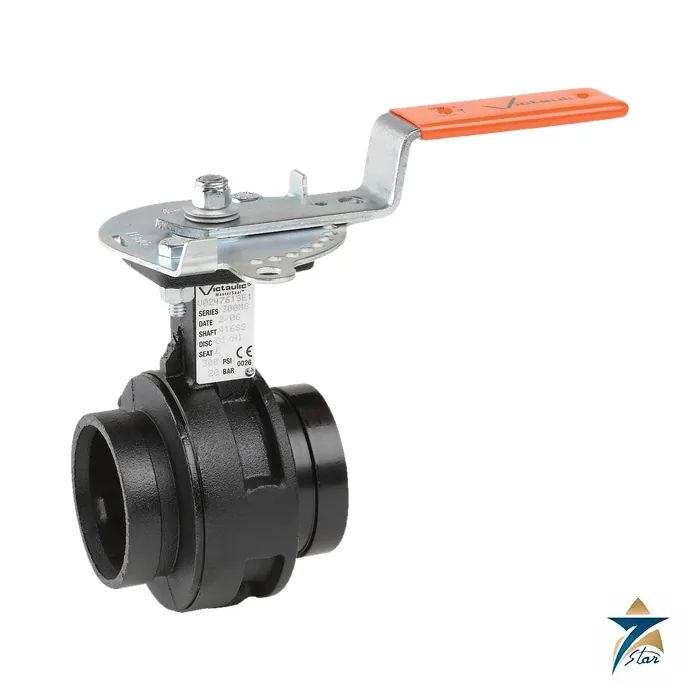

The Victaulic Series 761 Vic-300 MasterSeal is a grooved-end butterfly valve for isolation and throttling in building services and industrial water systems. The valve has a ductile iron body, a nickel-coated ductile iron disc and a molded elastomer seat that seals bi-directionally at full working pressure, including in dead-end service. Grooved ends are joined to the pipe with Victaulic couplings, so the valve can be installed without flanges, gaskets or welding, which saves time on chilled water, hot water, condenser water and process pipework.
Several operators are offered: a 10-position handle for 2 to 6 in. (DN50 to DN150), a lever lock handle for 8 to 12 in. (DN200 to DN300), and a gear operator for the full range. A standard ISO 5211 mounting flange, with an optional diagonal square head drive, allows electric or pneumatic actuators to be fitted.
Technical specifications
Values are from Victaulic publication 08.20 (Rev W, updated 05/2023).
| Parameter | Specification |
|---|---|
| Type | Grooved-end resilient-seated butterfly valve, Series 761 (Vic-300 MasterSeal) |
| Sizes | 2 to 12 in. / DN50 to DN300 |
| Maximum working pressure | Full vacuum (29.9 in Hg) up to 300 psi / 2100 kPa / 21 bar; bi-directional, dead-end service |
| Test pressure | Up to 1-1/2 times working pressure, one-time system test at ambient conditions |
| Body | Ductile iron ASTM A536 Grade 65-45-12, black coating |
| Disc | Ductile iron with electroless nickel (ASTM B733); stainless steel CF8M optional; aluminum bronze C95500 optional for 2 to 6 in. |
| Seat, EPDM (green) | -30 to +230 F / -34 to +110 C; not recommended for petroleum or steam |
| Seat, nitrile (orange) | +10 to +150 F / -12 to +65 C; not recommended for hot water or steam |
| Seat, fluoroelastomer (blue) | +20 to +300 F / -7 to +149 C; not recommended for steam |
| Stem | 416 stainless steel (ASTM A582); 17-4PH optional |
| Seat leakage | Closure/seat leakage rate A per EN 12266-1, EN 1074-1, EN 1074-2 and ISO 5208 |
| Standards | Construction and performance meet or exceed MSS-SP-67 |
| Mounting flange | ISO 5211: F07 for 2 to 8 in.; F10 for 10 and 12 in. |
Flow coefficients and weights
Cv in US gpm and Kv in m3/h for water at 60 F (16 C), fully open, with bare valve weight. The leaflet also gives values at 70, 60, 50, 40 and 30 degrees of opening and operating torque tables.
| Nominal size, in. / DN | Cv / Kv, fully open | Bare valve weight, lb / kg |
|---|---|---|
| 2 / DN50 | 115 / 99 | 3.5 / 1.6 |
| 3 / DN80 | 440 / 379 | 6.0 / 2.7 |
| 4 / DN100 | 820 / 707 | 9.3 / 4.2 |
| 5 / DN125 | 1200 / 1034 | 16.8 / 7.6 |
| 6 / DN150 | 1800 / 1552 | 20.0 / 9.1 |
| 8 / DN200 | 3400 / 2931 | 34.3 / 15.6 |
| 10 / DN250 | 5800 / 5000 | 72.0 / 32.7 |
| 12 / DN300 | 9000 / 7758 | 88.0 / 39.9 |
Selection and installation notes
Select the seat for the fluid and temperature, and the operator for the size and duty. The valve is meant for carbon steel, ductile iron and plastic piping; the leaflet does not recommend it for potable water systems with stainless steel piping or copper tubing and points to the Series 461 and Series 608N valves for those. The handle types can be padlocked open or closed and have a memory stop, with tamper-resistant hardware optional. Pair the valve with grooved couplings such as the Victaulic Style 107N; more valves are listed under Fittings and Valves.
Documents and quotation
The attached Victaulic publication 08.20 contains the dimension tables, flow characteristics, torque requirements and installation notes. Send the size, seat material, operator type and quantity for a quotation.
Datasheets & Documents
- Datasheet Victaulic publication 08.20 Series 761 Vic-300 MasterSeal butterfly valve (Rev W) Download
Reviews (0)
About brand
Grooved pipe joining started with Victaulic in 1919, and the company, based in Easton, USA, still sets the reference for couplings that join pipe without welding or flanges. Seven Star LLC lists Victaulic couplings and butterfly valves, among them the Style 107N QuickVic rigid coupling, and supplies Victaulic couplings and fittings for mechanical, utility and process piping in Oman on inquiry.
Victaulic Style 107N QuickVic couplings
The Style 107N is a rigid coupling for roll-grooved or cut-grooved carbon steel and stainless steel pipe in sizes from 2 to 12 inches (DN 50 to DN 300). Victaulic rates it from full vacuum up to 750 psi (5171 kPa), but the working pressure of a given joint depends on pipe material, wall thickness and size. The housing has an angled bolt pad that makes the joint rigid, and a galvanized finish is optional.
Where Victaulic couplings are used and what to send
The manufacturer names HVAC, utility and process piping as the applications for this style. For an inquiry, send the style number, nominal size, pipe material and schedule, the fluid and temperature so the gasket grade can be checked, the housing finish and the quantity. GCC consultants often ask for the submittal sheet, which we provide from the manufacturer.
