Brand: Minimax
Minimax OneU 19 Inch Rack Fire Detection and Extinguishing
Description
Fire protection that fits in one rack unit

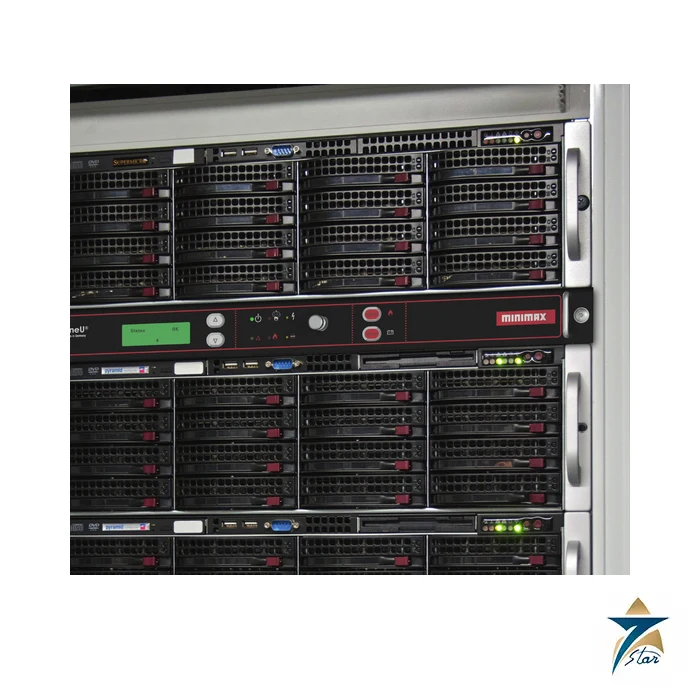

The Minimax OneU fire protection system is designed specifically for installation in closed 19 inch IT racks. Conventional systems need up to three rack units, while OneU needs a single unit of 44 mm height and leaves the rest for IT equipment. Minimax states it is equal in function, quality and reliability to systems that need more space.
The OneU active extinguishing system is a stand-alone device for detecting and extinguishing fires in a closed rack. It is inserted into one of the slots in the top third of the rack and contains an aspirating smoke detector module, an MX 1230 extinguishing module, a power supply module with emergency power, detection and control electronics, monitored connections for alarm devices, floating contacts and a display and control panel.
Technical specifications
| Parameter | Specification |
|---|---|
| Dimensions | Width 483 mm (19 inch), height 44 mm (1U), depth 852 mm |
| Extinguishing module | MX 1230: pressureless container with FK 5-1-12 agent, propellant gas cartridge, leakage monitor, nozzle |
| Protected volume | Closed 19 inch rack up to 2.8 m3 per MX 1230 module |
| Detection | Aspirating module with two smoke sensors (pre-alarm and main alarm); piping over up to five racks for DD and active units |
| Emergency power | Rechargeable batteries, at least four hours of operation |
| Interfaces | Monitored alarm device connections, floating contacts for power shutdown and alarm forwarding, Ethernet (SMS, e-mail, IP devices) |
| Display | Two-line LC display and six LEDs |
| Versions | OneU active extinguishing system; OneU DD aspirating smoke detector system; OneU ED extinguishing system |
| Combination | Up to five OneU systems can be linked; one active or DD unit controls up to four ED units |
| Approval stated | VdS approval S614001; tested and certified by VdS and other international bodies |
How OneU detects, releases and combines
Air is drawn from the rack by a suction fan past two smoke sensors with adjustable sensitivity. The first sensor triggers a pre-alarm, at which stage electrical circuits can be disconnected to hinder a growing fire. If the fire develops, the second sensor triggers the main alarm and the electronics activate the MX 1230 module. The agent leaves through a special nozzle geometry and spreads through the rack and cable spaces without residue. An optional external manual release is available.
OneU DD provides the same functions without the extinguishing module and can monitor and control up to four OneU ED extinguishing systems or trigger an external extinguishing system. OneU ED consists of the MX 1230 module and control electronics and protects one closed rack of up to 2.8 m3. Power for ED units comes from the active or DD unit.
What to confirm before ordering
Please state the number of racks, the rack volume and depth, whether the racks are closed or ventilated, and which units (active, DD, ED) you want. A rack deeper or shallower than 852 mm should be checked first. Related Minimax detection is the HELIOS AMX5000 aspirating detector.
Documents and quotation
The Minimax brochure PB06Ce (print run 06.24) is attached with the product family table. Seven Star LLC is an independent supplier in Muscat and quotes the exact OneU combination for your racks. See Fire Fighting for related items.
Datasheets & Documents
- Brochure Minimax OneU Fire Protection Systems Brochure (PB06Ce) Download
Reviews (0)
About brand
Fire detection and extinguishing systems for industrial plants, data centers and logistics buildings are the business of Minimax, based in Bad Oldesloe, Germany. Seven Star LLC is an independent supplier in Oman and lists Minimax fire control panels, detectors, a deluge valve set and the MxSysCon fire control configuration software, supplied with its licence dongle. We also take inquiries for Minimax fire protection components and spare parts identified by part number.
Minimax systems the software and parts belong to
The manufacturer's program covers fire detection and extinguishing control panels of the FMZ family and HELIOS aspirating smoke detectors. On the extinguishing side it builds deluge and other water-based systems, Minifog water mist, Oxeo inert gas and carbon dioxide systems, and spark extinguishing. Panel configuration software is tied to a specific panel generation. We did not find the name MxSysCon in the manufacturer's public documents, so the software version has to be checked against your panel type.
Ordering Minimax items: what we need
Send the Minimax part number, the type and firmware version of the control panel, and a photo of the panel label. For detectors, nozzles or valves, add the nameplate data and the approval the project specifies. Minimax systems are engineered per site, so a component is only correct when it matches the original system documents. We check that match for buyers across the GCC before the order is placed.
Browse Minimax products by category: Automation Software.
Related products
Frequently Asked Questions
How much rack space does OneU need?
One rack unit, which is 44 mm of height, in a 19 inch rack.
What volume can one unit protect?
One MX 1230 extinguishing module protects a closed 19 inch rack of up to 2.8 m3.
What is the difference between OneU active, DD and ED?
Active detects and extinguishes, DD only detects and can control ED units, and ED only extinguishes under control of an active or DD unit.
Does it keep running during a power failure?
Yes, the power supply module with rechargeable batteries gives at least four hours of operation.
Which extinguishing agent is used?
The MX 1230 module uses FK 5-1-12 extinguishing agent released by a propellant gas cartridge.
