Brand: Ansul
Ansul A-101 Dry Chemical Vehicle Fire Suppression System
Description
Dry chemical fire protection for mobile equipment
The Ansul A-101 fire suppression system is a fixed-nozzle dry chemical system for high-value mobile equipment and vehicles. It discharges ANSUL FORAY multipurpose dry chemical agent, which Ansul says knocks down and suppresses Class A, B and C fires. Tank capacities run from 10 lb to 250 lb (4.5 kg to 113.4 kg), and the system can be designed to flood a volume with agent or to aim at specific high-hazard areas.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / brand | Ansul, a Johnson Controls brand |
| System type | Dry chemical, fixed nozzle, total flooding or local application |
| Agent | ANSUL FORAY multipurpose dry chemical |
| Fire classes | A, B and C |
| Tank capacity | 10 lb to 250 lb (4.5 kg to 113.4 kg) |
| Operation | Automatic or manual, 24/7 detection |
| Detection and actuation | CHECKFIRE system: supervised circuitry, adjustable shutdown, discharge time delays, auxiliary shutdown relay |
| Options | Extreme temperature option; variety of agent tank options; low-profile tank for underground mining |
| Approvals as printed | FM Approved and CE Marked |
| Document | Product overview, form F-2013155-03_A4 (copyright 2019) |
Detection and use
The CHECKFIRE system provides the around-the-clock automatic detection and actuation. Its control module is designed to withstand shock, vibration and extreme environmental conditions. The A-101 is described as ideal for mobile equipment used in surface and underground mining, forestry, waste management and construction, and the application list also includes agribusiness, aviation, metal processing, power generation and utilities, transportation and waste processing.
Protecting machines this way is meant to avoid repair and replacement cost, reduce downtime and prevent injuries. Dry chemical agent leaves a residue to clean up after discharge, so the choice against a clean agent depends on the vehicle and its electronics.
What to confirm before ordering

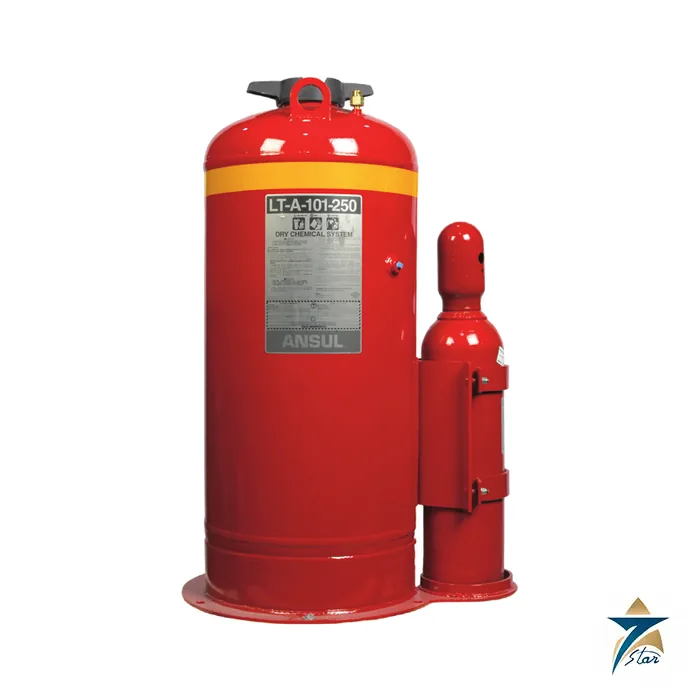

Confirm the machine type, the engine and hydraulic compartment layout, the tank size and mounting space, the operating temperature range and whether manual or automatic actuation is required. The overview lists no part numbers; the label on the pictured tank reads LT-A-101-250.
Documents and quotation
Attached: the Ansul A-101 Fire Suppression System product overview (form F-2013155-03_A4, 2 pages). Treat it as a product summary; detailed ordering data sits in the manufacturer design and installation documents. A quotation request is easiest to answer with the hazard description, quantities and the standard the project follows. See Fire Fighting for related fire protection equipment.
Datasheets & Documents
- Brochure Ansul A-101 Fire Suppression System product overview F-2013155-03 (EN) Download
Reviews (0)
About brand
Ansul is a fire suppression brand of Johnson Controls with its origins in Marinette, Wisconsin, USA. It covers clean agent, inert gas, carbon dioxide, dry chemical and wet chemical systems.
Seven Star LLC is an independent supplier in Muscat. We list Ansul systems for fire protection contractors and facilities in Oman and the GCC.
Ansul product series
Gaseous systems include the INERGEN clean agent system and the INERGEN iFLOW regulated flow inert gas system, the HYGOOD Inert Gas System 300 (IGS-300), the SAPPHIRE system using FK-5-1-12, the FM-200 clean agent system and the high pressure carbon dioxide system.
Special hazard systems include the R-102 restaurant kitchen system, the A-101 dry chemical vehicle system and a lithium-ion risk prevention system for off-gas detection in battery rooms.
Inert gas systems such as INERGEN and IGS-300 use a blend of naturally occurring gases and leave no residue, while chemical clean agents such as FK-5-1-12 and HFC-227ea need less storage space. Carbon dioxide is used in unoccupied areas, and wet chemical systems such as R-102 protect kitchen cooking appliances, hoods and ducts.
Where Ansul systems are used
Server rooms, control rooms, switchgear rooms and archives, turbine and engine enclosures, commercial kitchens, mining and heavy vehicles, and battery energy storage.
Ordering Ansul systems: what we need
Send the hazard and room volume, the agent preferred, the design standard (NFPA, ISO or local code) and the drawings. Systems must be designed, installed and serviced by qualified fire protection contractors.
Browse Ansul products by category: Fire Fighting.
Related products
Frequently Asked Questions
Which agent does the A-101 use?
ANSUL FORAY multipurpose dry chemical agent for Class A, B and C fires.
What tank sizes are listed?
10 lb to 250 lb (4.5 kg to 113.4 kg).
How is detection provided?
The CHECKFIRE system gives automatic 24/7 detection and actuation with supervised circuitry.
Is a low-profile tank available?
Yes. A low-profile tank option is listed for underground mining and tight spaces.
Which approvals are printed?
FM Approved and CE Marked.
