LAMTEC F300K Compact Flame Scanner UV and IR
Description
A microprocessor flame scanner with integrated amplifier and flame relay

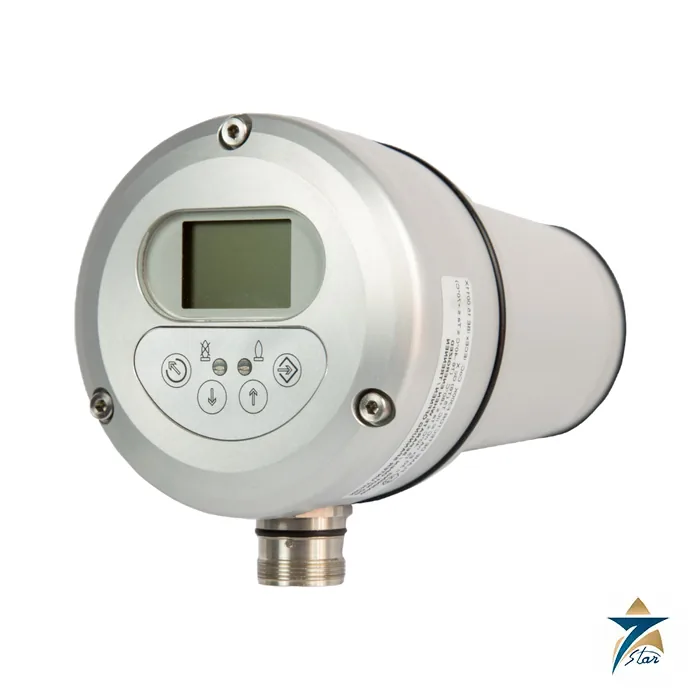

The LAMTEC F300K is a compact flame scanner that combines the flame sensor, amplifier and flame relay in one cylindrical housing. LAMTEC positions it as the next generation of flame monitoring for industrial furnaces and power stations, with digital flame frequency evaluation in 14 selectable ranges from 5 to 210 Hz, three selectable operating modes, a flame self-learning function and remote software with diagnostics. The standard version is certified for Ex Zone 2 and SIL 3, and it is rated for -40 to +85 degC with the housing in IP67.
The device can be operated through four buttons without opening the housing, so IP67 is retained during commissioning. A version with integrated user interface adds a graphic display, a simulation of the switching behaviour for setting the flame on/off parameters, and parameter back-up and upload.
Technical specifications
| Parameter | Specification |
|---|---|
| Function | Compact flame scanner with integrated sensor, amplifier and flame relay |
| Frequency evaluation | Digital, 14 selectable ranges, 5 to 210 Hz |
| Operating modes | 3, externally preselectable and switchable during operation |
| Amplification / threshold | 13 pre-selectable amplification levels; switching threshold adjustable over the whole signal range |
| Analogue output | 0/4 to 20 mA, configurable for flame intensity or RMS value of the sensor signal |
| Field bus interfaces (via FSB gateway) | PROFIBUS (slave), MODBUS TCP (client/server), MODBUS RTU (master/slave), Ethernet (frame), CANopen |
| Ambient temperature | -40 to +85 degC; higher temperatures possible with the cooling air housing; F300K-FO fibre optic version up to 350 degC at the sensing end |
| Protection | IP67 |
| Hazardous location approvals listed | Ex Device Group II Category 3, IBExU12ATEX Ex nA nC ic IIC T5 (T6) Gc X (Zone 2); Class I, Division 2, Groups A, B, C, D |
| Other approvals listed | SIL 3 (DIN EN 61508 Parts 1-7); Gas Appliances Directive 2009/142/EC; Pressure Equipment Directive 2014/68/EU |
| Fuels | Gas, oil, coal, biomass, process waste gases, dust, special fuels, chemical residues |
| Available versions | LED display or integrated user interface; single or double sensor (IR/UV); optional extended flame rating (5 flame intensities, 3 RMS values) |
Sensor types for the fuel
| Type | Spectrum | Approx. view angle | Preferred applications (LAMTEC selection table) |
|---|---|---|---|
| F300K UV-4 | 215-360 nm | 8 degrees | Oil, gas, dust, refinery, blast furnace gases and hydrogen; fibre optic use |
| F300K UV-4.6 | 215-360 nm | 8 degrees | Special applications with fibre optics |
| F300K IR-2 | 850-1200 nm | 20 degrees | Combustion space monitoring |
| F300K IR-3 | 1000-1700 nm | 60 degrees | Oil, gas, wood, coal and dust furnaces with high flue gas recirculation |
| F300K IR-4 | 1000-2200 nm | 60 degrees | As IR-3 per the selection table |
| F300K UVIR-1 | UV 215-360 nm and IR 850-1700 nm | 8 degrees | Oil, gas, refinery and furnace gases; coal and dust with strong recirculation |
Accessories and what to confirm before ordering
Listed accessories include FN30 power supplies, silicone or LiYcY connecting cables in 3, 5 and 10 m, FG30-00 and FG30-20 Ex II connection housings, the FB30 external user interface, the FFP30 flame scanner test device, the FK41 cooling air housing and adjustment bracket, fibre optic systems, the FSB gateway and repeater, and F300K remote software. Confirm the sensor type for the fuel, display version, supply, field bus needs and whether Zone 2 or a cooling housing is required. Older LAMTEC scanners on this site include the F200K Ex; see also flame detection and sensors.
Documents and quotation
The attached LAMTEC brochure (DLT7651-20, copyright 2020) covers features, selection criteria and accessories. Send the exact sensor type, display version and quantity with your enquiry.
