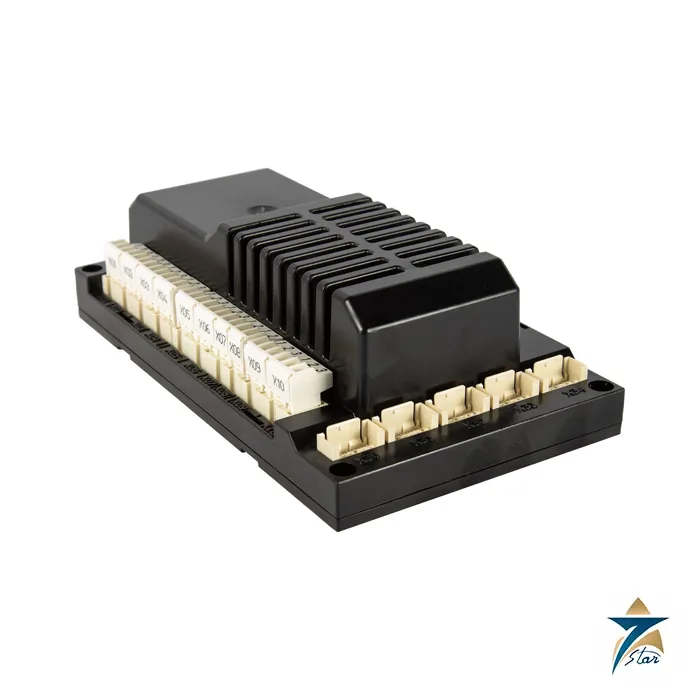

LAMTEC BurnerTronic BT300 Burner Control System
Description
A modular burner control and fuel/air ratio system that mounts on the burner
The LAMTEC BurnerTronic BT300 combines an electronic fuel/air ratio controller with an electronic burner control unit. Up to three motorised actuators modulate the air and fuel drives, and optional modules add variable speed control of the combustion air fan, fieldbus interfaces, load control and dual-fuel operation, all communicating on the LAMTEC SYSTEM BUS (LSB). LAMTEC describes it as particularly suited to monobloc burners and designed to be mounted directly on the burner, where short wiring routes and plug-and-socket motors cut installation time.
Standard functions include integrated valve proving, flame monitoring, exhaust gas recirculation and operating hour and start counters. Oxygen trim, CO control, load control and dual-fuel functions are options. Curves and parameters are set on the UI300 user interface or with LAMTEC LSB Remote Software, and faults appear as concise messages on the UI300.
Technical specifications and versions
| Version | Function | Order number |
|---|---|---|
| BT320 | 2 motorised outputs; intermittent operation only | 667R1320-1 (230 V ac) / 667R1321-1 (115 V ac) |
| BT330 | 3 motorised outputs; continuous operation | 667R1330-1 / 667R1331-1 |
| BT331 | As BT330, with SIL 3 (DIN EN 61508) and PL e (DIN EN ISO 13849-1) approval | 667R1330-2 / 667R1331-2 |
| BT335 | 3 motorised outputs; simple dual-fuel oil/gas without DFM300; continuous operation | 667R1335-1 / 667R1335-2 |
| BT340 | 3 motorised outputs; oil/gas or gas/gas dual fuel with DFM300; continuous operation | 667R1340-1 (230 V ac) / 667R1341-1 (115 V ac) |
| BT341 | As BT340, with SIL 3 and PL e approval | 667R1340-2 / 667R1341-2 |
| Parameter | Specification |
|---|---|
| Analogue output | 1 x 0-10 V or 0/4-20 mA for fan speed control via the optional VSM100 (listed for BT320 and BT330 to BT341) |
| Continuous operation | With an approved flame sensor (BT330 and above) |
| Approvals listed | EU type examination under 2014/68/EU and (EU) 2016/426; DIN EN 298, DIN EN 13611, DIN EN 1643, DIN EN 12067-2, ISO 23552-1, DIN EN 50156-1 (no. 10.5); SIL 3 to DIN EN 61508 (BT331, BT341); ANSI/UL 1998, UL 372, UL 353, CAN/CSA C22.2 No. 199, AS 4625 |
| User interface | UI300-V2 667R0100-1 (IP41 UL version 667R0100-2); UI300-LSB 667R0120-1; IP65 cover 668R0320 |
| Plug set | 667R0900-2, screw connection, up to 2.5 mm2 |
Optional modules and flame sensors
Order information in the LAMTEC overview lists the LCM100 load control module (667R0500-1) with integrated 24 V dc supply, LSB gateway, 4-20 mA retransmission, pulse counter inputs and three PT100/PT1000 inputs; the LEM100 LSB expansion module (667R0400-1); the VSM100 variable speed module (667R0200-1, requires LCM100); the DFM300 dual-fuel module (667R0600-1 for 230 V, 667R0600-2 for 115 V); and fieldbus modules PBM100 PROFIBUS DP (667R0700-1), EBM102 MODBUS TCP (667R0725-1) and EBM112 PROFINET 2-port (667R0740-1). Listed UV flame monitors are the KLC1000 (667R0800-1, radial view) and KLC2002 (667R0810-1, axial view, oil flames in intermittent operation).
What to confirm before ordering
Confirm the fuel (gas, oil or dual fuel), the number of actuators, 230 or 115 V ac supply, whether a SIL 3 version is required, the flame sensor type, and any fan speed, load control or fieldbus modules. Related LAMTEC flame monitoring on this site includes the LAMTEC F200K Ex flame scanner, and burner equipment is listed under burners and gas trains.
Documents and quotation
The attached LAMTEC system overview (publication DLT1202-25) covers the BT320 to BT341 range, the optional modules and the order numbers. Send the full order number, burner type and fuel with your enquiry.
