KOBOLD NRE 80 GHz Non-Contact Radar Level Transmitter
Description
80 GHz radar for tanks, sumps and wells with a small antenna

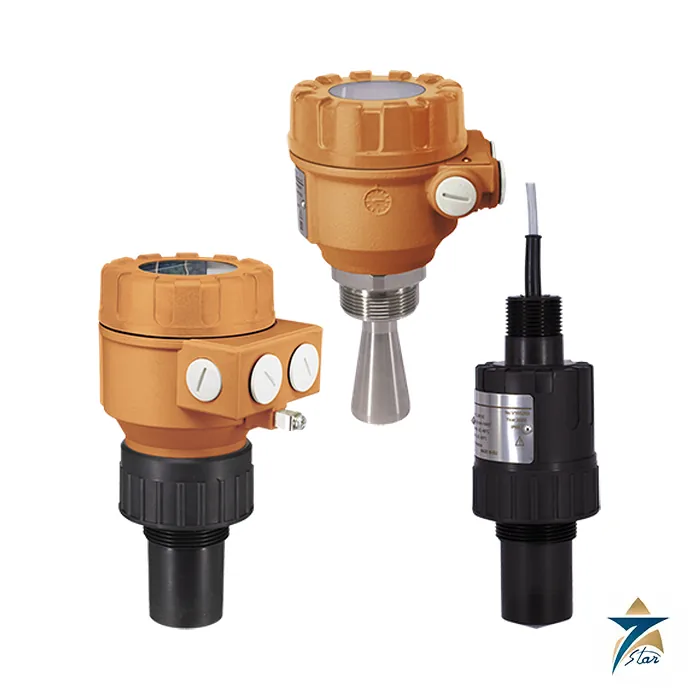

The KOBOLD NRE family are two-wire 80 GHz (W-band) FMCW radar transmitters for non-contact level measurement of liquids, emulsions and large-particle bulk solids. The 80 GHz signal allows a small antenna and a narrow beam angle, which helps in narrow nozzles and tanks with internals, and millimetre waves can be used through a plastic tank roof and in a vacuum. The NRE-4 is the compact line with a PBT, aluminium or stainless steel housing and a plug-in graphic display; the NRE-7 is the integrated all-plastic design with an IP68 fixed cable.
Both lines measure distance and calculate level, volume, mass and open-channel flow, and the threshold management feature suppresses false and interfering echoes. The medium must have a dielectric constant above 1.9; the datasheet lists crude oil at 2.1, gasoline at 2.3 and water at 80.
Technical specifications
| Parameter | Specification |
|---|---|
| Signal frequency | 77 to 81 GHz (W-band), FMCW |
| Measuring range | 0 to 30 m (range 10 m, 20 m or 30 m by order code); dead zone 0 m from antenna tip |
| Accuracy / resolution | ±5 mm (10 m range, 12° beam) or ±2 mm (20 m range, 7° beam) / 0.1 mm |
| Lowest dielectric constant | 1.9 |
| Supply voltage / output | 12.5 to 36 VDC, 2-wire; 4 to 20 mA (3.9 to 20.5 mA) HART, optional SPDT relay 30 V/1 A DC |
| NRE-4 process data | Process temperature -40 to +80 °C (high-temperature version up to +180 °C); pressure -1 to 3 bar (PP, PVDF, PTFE antennas) or -1 to 40 bar (stainless steel antenna); IP67 |
| NRE-7 process data | -40 to +80 °C, -1 to 3 bar, IP68, encapsulated horn antenna PP, PVDF or PTFE, cable 5 m up to 30 m |
| Process connection | 1″ or 1½” BSP / NPT; NRE-4 also D75 or prepared for flange (3″ to 12″ DIN, ANSI, JIS) |
| Antenna insertion length | NRE-4: 80 mm (1″) or 92 mm (1½”); NRE-7: 56 mm or 70 mm |
| ATEX / IECEx marking | NRE-4: II 1G Ex ia IIC T6 Ga and II 1D Ex ia IIIC T85 °C Da (high-temperature design T6 to T3, T85 °C to T180 °C); NRE-7: II 1G Ex ia IIC T5 Ga and II 1D Ex ia IIIC T95 °C Da |
| Display / service | NRM-300P graphic display; HART, HARTCOM-0 modem, KOBOLD NUS-NTB-NRM-SW software |
NRE-4 and NRE-7 compared
| Item | NRE-4 compact | NRE-7 integrated |
|---|---|---|
| Housing | PBT, painted aluminium or stainless steel | Plastic (PP / PVDF) |
| Antenna | 1.4571 stainless steel, or PP, PVDF, PTFE enclosed | Encapsulated horn, PP, PVDF or PTFE |
| Maximum pressure | 40 bar (steel antenna) | 3 bar |
| Maximum temperature | +80 °C, or +180 °C high-temperature | +80 °C |
| Protection | IP67, M20 x 1.5 gland | IP68, fixed cable |
| Weight | 1 to 3.9 kg by housing | about 600 g |
Choose the NRE-4 where a metal antenna, higher pressure or high temperature is needed, such as hot hydrocarbon tanks. The NRE-7 suits sumps, wells, chemical tanks and water applications where an all-plastic, fully sealed unit is wanted.
Ordering the NRE
The NRE-4 example in the datasheet is NRE-4 1 S P R25 A0K 0. The range code is 1 (10 m), 2 (20 m) or 3 (30 m); the version is S (standard) or H (high temperature); the antenna and housing letter combines the antenna material with a PBT, aluminium or stainless housing; then the connection, the output code (A for 4 to 20 mA HART, R with relay; 0 or 1 for without or with display; K, I or J for no approval, ATEX Ex ia or IECEx Ex ia) and an option. The NRE-7 code adds the cable length in 1 m steps up to 30 m. Some Ex ta D codes and the 30 m range are marked in preparation, so confirm availability before ordering.
Confirm before ordering: the dielectric constant of the product, the minimum measuring distance for the antenna length, the ambient and process temperature against the Ex temperature class, and whether foam, condensate or agitators could disturb the beam.
Documents and quotation
The KOBOLD NRE-4 datasheet (edition 1/07-2025) is attached to this page. Browse our Level Instrumentation category for related instruments, or compare with the VEGAFLEX 81 guided wave radar.
For a quotation, send the range, housing and antenna material, connection, output and approval code, medium and its dielectric constant, and temperature and pressure.
