Thermal mass flow metering for compressed air and process gases

The KOBOLD KEC series are thermal mass flow meters for gases that work on the calorimetric principle: a heated PT45 sensor is cooled by the passing gas, and a PT100 measures the gas temperature. Because the measuring effect is mass-based, no extra pressure or temperature compensation is needed. The sensor has no moving parts, a stainless steel 1.4571 probe tip that is easy to clean, and a measuring span of 1:1000 from 0.1 to 224 m/s.

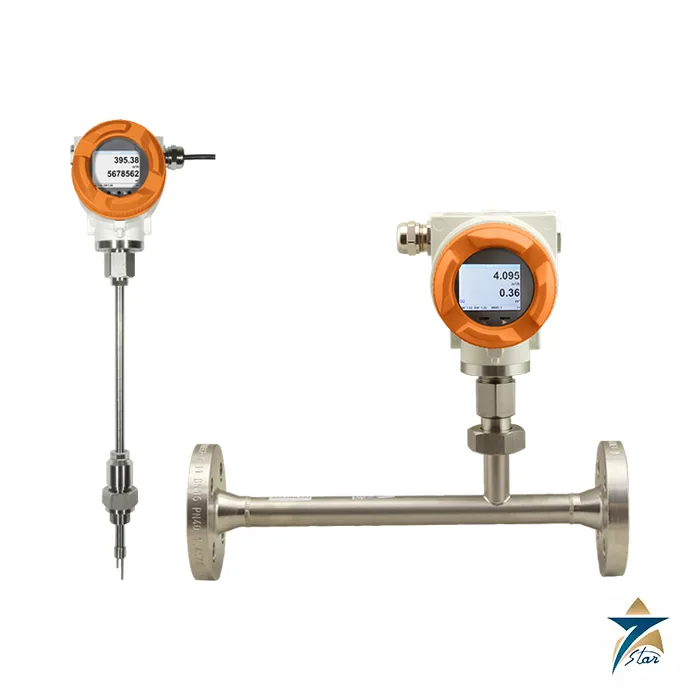

KEC-1 is the immersion version with a ½” connection for existing lines from ¾” to DN 1000; KEC-2 is the in-line version with an integrated measuring section for DN 15 to DN 80. KEC-3 and KEC-4 are the matching ATEX versions. KOBOLD lists compressed air distribution and leak measurement, nitrogen, argon, carbon dioxide and oxygen, vacuum systems, biogas, natural gas at burners and gas mixtures as applications.

Technical specifications

Parameter	Specification
Measuring principle	Thermal mass flow (calorimetric), no additional pressure or temperature compensation
Measuring range	0.1 to 50 m/s (low speed), 92.7 m/s (standard), 185 m/s (max.) or 224 m/s (high speed), referred to DIN 1343 (0 °C, 1013 mbar)
Accuracy / repeatability	±1.5 % of reading ±0.3 % of full scale; on request ±1.0 % of reading ±0.3 % of full scale / 0.25 % of reading with correct mounting
Response time	t90 below 3 s
Operating pressure	KEC-1: 50 bar (100 bar special version); KEC-2: 16 bar (40 bar special version)
Temperature	Probe -40 to +180 °C (standard); -20 to +120 °C for O2, natural gas, propane, methane, biogas, silicone-free option or ATEX; display -40 to +70 °C
Outputs	Modbus RTU; 2 x 4 to 20 mA galvanically isolated (flow and °C), load 500 Ω; pulse; alarm up to 48 VDC, 0.5 A
Display	2″ TFT colour display, rotatable by 180°; flow, total, velocity and temperature
Counters	Total counter plus freely adjustable counter from 1 minute to 1 day
Supply / protection	18 to 36 VDC, 5 W / IP67
Materials	Aluminium die-cast housing; probe tube stainless steel 1.4571
Connection	KEC-1: G ½ ISO 228 or ½” NPT, probe lengths 160 to 600 mm; KEC-2: DN 15 to DN 80 flanged or R / NPT measuring section
ATEX (KEC-3, KEC-4)	II 2G Ex db IIC T4 Gb; II 2D Ex tb IIIC T90 °C Db

KEC-2 in-line ranges

The in-line section has a removable measuring head, so the unit can be taken out for calibration or cleaning without removing the pipe section. The datasheet gives full-scale values in Nm³/h by pipe size and gas; some examples for air (DIN 1945 / ISO 1217: 20 °C, 1000 mbar) are below.

Pipe	Low speed 50 m/s	Standard 92.7 m/s	Max. 185 m/s	High speed 224 m/s
DN 15	20	45	90	110
DN 25	75	145	290	355
DN 50	320	600	1195	1450
DN 80	765	1420	2840	3440

The datasheet also lists argon, carbon dioxide, nitrogen, oxygen, nitrous oxide and natural gas ranges for DN 15 to DN 80 and a longer gas list on later pages.

Installation and ordering

KEC-1 can be mounted and removed under pressure through a ½” ball valve with a safety ring, and the depth scale helps set the probe to the correct insertion depth. Both versions need a straight inlet section for the stated repeatability. Gas type, inner pipe diameter, reference conditions, zero point and leak flow suppression are set via the display or the PC service software; gas type selection and standard temperature and pressure are changed only with the software.

The order example is KEC-1 S 016 1 L S 0 0: model, display, connection and probe length, speed version, gas type, maximum pressure, calibration and options. A three-point calibration certificate is included; real gas calibration is available for other gases. Confirm before ordering: the gas and its composition, pipe inner diameter, operating pressure and temperature, and whether oxygen service needs the cleaned, oil- and grease-free version.

How the KOBOLD KEC works

A heated sensor sits in the gas stream. Moving gas cools the sensor, and a second sensor measures the gas temperature. The power needed to keep the temperature difference constant depends on the mass of gas passing the probe. The electronics turn this into flow, total and velocity values.
