KOBOLD BGN All-Metal Variable Area Flow Meter, up to 350 °C
Description
All-metal rotameter for hot, aggressive and high-pressure lines

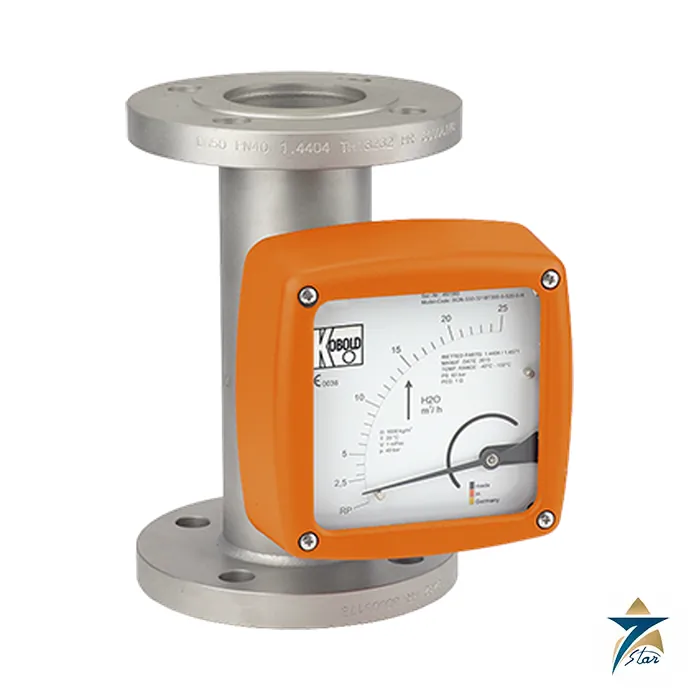

The KOBOLD BGN is an all-metal variable area flow meter for liquids and gases in pipes. The fluid flows upward through the meter tube and lifts a conical float until the annular gap between the float and the meter ring balances the forces on the float. A magnet transfers the float position to a follow magnet and pointer, so the flow is read on a scale in volume or mass per unit time, and the display works without auxiliary power.
The BGN is designed for rough conditions: wetted materials include stainless steel 1.4404/316L and 1.4571/316Ti, Hastelloy C-22 and a PTFE-lined version, the standard pressure rating is PN 40 and the process temperature reaches +350 °C. Options add inductive or micro switches, a 4 to 20 mA transmitter with HART or FOUNDATION Fieldbus, a counter module, heating or cooling, damping, a self-draining body and a flow controller.
Technical specifications
| Parameter | Specification |
|---|---|
| Measuring range, water | 0.5 to 5 l/h up to 13 000 to 130 000 l/h (1000 kg/m³, 1 mPa·s) |
| Measuring range, air | 0.015 to 0.15 Nm³/h up to 240 to 2400 m³/h (20 °C, 1.013 bar) |
| Versions | BGN-S stainless steel tube (up to 350 °C); BGN-P stainless steel with PTFE lining (up to 125 °C); BGN-H Hastelloy C-22 tube (up to 350 °C) |
| Accuracy | Liquid ±1.6 % full scale (BGN-S/H), ±2.0 % (BGN-P); gas ±1.8 % (BGN-S/H), ±2.2 % (BGN-P); transmitter adds ±0.2 %; repeatability ±0.5 % |
| Nominal pressure | PN 40 and ASME CL150 / CL300 (BGN-S/H); PN 16 and CL150 (BGN-P); optional up to 600 bar |
| Process temperature | -40 to +200 °C; -40 to +150 °C with electrical output; -40 to +350 °C with option V, H or W; -40 to +125 °C (BGN-P) |
| Ambient temperature | -40 to +80 °C; -40 to +65 °C with limit switch |
| Connections | Flanges EN 1092-1, ASME B16.5, DIN 2512, JIS; NPT; screw pipe connection; DN 15 to DN 150 |
| Display | Aluminium (stove-enamelled) or stainless steel; IP65, IP66 or IP67 (stainless housing) |
| Electrical outputs | NAMUR inductive switches SJ 3,5-N or SJ 3,5-SN, up to two micro changeover switches, transmitter ES 4 to 20 mA (14 to 30 VDC) with HART or FOUNDATION Fieldbus |
| ATEX | Mechanical device II 2G Ex h IIC T1…T6 Gb, II 2D Ex h IIIC T85 °C/T350 °C Db; transmitter ES II 2G Ex ia IIC T6 Gb; switches II 2G Ex ia IIC T6…T1 Gb |
| Other approvals | IECEx, KCS, NEPSI and PESO certificates listed for the transmitter |
Selecting the range and size
The order tables list the measuring range, size and pressure loss together. A few examples for water: 25 to 250 l/h in DN 15 with 60 mbar maximum pressure loss, 100 to 1000 l/h in DN 25 with 60 mbar, 1000 to 10 000 l/h in DN 50 with 110 mbar, and 8000 to 80 000 l/h in DN 100 (PN 16) with 600 mbar. Gas measurement is not available for the largest ranges of 10 000 l/h and above in DN 125 and DN 150.
Choose the range so that the normal flow sits in the upper part of the scale; the accuracy is given as a percentage of full scale, so low readings carry a larger relative error. The datasheet asks for the medium, density, viscosity, operating pressure and temperature to be specified in plain text with the order.
Special versions and ordering
The order example is BGN-S 10 305B A 0 0 0 0 S 1 0 0K: model, range, connection, pressure stage, heating or cooling, damping, drain, display, scale and electrical output. Special features include double eddy-current damping, a self-draining body, backflow stop, a special low-pressure-loss float, a flow controller, a display with pressure compensation against condensate build-up, and SIL conformity assessment by EXIDA.
Confirm before ordering: the gas or liquid data at operating conditions, the heat tracing need, the required wetted material (including NACE if relevant), the flange standard and the required certificate level, from 2.1 up to 3.1 and 3.2.
Where the KOBOLD BGN is used
- Hot liquid lines
- Hot gas lines
- High pressure lines
- Aggressive media
- Process plant skids
Selection checklist for the KOBOLD BGN
- Liquid or gas
- Flow range
- Process temperature
- Process pressure
- Wetted materials
- Connection type and size
- Switches or transmitter
- Heating or cooling jacket
Installation, commissioning and maintenance notes for the KOBOLD BGN
Mount the meter vertically with the flow going up and keep the pipe supported. Check the connections and set any switch points. Check the float, the pointer and the seals at regular intervals.
Requesting a quotation for the KOBOLD BGN
Please send the medium, the flow range, the pressure and the temperature. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
