Emerson 1410S Wireless Gateway with 781S Smart Antenna

Name: Emerson 1410S Wireless Gateway – Datasheet & Price Quote
Brand: Emerson

Description

Overview

The Emerson 1410S Wireless Gateway, used with the 781S Smart Antenna, connects self-organizing WirelessHART field networks to any host system. It manages the network automatically, configures and provisions devices through an integrated web interface, and passes measurement and diagnostic data to control systems, historians and asset management software over serial and Ethernet connections. Emerson states greater than 99 percent data reliability with industry-proven security, allowing sensor data from critical assets to remove blind spots and improve the productivity and safety of operations.

Seven Star LLC supplies the Emerson 1410S and its 781S antennas to oil and gas, utilities and process customers in Oman and across the GCC. Our engineering team in Muscat helps size network capacity, select housing, protocol and redundancy options from the official Emerson 1410S datasheet, and supplies the WirelessHART transmitters that join the network.

Operating Principle

WirelessHART, standardized as IEC 62591, uses IEEE 802.15.4 radios in the 2.4 GHz ISM band, divided into 15 channels with time-synchronized channel hopping and direct sequence spread spectrum. Every field device can route data for its neighbors, forming a self-organizing, self-healing mesh. If an obstruction blocks one path, data continues over paths the device has already established, and the network adds new paths as needed. No wireless expertise is required, because the network establishes the best communication routes automatically.

The Emerson 1410S acts as the network manager and security manager. It schedules communications, authenticates each device, encrypts all wireless data with 128-bit AES and collects the device updates at rates from 1 second to 60 minutes. The gateway then publishes the data to hosts through Modbus TCP/IP, Modbus RTU over RS-485, OPC DA and OPC UA, EtherNet/IP and HART-IP, with native integration into Ovation and DeltaV. Two smart antenna connections allow two WirelessHART networks, or one WirelessHART and one IEC 62734 network, to run on a single gateway.

Engineering Design of the Emerson 1410S

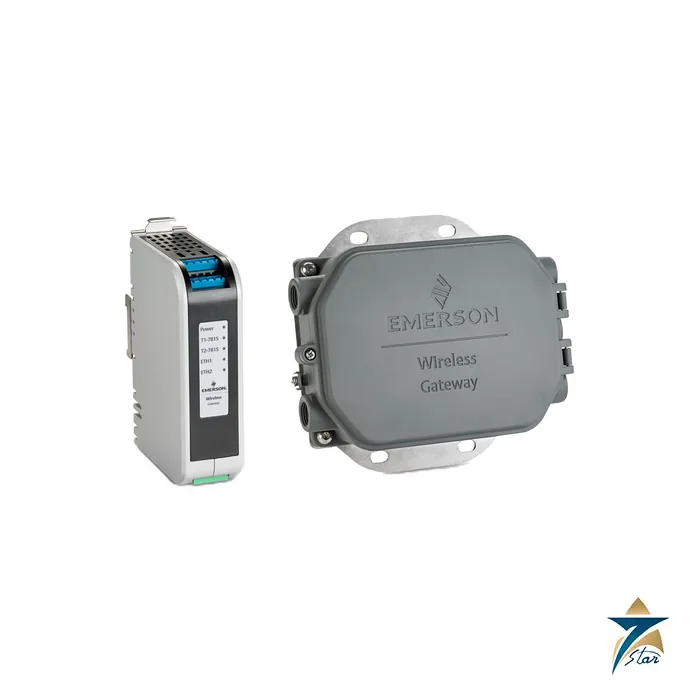

Two Emerson 1410S housings are available. The 1410S1 indoor version is a DIN-rail mounted engineered polymer unit weighing 0.59 kg and rated for –40 to 70 °C, while the 1410S2 outdoor version is a pole-mounted low-copper aluminum housing rated IP66, weighing 1.25 kg and rated for –40 to 65 °C. The gateway is powered from 10.5 to 30 Vdc or through IEEE 802.3af Power over Ethernet on either port, with steady-state consumption of 6.5 to 8 W depending on output option and antenna count. Single or dual Ethernet ports and an optional RS-485 serial port are available, and gateway redundancy can be ordered.

The 781S Smart Antenna is a separate engineered polymer unit, 9.4 cm in diameter and rated Type 4X and IP66/67, that connects to the gateway over up to 400 m of industrial shielded twisted pair. Intrinsically safe output options allow the antenna to be installed in Zone 0/1/2 and Class I Div 1/2 or in Zone 2 and Div 2 areas. Antenna choices include an internal antenna and 6 dB or 8 dB high-gain remote kits, and both the gateway and antenna were tested to IEC 60770-1 high vibration levels with no effect.

Key Features

The Emerson 1410S data sheet highlights the following capabilities.

Connects self-organizing WirelessHART networks with greater than 99 percent data reliability to any host system.
Supports up to two 781S smart antennas for dual WirelessHART or WirelessHART plus IEC 62734 operation.
Lets the Emerson 1410S scale to 25, 200 or 500 WirelessHART devices per network with the High Capacity option.
Integrates through Modbus TCP/IP, Modbus RTU, OPC DA, OPC UA, EtherNet/IP and HART-IP.
Provides an integrated web interface and drag-and-drop device provisioning without extra software.
Includes AMS Wireless Configurator software with device dashboards and diagnostic views.
Secures data with AES-128 encryption, TLS-enabled Ethernet, role-based access and a configurable port firewall.
Offers gateway redundancy, PoE power and indoor DIN-rail or outdoor IP66 aluminum housings.

Industrial Applications

The Emerson 1410S is the backbone of a WirelessHART installation. Typical Emerson 1410S projects include monitoring of remote wellheads and flowlines, tank farm temperature and level, pump and heat exchanger health, steam trap and pressure relief monitoring, safety shower alarms and valve position feedback, all without running new signal cable. Because the network self-organizes, operators can start with a few points and grow to hundreds as more applications are added. In Oman these benefits apply to dispersed oil and gas fields in the interior, brownfield refineries and petrochemical units in Sohar, power and desalination plants on the coast, and port and terminal facilities in Duqm and Salalah.

Seven Star LLC supports wireless projects across Oman and the GCC with network planning input, device selection and delivery. Common field devices on an Emerson 1410S network include the Rosemount 648 wireless temperature transmitter, while devices can be commissioned with the Emerson AMS Trex device communicator and data can be brought into the Emerson DeltaV PK controller environment.

Switch and on-off signals can be added through the Rosemount 702 wireless discrete transmitter.

Technical Specifications

Key Emerson 1410S and 781S values from data sheet 00813-0600-4410 are listed below.

Parameter	Specification
Model	Emerson Wireless 1410S Gateway with 781S Smart Antenna
Wireless protocols	IEC 62591 WirelessHART; IEC 62734 with 781SC antenna; 2.4 to 2.5 GHz DSSS
Network size	Up to 200 devices per network, up to 500 with High Capacity option; up to 99 on IEC 62734
Device update rates	1, 2, 4, 8, 16, 32 s or 1 to 60 min
Host protocols	Modbus TCP/IP, Modbus RTU (RS-485), OPC DA/UA, EtherNet/IP, HART-IP
Power (Emerson 1410S)	10.5 to 30 Vdc, or PoE IEEE 802.3af (44 to 57 Vdc)
Power consumption	6.5 to 8 W steady state, depending on options
1410S1 indoor housing	Engineered polymer, DIN-rail, 0.59 kg, –40 to 70 °C
1410S2 outdoor housing	Low-copper aluminum, IP66, pole mount, 1.25 kg, –40 to 65 °C
781S antenna	Engineered polymer, Type 4X and IP66/67, 1.1 kg, –40 to 70 °C
Antenna to gateway distance	Up to 400 m using shielded twisted pair
Antenna RF output	Internal 40 mW EIRP; 6 dB kit 58 mW; 8 dB kit 98 mW
Security	AES-128 wireless encryption, TLS Ethernet, role-based access, port firewall
Humidity / altitude	0 to 99% RH non-condensing; up to 5,000 m

How to Order

For a formal RFQ on the Emerson 1410S, send Seven Star LLC the housing type, number of smart antennas and protocols, network capacity, Ethernet and serial host protocols, redundancy requirement, hazardous area classification for the antenna and the antenna option. Our instrumentation division will confirm the model codes against the Emerson 1410S datasheet, check current availability and lead time, provide the data sheet for download and give engineering support from Muscat for WirelessHART networks across Oman and the GCC.

Datasheets & Documents

Datasheet Emerson Wireless 1410S Gateway with 781S Smart Antenna Product Data Sheet 00813-0600-4410, Rev AK, August 2026 Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Flow computers and remote controllers lead the Emerson listing here: the ROC800 series and the FloBoss 107 used for gas and liquid measurement at wellheads, metering skids and pipeline stations. Emerson, founded in 1890 and headquartered in St. Louis, USA, also stands behind Micro Motion Coriolis meters, Fisher FIELDVUE valve controllers and the DeltaV control system. Seven Star LLC, an independent supplier, sources these Emerson products and their spare parts for users in Oman and the GCC.

Emerson product families on this page

The measurement and control group includes the ROC809 and the expandable ROC827 Remote Operations Controllers, the ROC800L for liquid measurement and the FloBoss 107 Flow Manager. Flow metering is represented by Micro Motion ELITE CMF Coriolis sensors and the 5700 transmitter. For valves there is the DVC6200 digital valve controller, plus solenoid valves and a safety relief valve. DeltaV hardware includes the PK Controller and DeltaV SIS components. Field tools are the AMS Trex Device Communicator and the earlier 475 Field Communicator, and wireless networks use the 1410S gateway with the 781S smart antenna. The cooling items are Copeland scroll and semi-hermetic compressors, which were sold for many years under the Emerson name.

Where Emerson equipment is used

ROC and FloBoss units calculate and log gas and liquid flow at production sites and custody transfer points. Micro Motion meters measure mass flow and density in loading, blending and fiscal metering. DVC6200 controllers position control valves and report valve diagnostics, and DeltaV runs process units in refineries, chemical plants and utilities. Copeland compressors serve air conditioning and refrigeration plants.

Ordering Emerson parts: what we need

Send the full model string and serial number from the nameplate. For ROC800 units list the I/O and communication modules fitted and the application, gas or liquid. For Coriolis meters give both the sensor and the transmitter model. For DeltaV parts quote the 12P or KJ part number, and for compressors the complete model number with voltage code.

Frequently Asked Questions

How many devices can the Emerson 1410S gateway handle?

Each WirelessHART network on a 781S smart antenna supports up to 200 devices, or up to 500 devices with the High Capacity option, and capacity can be ordered as 25, 200 or 500 devices. The supported load depends on update rates, for example 100 devices at 8 seconds or 500 devices at 60 seconds. When used with the DeltaV ready option, the data sheet notes a limit of 100 devices.

Which host protocols does the Emerson 1410S support?

The gateway connects to control systems and data applications over Ethernet using Modbus TCP/IP, OPC DA with OPC UA available, EtherNet/IP and HART-IP, and over serial using Modbus RTU on RS-485. Native integration with DeltaV and Ovation is also available, and two protocols can run simultaneously.

What is the 781S Smart Antenna?

The 781S is the radio for the gateway. It can be mounted up to 400 m from the gateway using shielded twisted pair, so the gateway can sit in a control room or panel while the antenna is placed for the best radio coverage. Versions are available for WirelessHART (IEC 62591) or ISA100 (IEC 62734), with internal or high-gain remote antennas, and the 781S is rated Type 4X and IP66/67.

How is the wireless network secured?

All wireless data is 128-bit AES encrypted and every device is authenticated before it joins. On the host side, Ethernet communication is TLS-enabled by default, role-based access control covers Administrator, Maintenance, Operator and Executive users, and an internal firewall lets each TCP port and protocol be enabled, disabled or renumbered.

Does Seven Star LLC supply the Emerson 1410S in Oman?

Yes. Seven Star LLC supplies Emerson 1410S gateways, 781S smart antennas and WirelessHART field devices to customers in Oman and the GCC. Share the housing, capacity, protocol, redundancy and hazardous area needs and our Muscat team will prepare a quotation with current availability and lead time.
