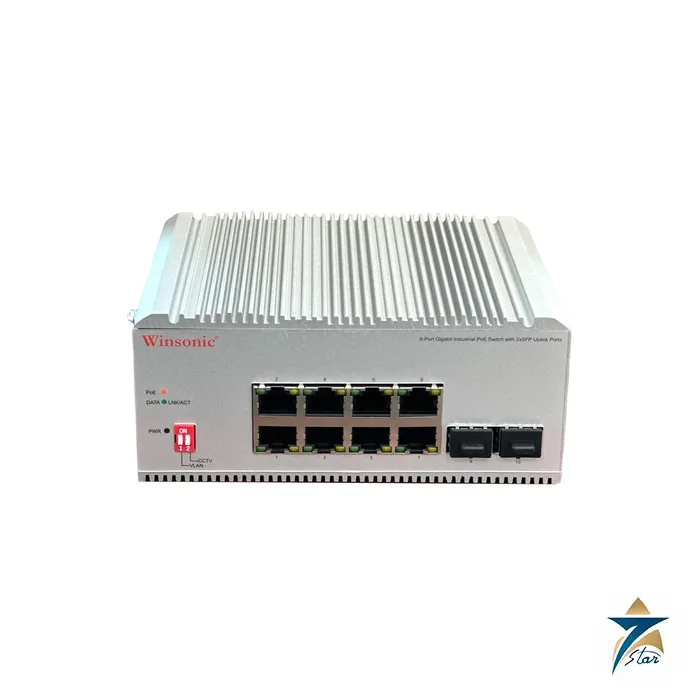

Winsonic NE11007-00842A 8-Port Unmanaged PoE Switch

Overview

The Winsonic NE11007-00842A is an 8-port Gigabit industrial unmanaged PoE++ switch designed for plug-and-play deployment in surveillance, access-control and sensor networks where a full Layer 3 management stack is unnecessary but industrial-grade reliability is not. With eight PoE-capable RJ45 ports, two 1000Mbps SFP slots for fiber uplinks, and a 185W total PoE budget, the NE11007-00842A gives integrators a zero-configuration switch that survives the vibration, dust and temperature extremes of real industrial installations rather than the desktop-grade switches sold for office LANs.

As the official authorized partner and exclusive regional representative for Winsonic, Seven Star LLC proudly supplies the NE11007-00842A to system integrators, security contractors and facility engineers across the Sultanate of Oman and the wider GCC. Every unit sourced through Seven Star LLC comes with access to regional technical support, giving project teams in Muscat, Sohar and Salalah a dependable local supply chain for their industrial networking bill of materials.

Operating Principle

Built on the RTL8370MBI switching chipset, the Winsonic NE11007-00842A performs automatic MAC address learning and store-and-forward packet switching across all ten ports with zero configuration required at commissioning. Automatic detection of powered devices (PDs) on each of the Winsonic NE11007-00842A’s ports of the eight PoE ports means cameras, wireless access points and other 802.3af/802.3at-compliant equipment are recognized and powered the moment they are connected, with the switch’s 185W total budget shared dynamically across active PoE loads so integrators do not need to pre-calculate per-port power draw during design.

Because the switch is fully unmanaged, there is no web interface, CLI or SNMP agent to configure, patch or secure, which in practice removes an entire class of network-management vulnerability from segments where a managed switch’s software stack would otherwise represent unnecessary attack surface. A built-in VLAN and CCTV-optimized forwarding mode allows the switch to prioritize video traffic patterns typical of surveillance deployments, while the two 1000Mbps SFP slots let the switch uplink to a fiber backbone over distances that copper cannot reliably span, all without a single configuration screen.

Engineering Design of the Winsonic NE11007-00842A

The Winsonic NE11007-00842A is housed in a full aluminum alloy fanless enclosure that doubles as a heatsink, eliminating fan failure as a maintenance item and allowing continuous operation across a -40°C to 75°C range. This rating covers everything from sealed outdoor camera-pole cabinets in the Gulf summer to unheated equipment rooms during the region’s cooler winter nights, without the switch needing climate-controlled housing to stay within its rated envelope.

On the Winsonic NE11007-00842A, dual DC power inputs provide power-supply redundancy, an important safeguard for PoE segments feeding access-control door strikes or security cameras where a single power-supply failure should never take an entire physical-security segment offline. The Winsonic NE11007-00842A includes DIN-rail and wall-mounting hardware as standard, and its surge protection is rated to ±6kV on contact discharge and ±8kV through air, guarding both the switch and the connected PoE devices from lightning-induced transients that are common during Gulf shamal weather events. At 145 x 109 x 62mm, the NE11007-00842A shares its physical footprint with the rest of the Winsonic industrial switch family, simplifying panel layout for integrators standardizing on the platform.

Key Features

The Winsonic NE11007-00842A pairs zero-configuration deployment with field-hardened construction. Key capabilities include:

• 8 x 10/100/1000Mbps RJ45 PoE ports delivering up to 30W per port under a 185W total power budget.
• 2 x 1000Mbps SFP fiber uplink slots for backbone connectivity beyond copper cable-length limits.
• Automatic detection of powered devices with dynamic PoE budget allocation across active ports.
• Built-in VLAN and CCTV-optimized forwarding mode for surveillance-heavy network segments.
• IEEE 802.3az Green Ethernet energy-saving standard for reduced 24/7 operating cost.
• Full aluminum alloy fanless enclosure rated for -40°C to 75°C continuous operation.
• Dual-input power redundancy and ±6kV/±8kV surge protection for lightning-prone sites.
• DIN-rail and wall-mount kit included, with zero configuration required at commissioning.

Industrial Applications

The Winsonic NE11007-00842A is widely deployed across IP camera networks protecting district cooling plants, RO desalination facilities, warehouse and logistics yards, and hospitality and hospital complexes throughout Oman and the GCC, where its plug-and-play PoE ports and CCTV-optimized forwarding make it the natural choice for extending a surveillance backbone without introducing a managed switch’s configuration and cybersecurity overhead. In commercial HVAC and building-automation segments, the switch is commonly used to power PoE-based sensor nodes, access-control readers and small wireless access points from a single Winsonic NE11007-00842A unit mounted directly inside a field panel.

As the officially authorized partner for Winsonic, Seven Star LLC distributes the NE11007-00842A to EPC contractors and security integrators supporting the Sohar and Salalah economic zones, where the switch’s wide temperature rating and surge-hardened design let it operate reliably inside outdoor enclosures without dedicated climate control. Across Oman and the GCC, facility operators looking for a dependable, zero-maintenance PoE switch to extend an existing managed backbone consistently choose the NE11007-00842A for its combination of PoE budget, fiber uplink capacity and industrial-grade construction at unmanaged-switch simplicity.

Technical Specifications

The table below summarizes the core specifications of the Winsonic NE11007-00842A industrial unmanaged PoE switch.

Request a Quote for Winsonic NE11007-00842A

Seven Star LLC supports formal RFQ submissions, confirms lead time at quotation, and provides the full Winsonic technical datasheet for the NE11007-00842A on request. As the authorized partner for Winsonic in Oman and the GCC, our instrumentation and industrial networking division is ready to help specify the right PoE budget and port configuration for your surveillance or automation project, with delivery available to sites across Muscat, Sohar, Salalah and the broader Gulf region.
