Brand: Fuji Electric

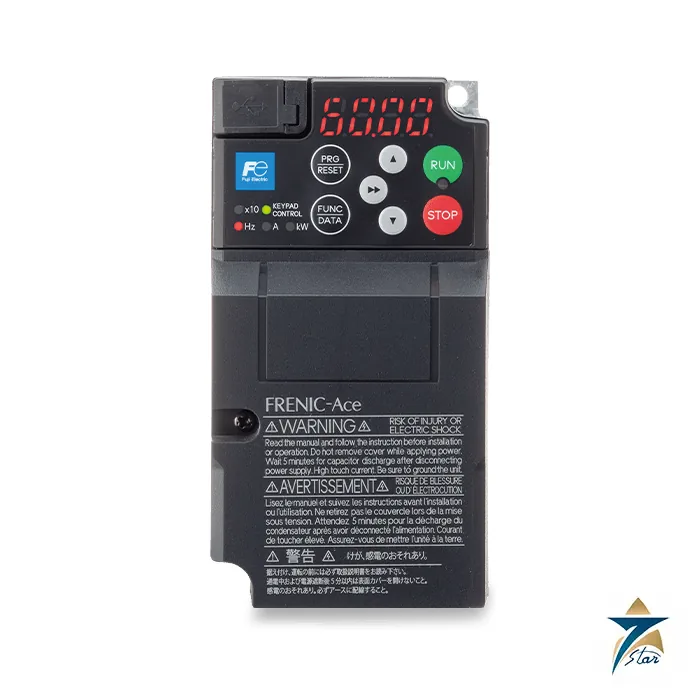

Fuji Electric FRN0029E3S-4G FRENIC-Ace E3 400 V Inverter
Description
The Fuji Electric FRN0029E3S-4G is a 400 V three-phase FRENIC-Ace E3 inverter in the standard (S) basic type. It is rated 7.5 kW in the heavy-duty (HHD) mode and 11 kW in the normal-duty (HND) mode, and is aimed at conveyors, mixers, machine tools, fans and pumps that need more control accuracy than a simple scalar drive.
Vector control in a cabinet-friendly size
FRENIC-Ace E3 succeeds the E2 generation and keeps the same compact style, with side-by-side mounting to save panel width. The datasheet lists nine control methods, including V/f, dynamic torque vector, slip-compensated V/f, speed-sensor vector control (with a PG option card), sensorless vector control for induction motors and sensorless or sensor-based vector control for permanent-magnet motors. Fuji states a maximum output frequency of 599 Hz, a rotor orientation function for positioning duties and a built-in PLC function for customised sequences.
Four duty ratings share one hardware size: HHD (150 % for 1 minute, 200 % for 0.5 s), HND and ND (120 % for 1 minute) and HD (150 % for 1 minute). The ordering code FRN 0029 E 3 S – 4 G decodes as series FRN, size 0029 (rating code), E for industrial high-performance, development code 3, S for the standard basic type, 4 for the three-phase 400 V class and G for the global English model.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | FRN0029E3S-4G (FRENIC-Ace E3, standard basic type, global model) |
| Motor rating | HHD 7.5 kW (10 HP); HND and HD 11 kW (15 HP); ND 15 kW (20 HP) |
| Rated capacity at 440 V | HHD 14 kVA; HND 18 kVA; HD 18 kVA; ND 22 kVA |
| Rated output current | HHD 18 A; HND 23 A; HD 23 A; ND 28.5 A |
| Output voltage | Three-phase 400 to 480 V with AVR function |
| Input supply | Three-phase 380 to 480 V, 50/60 Hz; voltage +10 to -15 %, frequency +5 to -5 % |
| Input current with DC reactor | HHD 14.4 A; HND 21.1 A (without reactor: 23.2 A and 33 A) |
| Overload | HHD 150 % 1 min and 200 % 0.5 s; HND and ND 120 % 1 min; HD 150 % 1 min |
| Braking | Built-in braking transistor; resistor optional; DC reactor optional |
| Ambient temperature | -10 to +55 °C for HHD/HND (derate above 50 °C); -10 to +50 °C for HD/ND |
| Altitude | 1,000 m without derating; current derating up to 3,000 m |
| Protection | IP20 enclosed type, UL open type |
| Cooling | Natural or fan cooling depending on size (see datasheet) |
| Weight | 3.8 kg (8.4 lb) |
| Humidity | 5 to 95 % RH without condensation |
400 V series sizes
The same datasheet covers these basic-type 400 V sizes. Rated currents are for the HHD and HND duty modes.
| Type | HHD motor (kW) | HHD current (A) | HND motor (kW) | HND current (A) | Weight (kg) |
|---|---|---|---|---|---|
| FRN0002E3S-4G | 0.4 | 1.5 | 0.75 | 1.8 | 1.1 |
| FRN0004E3S-4G | 0.75 | 2.5 | 1.1 | 3.4 | 1.4 |
| FRN0006E3S-4G | 1.5 | 4.2 | 2.2 | 5 | 1.4 |
| FRN0007E3S-4G | 2.2 | 5.5 | 3 | 6.3 | 1.4 |
| FRN0012E3S-4G | 3.7 | 9.2 | 5.5 | 11.1 | 1.7 |
| FRN0022E3S-4G | 5.5 | 14.8 | 7.5 | 17.5 | 3.8 |
| FRN0029E3S-4G | 7.5 | 18 | 11 | 23 | 3.8 |
| FRN0037E3S-4G | 11 | 24 | 15 | 35 | 5.2 |
| FRN0044E3S-4G | 15 | 31 | 18.5 | 41 | 5.4 |
| FRN0059E3S-4G | 18.5 | 39 | 22 | 45 | 11 |
| FRN0072E3S-4G | 22 | 45 | 30 | 60 | 11 |
Selecting and ordering
Pick the duty mode that matches the load: HHD for constant-torque loads such as conveyors and crushers, HND or ND for fans and pumps with a quadratic torque curve. Compare the rated output current, not kW alone, with the motor nameplate. The S type is the basic version; E3N adds built-in Ethernet and E3T is a finless type for panels with their own heat sinking, so state the version when ordering. Fieldbus cards (PROFIBUS-DP, DeviceNet, CANopen, CC-Link, multiprotocol Ethernet), digital and analog I/O cards, braking resistors and DC reactors are separate options. Browse more AC drives or compare with the Yaskawa GA700 AC drive.
Documents and quotation
The attached datasheet is Fuji Electric’s product specification (drawing no. Si27-7122) for the FRENIC-Ace E3 global model. Send the motor data, supply voltage, duty and network requirement and we will quote the matching type code and options.
Datasheets & Documents
- Datasheet Fuji Electric FRENIC-Ace E3 product specifications (Si27-7122) Download
Reviews (0)
About brand
Fuji Electric, founded in 1923 and headquartered in Tokyo, Japan, is a maker of power and industrial electrical equipment, and its process instruments are common in control panels: controllers, pressure transmitters, flow meters and gas analyzers. Seven Star LLC, an independent supplier in Oman, lists a Fuji Electric controller with the order code PDA312C1-BCYCD-10 and sources Fuji Electric instruments by order code.
Fuji Electric instruments for process control
The current instrumentation program of Fuji Electric France covers PID temperature controllers of the PXF series, SCR power controllers, pressure transmitters including the FCX-AIV series, ultrasonic and electromagnetic flow meters, temperature probes and transmitters, and gas analyzers. Order codes that start with PDA3, like the listed one, appear in distributor part lists under the Fuji Electric CC-M, a panel-mounted process controller built with one, two or four control loops. Furnaces, dryers and utility skids in the GCC are typical places to find such controllers.
Ordering Fuji Electric controllers: what we need
Fuji order codes are position coded. On the CC-M the characters cover the number of loops, the input signal, the power supply, and the communication and programming options. Send the complete code from the label, such as PDA312C1-BCYCD-10, together with the serial number. If the code can no longer be ordered, tell us the input signals, outputs, supply voltage and panel cutout so that the manufacturer's current equivalent can be requested.
Browse Fuji Electric products by category: Controllers & Data Acquisition.
Related products
Frequently Asked Questions
What does the ordering code FRN0029E3S-4G mean?
FRN is the FRENIC series, 0029 the rating code (7.5 kW HHD or 11 kW HND), E the industrial high-performance line, 3 the development code, S the standard basic type, 4 the 400 V three-phase class and G the global English model.
Which duty modes does the E3 offer?
HHD (150 % for 1 minute, 200 % for 0.5 s), HND and ND (120 % for 1 minute) and HD (150 % for 1 minute), each with its own motor rating on the same hardware.
Which motor types can it control?
The datasheet lists V/f, dynamic torque vector and vector control for induction motors, and vector control for permanent-magnet motors, with or without a speed sensor depending on the method.
What enclosure rating does the S type have?
IP20 enclosed type, UL open type. Mount it inside a cabinet or enclosure suited to the site.
Does it have a braking transistor?
Yes, a braking transistor is built in. The braking resistor and the DC reactor are optional.
