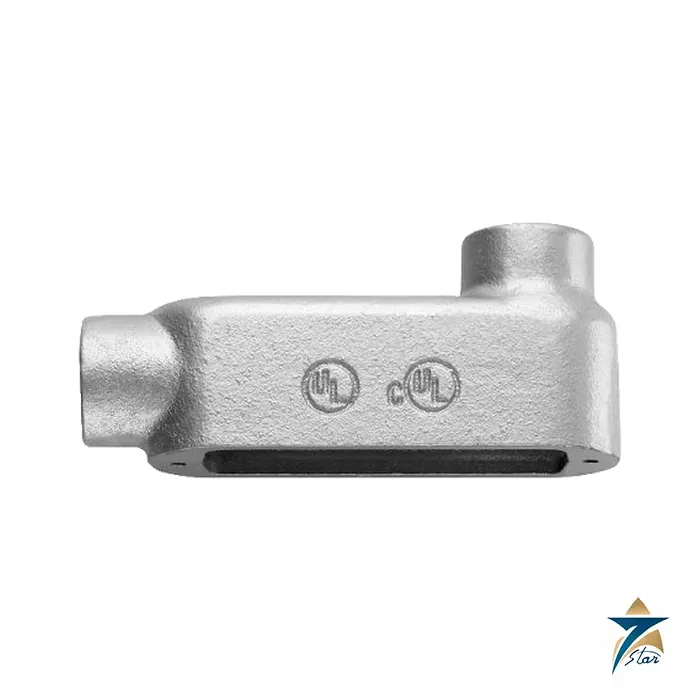

Cooper Crouse-Hinds LB25 Condulet Form 5 Conduit Outlet Body

Name: Cooper Crouse-Hinds LB25 Conduit Outlet Body – Datasheet
Brand: Cooper Crouse-Hinds

Description

Overview

The Cooper Crouse-Hinds LB25 is a Condulet Form 5 conduit outlet body engineered for rigid, intermediate metal conduit (IMC), and EMT raceway systems that require a reliable pull point, splice access, or direction change without disturbing conductor insulation. Sized for 3/4-inch trade conduit with a 7.3 cubic-inch internal capacity, the LB25 is a Type LB body – meaning the hub outlet exits from the back of the fitting, making it the standard choice wherever a conduit run must turn a corner tight against a wall, panel, or structural member while still leaving room to pull heavy-gauge conductors through cleanly.

Backed by manufacturer datasheet documentation, Seven Star LLC proudly supplies the LB25 Condulet Form 5 conduit outlet body to contractors, EPC firms, and plant maintenance teams across the Sultanate of Oman and the wider GCC.Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation.

Operating Principle

A conduit outlet body such as the LB25 is a passive mechanical enclosure rather than active device, but its geometry still governs how conductors are protected and how the raceway system behaves electrically and mechanically. The two threaded hub openings carry NPT tapered threads with integral bushings that shield wire insulation from abrasion as conductors are pulled through the casting, while the interior radius of the LB body is sized to respect the minimum bend radius required by code for the conductor sizes the fitting is rated to carry. Because the body is a sealed, code-compliant enclosure once its gasketed cover is installed, it also functions as a legal splice and tap point – conductors can be joined, tapped, or simply pulled straight through without the raceway losing its mechanical continuity or its protection against dust and moisture ingress.

The practical consequence of this design is a maintenance-friendly access point that requires no special tools beyond a standard screwdriver to open, inspect, or re-pull conductors, and that introduces no moving parts to wear out over the life of the installation. Because the LB25 is rated NEMA 4, the gasketed cover also maintains a degree of protection against windblown dust and splashing water, which is a meaningful advantage on outdoor conduit runs across coastal and desert sites in Oman where sand ingress and occasional heavy rain both threaten unprotected junctions.

Engineering Design of the Cooper Crouse-Hinds LB25

The LB25 body is die cast from copper-free aluminum, a material chosen specifically for conduit systems because it eliminates the risk of galvanic corrosion that copper-bearing alloys can trigger when conduit runs pass near dissimilar metals or in humid, saline environments – a common condition along Oman’s coastal industrial corridors including Sohar and Salalah. The casting is then finished with an epoxy powder coat that adds a further corrosion-resistant barrier over the aluminum substrate while giving the fitting a durable gray finish that resists chipping during transport and installation.

Physically, the LB25 measures 4.97 inches in length, 1.53 inches in width, and 2.38 inches in height, with two 3/4-inch hub openings positioned for the classic LB back-outlet configuration. The body ships complete with hubs and tri-head set screws for securing conduit runs, and the flat gasket-sealing surface on the open face accepts the corresponding Crouse-Hinds Form 5 cover plate to close the enclosure once conductors are pulled and terminated. The fitting is listed to UL File No. E-15022 and cUL certified, and it is manufactured to meet NEC/CEC installation requirements as well as the Buy American Act and RoHS compliance standards that many Gulf-region EPC specifications now reference for imported electrical materials.

Key Features

The Cooper Crouse-Hinds LB25 combines a compact footprint with genuine field-proven durability, and the following features summarize why it remains a specified standard on industrial and commercial conduit systems throughout Oman and the GCC.

Die-cast copper-free aluminum body construction resists galvanic corrosion and keeps installed weight low on long conduit runs.
Epoxy powder coat finish provides an additional corrosion-resistant layer suited to coastal, industrial, and high-humidity environments.
3/4-inch trade size hubs with 7.3 cubic-inch internal capacity accommodate standard rigid, IMC, and EMT conduit systems.
Type LB back-outlet configuration allows tight 90-degree direction changes against walls, panels, and structural steel.
Tapered NPT threads with integral bushings on both hubs protect conductor insulation during installation and future re-pulls.
NEMA 4 rated gasketed cover interface (Form 5 cover, ordered separately) resists dust and water ingress on outdoor and washdown-adjacent runs.
Ships complete with hubs and tri-head set screws, reducing field assembly time and material take-off complexity.
UL Listed and cUL certified to UL File No. E-15022, satisfying NEC/CEC code requirements referenced across regional EPC specifications.

Industrial Applications

The LB25 is specified wherever a 3/4-inch rigid or IMC conduit run needs to change direction, provide a pull point, or create a legal splice location without exceeding the conductor fill and bend-radius limits set by code. Typical placements include motor control wiring in pump houses, lighting and small power circuits in process areas, instrumentation conduit runs feeding field transmitters, and panel-to-panel conduit routing in electrical rooms where space behind switchgear is limited and a compact back-outlet body is the only geometry that fits.

Working closely with plant engineers in the region, Seven Star LLC distributes the LB25 Condulet Form 5 conduit outlet body to EPC contractors and maintenance departments across oil and gas facilities, RO desalination plants, district cooling stations, and commercial developments throughout Muscat, Sohar, and Salalah, as well as the broader GCC. We supply LB25 fittings on request with manufacturer documentation, so that specifiers and site engineers have a dependable source on projects where UL listing and manufacturer traceability are mandatory contract requirements, with lead time confirmed at quotation.

Technical Specifications

The table below summarizes the key specifications of the Cooper Crouse-Hinds LB25 Condulet Form 5 conduit outlet body for procurement and design reference.

Parameter	Specification
Model	LB25
Series	Condulet Form 5
Type	Type LB, Form 5
Trade Size	3/4 in
Number of Hubs	2
Internal Capacity	7.3 cu-in
Material	Die-cast copper-free aluminum
Finish	Epoxy powder coat, gray
Connection Type	Threaded, tapered NPT hubs with integral bushings
Enclosure Rating	NEMA 4 (with gasketed cover)
Dimensions	4.97 in L x 1.53 in W x 2.38 in H
Included Hardware	Hubs, tri-head set screws
Approvals	UL File No. E-15022, cUL Listed, NEC/CEC certified, RoHS compliant
Conduit Compatibility	Rigid, IMC, EMT

Request a Quote for Cooper Crouse-Hinds LB25 Condulet Form 5 Conduit Outlet Body

Seven Star LLC supplies the Cooper Crouse-Hinds LB25 Condulet Form 5 conduit outlet body on request to project sites across Oman and the GCC, with lead time confirmed at quotation. Contact our instrumentation and electrical fittings division for a formal RFQ, technical datasheet, or bulk project pricing – as an experienced supplier of Cooper Crouse-Hinds products in Oman and the GCC, we provide manufacturer documentation and local technical support on every order.

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Crouse-Hinds is the American brand of explosion-proof and hazardous-area electrical equipment: Condulet conduit bodies, explosion-proof enclosures, control stations, plugs and receptacles, lighting and cable glands. Huntington B. Crouse and Jesse L. Hinds founded the company in Syracuse, New York, on 18 January 1897; its first product was a changeable headlight for trolley cars. Crouse-Hinds became part of Cooper Industries in 1981 and has been an Eaton brand since Eaton acquired Cooper in 2012.

Seven Star LLC sources and supplies Cooper Crouse-Hinds conduit fittings, sealing fittings, junction boxes, pushbutton stations and receptacles for plants in Oman, checking each catalog number against the manufacturer's documentation. Current production is sold as Eaton's Crouse-Hinds series, so either name may appear on the part you are replacing.

Cooper Crouse-Hinds company profile

Founded	18 January 1897, Syracuse, New York, USA
Founders	Huntington Beard Crouse and Jesse Lorenzo Hinds
First product	A changeable headlight for trolley cars
Ownership	Cooper Industries from 1981; Eaton since 2012 (Eaton's Crouse-Hinds series)
Product families	Condulet conduit outlet bodies and fittings, EFS and N2S control stations, GUB and EJB explosion-proof boxes, flexible couplings, plugs and receptacles, hazardous-area lighting, cable glands

Milestones

1897: Crouse and Hinds sign their partnership in Syracuse on 18 January.
1920s: The company moves into traffic signals and installs Syracuse's first traffic light in 1924.
1981: Crouse-Hinds becomes part of Cooper Industries.
2012: Eaton acquires Cooper Industries and keeps the Crouse-Hinds brand.

Cooper Crouse-Hinds product families listed here

The catalog numbers on this page follow the manufacturer's own series names:

Condulet conduit outlet bodies, such as the Form 8 C28 and the Form 5 LB25
EYS conduit sealing fittings (EYS3, EYS5) and ECGJH flexible couplings
GUB and GUE explosionproof junction boxes, and the box listed as GUP315
EDS and EFS explosionproof control stations and N2S non-metallic, factory-sealed stations
Arktite receptacles, for example the 30 A AR342

Where Crouse-Hinds explosionproof equipment is used

Most of these parts belong to rigid conduit systems in classified areas: refinery units, gas compression and metering stations, tank farms, loading racks, paint and solvent handling, and offshore modules across the GCC. The listed series are built around the North American Class and Division system, but the rating differs by item: N2S stations are marked for Class I, Division 2, and the AR342 receptacle is a watertight type for ordinary locations. A Cooper Crouse-Hinds junction box or control station should therefore be selected against the area classification drawing, not by enclosure size alone.

Cooper Crouse-Hinds products we list

Family	Examples
Automation Accessories	EDS225 EDS Pushbutton Control Station, EFSC215 EFS Explosionproof Pushbutton Control, EJB Series Explosionproof Custom-Built, GUB01 SA Explosionproof Junction Box, GUE Series Explosionproof Junction Box, GUP315 Explosionproof Junction Box, N2PS1111 N2S Non-Metallic Factory-Sealed, N2S2210 N2S Non-Metallic Factory-Sealed
Pipes & Fittings	C28 Condulet Form 8 Conduit Outlet, ECGJH24 GJH Flexible Coupling, EYS1/EZS1 ATEX Conduit Sealing Fittings, EYS3 EYS Conduit Sealing Fitting, EYS5 EYS Conduit Sealing Fitting, LB25 Condulet Form 5 Conduit Outlet Body
Electrical Tapes & Cable Accessories	AR342 Arktite Receptacle 30A 3-Wire 4-Pole

Ordering Cooper Crouse-Hinds parts: what we need

Send the full catalog number from the nameplate or the casting, including every suffix. For conduit bodies and seals, add the hub size and thread, and state the material, iron alloy or copper-free aluminum. For control stations, list the operators, contact blocks and legend plates. For receptacles, give the amperage, the number of wires and poles, and the mating plug. A nameplate photo and the area classification let us confirm the match before quoting.

Facts checked against published histories of the Crouse-Hinds Company and Eaton, October 2026.

Browse Cooper Crouse-Hinds products by category: Automation Accessories, Pipes & Fittings, Electrical & Power Modules.

FAQ

Questions about the Cooper Crouse-Hinds LB25 Condulet Form 5 Conduit

Answers from our engineering team on installation, compatibility and integration.

01What is the Cooper Crouse-Hinds LB25 used for?

The LB25 is a 3/4-inch Type LB conduit outlet body used to change direction in a rigid, IMC, or EMT conduit run while providing a legal pull point and splice access without violating conductor bend-radius or fill requirements.

02Does the LB25 reduce installation time on site?

Yes. The LB25 ships complete with hubs and tri-head set screws, and its die-cast body requires no field fabrication, which shortens conduit routing time compared to fabricated bends or elbows, especially in tight panel and structural spaces.

03What conduit sizes and materials is the LB25 compatible with?

The LB25 is sized for 3/4-inch trade conduit and is compatible with rigid metal conduit, intermediate metal conduit (IMC), and EMT, using tapered NPT threaded hubs with integral insulation-protecting bushings.

04Can the LB25 be used with existing Crouse-Hinds conduit body covers?

Yes. The LB25 accepts the corresponding Crouse-Hinds Form 5 cover plate, allowing it to integrate directly into existing Condulet Form 5 conduit systems and legacy installations already using Form 5 components.

05Is Seven Star LLC an experienced supply partner for Cooper Crouse-Hinds products?

Yes. Seven Star LLC supplies Cooper Crouse-Hinds products to customers in Oman and the GCC and can provide the manufacturer documentation and technical support on request.
