Schneider Electric Multi 9 DT40 Vigi RCBO

Overview

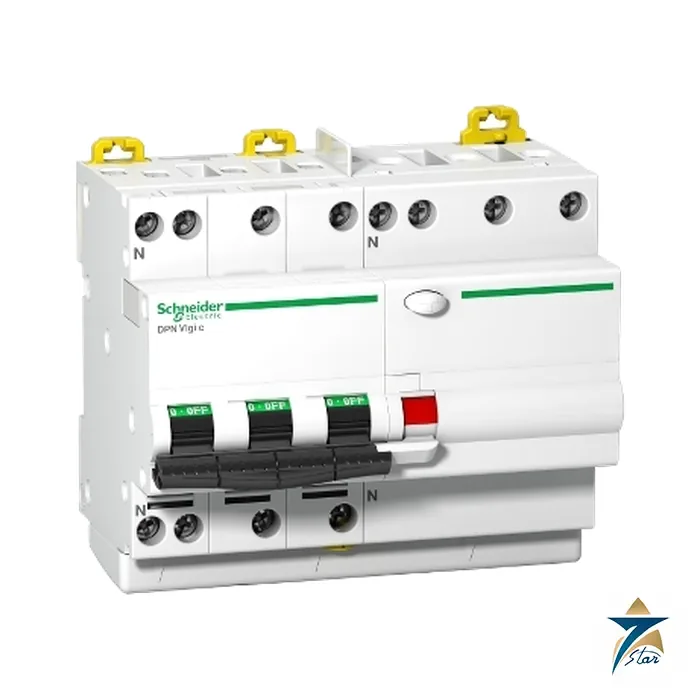

Schneider Electric Multi 9 DT40 Vigi is a combined residual current breaker with overcurrent protection (RCBO) that merges standard MCB short-circuit and overload protection with sensitive earth-leakage detection in a single compact modular device. Rather than pairing a separate MCB with a standalone residual current device, the DT40 Vigi integrates both functions into one DIN-rail unit, simplifying panel design, reducing wiring complexity, and freeing valuable space in distribution boards where every module width counts.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Schneider Electric Multi 9 DT40 Vigi to electrical contractors, panel builders, and facility engineers across Oman and the GCC. Supplied on request by Seven Star LLC, the DT40 Vigi is specified throughout Muscat, Sohar, and Salalah for final circuits in residential, commercial, and light industrial installations where combined overcurrent and earth-fault protection is required by design codes or by prudent engineering practice.

Operating Principle of the Schneider Electric Multi 9 DT40 Vigi

The Schneider Electric Multi 9 DT40 Vigi combines two independent protection mechanisms in one housing. The MCB section uses a conventional thermal-magnetic trip: a bimetallic strip provides delayed tripping on sustained overload current, while a magnetic solenoid trips instantly on short-circuit-level fault current, consistent with standard IEC/EN 60898-1 or 61009-1 behaviour. The Vigi residual-current section continuously monitors the vector sum of current flowing through the live and neutral conductors using a toroidal current transformer; under normal, healthy conditions this sum is zero, but any leakage current to earth – from insulation breakdown, moisture ingress, or a person contacting a live part – creates an imbalance that the sensing coil detects.

Once the residual current exceeds the rated sensitivity threshold, typically 30mA for personnel protection against electric shock or 300mA for fire protection against earth-fault heating, the Vigi module trips the mechanism independently of the overcurrent protection, opening the circuit within the standard’s specified time. Because both protection functions are housed together and share a single trip mechanism, the DT40 Vigi delivers coordinated, dependable disconnection whether the fault is a classic overload, a short circuit, or a dangerous earth leakage – three failure modes covered by one device instead of two separate components that must be correctly wired and coordinated.

Engineering Design of the Schneider Electric Multi 9 DT40 Vigi

The Schneider Electric Multi 9 DT40 Vigi is housed in a slim modular enclosure sized for standard 35mm DIN-rail mounting, with 1P+N and 3P+N configurations covering the majority of final-circuit and small sub-distribution applications. The moulded case is manufactured from self-extinguishing, impact-resistant thermoplastic, and the toggle handle provides trip-free operation with distinct indication for overcurrent trips versus residual-current trips, helping maintenance personnel quickly diagnose the cause of an outage without specialized test equipment.

A dedicated test button is built into the front face, allowing routine functional testing of the residual-current sensing circuit as recommended by electrical safety codes, without needing to de-energize the full circuit for a separate test procedure. Terminal connections are shrouded to IP20 finger-safe standards, and the DT40 Vigi is compatible with the broader Acti9 accessory ecosystem, including auxiliary and alarm contacts, for installations that require remote fault indication back to a building management or SCADA system.

Key Features

The Schneider Electric Multi 9 DT40 Vigi delivers integrated protection for engineers specifying combined MCB and earth-leakage circuits:

• Combines MCB overcurrent protection with Vigi residual-current earth-leakage detection in a single DIN-rail module.
• Available with 30mA sensitivity for personnel protection or 300mA sensitivity for fire and equipment protection.
• Thermal-magnetic trip unit provides both time-delayed overload and instantaneous short-circuit protection.
• Toroidal current transformer sensing detects earth-leakage current independent of the overcurrent trip mechanism.
• 1P+N and 3P+N pole configurations cover the majority of final-circuit and small sub-distribution applications.
• Front-mounted test button enables routine functional testing of the residual-current sensing circuit.
• Trip-free toggle mechanism with distinct indication for overcurrent versus residual-current trip causes.
• Compatible with the Acti9 auxiliary and alarm contact accessory ecosystem for remote fault indication.

Industrial Applications

The Schneider Electric Multi 9 DT40 Vigi is widely specified for final circuits across residential towers, commercial buildings, and light industrial facilities throughout the Sultanate of Oman, where combined overcurrent and earth-leakage protection is required for socket outlets, lighting circuits, and small power distribution in a single compact device. In Muscat’s residential and commercial developments, the DT40 Vigi protects bathroom, kitchen, and outdoor circuits where moisture-related earth-leakage risk is elevated, while in light industrial workshops across Oman it protects portable equipment and hand-tool circuits against both overload and shock hazard.

With fast quotation turnaround and technical support, Seven Star LLC distributes the Schneider Electric Multi 9 DT40 Vigi to contractors and consulting engineers on projects throughout the Sohar and Salalah economic zones, where compliance with earth-fault protection requirements in labour accommodation, warehousing, and light manufacturing facilities is increasingly mandated by regional electrical codes. The combined device’s space-saving design is particularly valued in retrofit projects across the GCC where panel space is limited and a separate RCD cannot easily be accommodated.

Technical Specifications

Key technical parameters for the Schneider Electric Multi 9 DT40 Vigi are summarized below.

Also available: Schneider Electric Minexa Dry-Type Transformer

Request a Quote for Schneider Electric Multi 9 DT40 Vigi RCBO

Electrical contractors and facility engineers across Oman and the GCC can request a formal RFQ for the Schneider Electric Multi 9 DT40 Vigi through Seven Star LLC, with availability and lead time confirmed at quotation for projects across Muscat, Sohar, and Salalah. Technical datasheets and wiring guidance are available on request from our instrumentation and low-voltage products division. With engineering support in Muscat, Seven Star LLC provides manufacturer documentation and dedicated technical support for every Schneider Electric Multi 9 DT40 Vigi order.
