Mean Well XDR-75E-12 DIN Rail Power Supply

Name: Mean Well XDR-75E-12 DIN Rail Power Supply – Datasheet
Brand: Mean Well
SKU: XDR-75E-12

A 30 mm wide 12 V supply that works down to -40 C

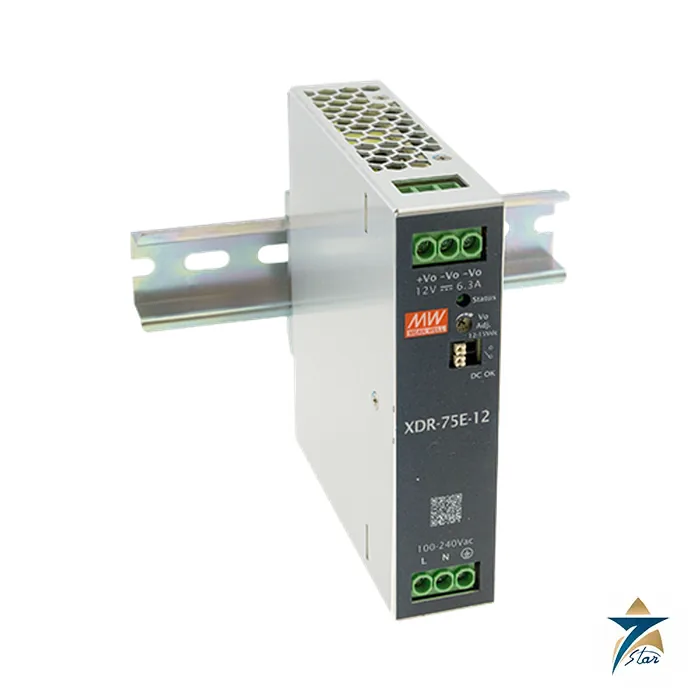

The Mean Well XDR-75E-12 is an economical ultra-slim DIN rail power supply with a 12 V DC output at 6.3 A (75.6 W). The XDR-75E series is only 30 mm wide, accepts 85 to 264 Vac, and is specified from -40 to +70 C, which makes it a candidate for outdoor cabinets and unheated enclosures where a plastic-cased supply would struggle.

The datasheet quotes up to 91% efficiency across the series (89% typical at 12 V), no-load power consumption below 1 W, a built-in constant current limit, a DC OK relay contact and over-voltage category III compliance. The housing is fanless, the series can be used up to 5000 m altitude with derating, and Mean Well gives a three-year warranty.

Technical specifications

Parameter	Specification
Manufacturer / series	Mean Well, XDR-75E
Model	XDR-75E-12
DC output	12 V DC / 6.3 A
Power rating	75.6 W
Trim range	12 to 15 V
Ripple (max.)	100 mVp-p
Setpoint tolerance	+/-2.0%
Regulation (line / load)	+/-0.5% / +/-1.0%
Mains input	85 to 264 Vac; 120 to 370 Vdc
No-load power consumption (typ.)	0.5 W at 115 Vac; 0.7 W at 230 Vac
Typical efficiency	89%
Input current (typ.)	1.4 A at 115 Vac; 0.8 A at 230 Vac
Inrush (typ.)	Cold start 18 A at 115 Vac; 35 A at 230 Vac
Hold-up (typ.)	16 ms at 230 Vac; 10 ms at 115 Vac
Overload behaviour	105 to 130%, constant current limiting, automatic recovery
Overvoltage limit	15 to 18 V, shut down; re-power to recover
DC OK relay contact	30 Vdc/1 A, 30 Vac/0.5 A resistive (max.)
Ambient operating range	-40 to +70 C, with derating curve
Dielectric strength	Input-output 4 kVac; input-FG 2 kVac; output-FG 1.5 kVac
Size (W x H x D)	30 x 125.2 x 116 mm
Mass	465 g

Space and temperature are the selling points

A 30 mm wide supply gains rail space in a cabinet with many terminals and relays, and 75 W is enough for a PLC with I/O, a router and a few sensors on 12 V. The wide temperature specification, down to -40 C, is the other reason to consider it. Plan for derating at high ambient temperature and at altitude above 2000 m according to the curve in the datasheet.

Standards and certification points

The datasheet lists CB certificates to IEC 62368-1, IEC 61558-1/-2-16 and IEC 61010-1/-2-201, with UL/cUL 61010-1 and EAC approval. Check the revision date on the datasheet when your project needs a specific approval, because the datasheet marks the KC and BIS certificates as available by request only. The unit includes SELV isolation of 4 kVac between input and output, which the datasheet lists as the withstand voltage. In unheated enclosures check the lowest expected temperature against the datasheet range and avoid condensation on the terminals.

Documents and quotation

Use the attached XDR-75E datasheet to check the mounting drawing, derating curve and terminal data before ordering. When requesting a price for XDR-75E-12, include how many units you need, the incoming supply, the continuous and peak load, the temperature around the unit and certifications you must meet. See also Power Modules.

Mean Well power supply families

The catalogue covers DIN rail power supplies from 15 W to several hundred watts in single-phase and three-phase versions, enclosed chassis supplies with fan or convection cooling, medical-standard supplies, DIN rail DC-DC converters and many other formats. Each series has a datasheet that lists all output voltages, derating curves and approvals. The standard catalogue format suits machine builders, panel builders and maintenance teams that need a documented, replaceable supply rather than a custom design.
