Spelsberg TG ABS 2012-9-o ABS Enclosure

Name: Spelsberg TG ABS 2012-9-o ABS Enclosure – Datasheet & Quote
Brand: Spelsberg
SKU: TG ABS 2012-9-o

A compact ABS enclosure with IP66/IP67 sealing

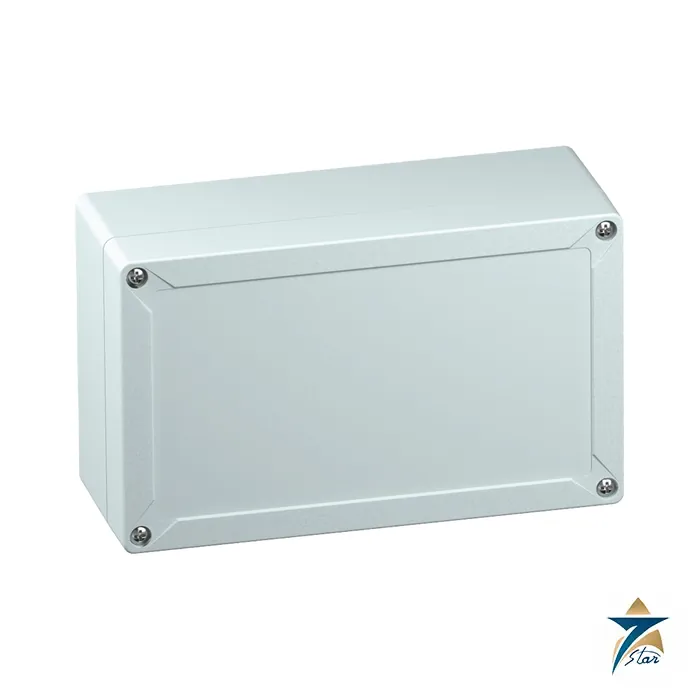

The Spelsberg TG ABS 2012-9-o is an empty grey ABS enclosure, 202 x 122 x 90 mm, with a quick-release cover and internal fixing points. Spelsberg lists it for standard installations indoors, which makes it a sensible housing for small terminal blocks, sensors, pushbuttons and compact control electronics where water spray and dust are the concern but sunlight is not.

Technical specifications

Parameter	Specification
Product number	10090801
Dimensions W x L x H	202 x 122 x 90 mm
Weight	0.3952 kg
Material	ABS base and cover, polyurethane seal, stainless steel 1.4303 cover screws
Protection type	IP66/IP67
Protection class	II
Rated insulation voltage	690 V AC / 1000 V DC
Impact strength	IK07
Flammability	UL94 HB; glow-wire 650 degC (EN 60695-2-11)
UV resistance / halogen free	Not UV-resistant / halogen free
Ambient temperature	-25 to +40 degC (24 h average 35 degC)
Installation location	Indoors; wall or ceiling mounting
Supplied with	Cover retainer and 4 fastening screws for accessories
EAN / ETIM class	4013902814015 / EC000261
Maximum relative humidity	95 % at 25 degC; 50 % at 40 degC
Customs tariff number	85389099
Colour and features	Grey base and cover; smooth sidewalls; stackable; internal fixing points
Related product	The data sheet cross-refers to product number 20090801 under "To industrial product"

Selection and installation

Because the ABS is listed as not UV-resistant and the temperature range tops out at 40 degC, this is an indoor enclosure; for sun-exposed or hot sites compare a UV-resistant polycarbonate type such as the Spelsberg TK PC in this range. Drill or fit cable glands only where the sealing is kept, and select glands whose IP rating matches the enclosure. Fastening is through the internal fixing points, so the wall holes sit under the cover seal.

Listed accessories

The data sheet lists these accessories for the TG ABS 2012-9-o: mast or pipe fixing set MABF 100-2 (89602101), external fixing lugs kit TG ABL (18200201), interior hinge set TG ISS (18200101), sealing kit TG PST2 (18200501), cover retainer TG DVS-57 (18200701), mounting plates TG MPI-2012 (18600801) and TG MPS-2012 (18700801), standard rails TS 15-184 (19718601) and NS 35-184 (19818601), stepped drill LFR (19599501) and pressure balance element DAE M12 (26241201). The enclosure itself is supplied with a cover retainer and four fastening screws for accessories. The sheet marks the enclosure as customizable.

Relative humidity is rated up to 95 % at 25 degC but only 50 % at 40 degC.

For a metallic option with wider accessories see the Rittal AX 9206.100, and the automation accessories category lists other enclosures.

Documents and quotation

The Spelsberg data sheet for product number 10090801 is attached and is the source of the figures above; the sheet itself states that its statements are without guarantee, so confirm any critical value with the current Spelsberg listing. Send the product number, the cable entries needed and the quantity through the quotation form for availability from Seven Star LLC.
