Brand: Spelsberg

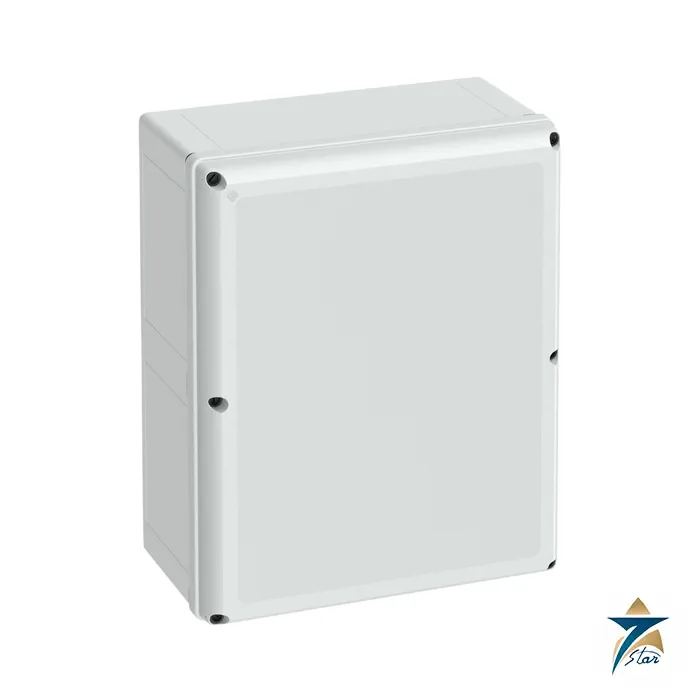

Spelsberg GEOS-L 4050-22-o Enclosure, IP66/IP69
Description
A large polycarbonate enclosure for harsh and exposed sites
The Spelsberg GEOS-L 4050-22-o is an empty grey glass-fibre reinforced polycarbonate enclosure of 400 x 500 x 226 mm with a polycarbonate cover. Spelsberg lists it for harsh environments and exposed outside areas, with IP66/IP67/IP69 sealing, UL type 4X and 12/12K, and UL-EU marks to EN 62208 and the EN 61439 series for assemblies.
Technical specifications
| Parameter | Specification |
|---|---|
| Product number | 70074501 |
| Dimensions W x L x H | 400 x 500 x 226 mm; inner 371 x 471 x 204 mm |
| Weight | 4.034 kg |
| Material | Glass-fibre reinforced polycarbonate base, polycarbonate cover, silicone seal, glass-fibre reinforced polyamide cover screws |
| Protection type | IP66/IP67/IP69, protection class II, not vented |
| Rated insulation voltage | 1000 V AC / 1500 V DC |
| UL type rating | 4X, 12/12K |
| Impact strength | IK09 |
| Flammability | UL94 V2; glow-wire 960 degC; halogen free; UV-resistant |
| Test marks | UL, UL-EU (EN 62208, EN 61439-1/-2, -1/-3, -1 and -7), DLG ammonia, DNV |
| Ambient temperature | -35 to +80 degC (24 h average 60 degC) |
| Features | Sealable, stackable, fastening points in the cover |
| Mounting | Wall or ceiling |
| EAN / ETIM class | 4013902610853 / EC000261 |
| Colour | Grey, base similar to RAL 7035; grey cover |
| Installation location | Unprotected outdoor areas |
| Maximum relative humidity | 95 % at 25 degC; 50 % at 40 degC |
| Customs tariff number | 85389099 |
Selection and installation
The data sheet lists unprotected outdoor areas as the installation location for this large enclosure. Accessories listed on the data sheet include mounting plates, DIN rails of several lengths, carrying frames, shock protection covers, partition walls, quick-closing and cover screw sets. Plan the heat load before closing a sealed polycarbonate enclosure in strong sun, since the data sheet gives the 24-hour ambient limit of 60 degC.
Accessory range
The data sheet lists a wide accessory range for the GEOS-L 4050-22-o. Mounting: plates GEOS MPI-4050, GEOS MPS-4050, GEOS-L EP-4050 and EPD-4050, carrying frames TGS 4050-2 and 4050-3 (also in NS35/15 versions), and NS35 standard rails from NS35-250 to NS35-450. Internal layout: shock protection covers GEOS-L BSA 4050-2 and 4050-3, and partition walls GEOS-L TW 40-22 and TW 50-22. Fixing: external fixing lugs ABL-10 and ABL-40, mast clamp sets MSS-40 and MSS-50, and screw clamp sets SRS 60-90, 90-150 and 150-210. Closing: quick-closing 4050 SV, cover screw sets DS and DS/DK, and cover retainer DVS.
For entries the sheet lists cable glands KVR M12 to M63, double-membrane seals DMS M16 to M40, hole cutters LFR M40, M50 and M63, and BEL Air ventilation elements. The enclosure itself is listed as not vented.
See also the Rittal AX 9206.100 and the automation accessories category.
Documents and quotation
The Spelsberg data sheet for product number 70074501 is attached and is the source of the figures above; the sheet itself states that its statements are without guarantee, so confirm any critical value with the current Spelsberg listing. Send the product number, the cable entries needed and the quantity through the quotation form for availability from Seven Star LLC.
Datasheets & Documents
- Datasheet Spelsberg GEOS-L 4050-22-o data sheet Download
Reviews (0)
About brand
Spelsberg is a German manufacturer of electrical enclosures and junction boxes, founded in 1904 in Schalksmühle, North Rhine-Westphalia, where it is still based. The fourth-generation family company moved from Bakelite enclosures in the 1930s to thermoplastic boxes by the 1950s. Today it has about 500 staff, plants in Schalksmühle and Buttstädt, and more than 5,000 standard products.
Seven Star LLC is an independent supplier in Muscat. We list Spelsberg enclosures and junction boxes for contractors and panel builders in Oman and the GCC.
Spelsberg company profile
| Founded | 1904, Schalksmühle, Germany |
|---|---|
| Ownership | Spelsberg family, fourth generation |
| Plants | Schalksmühle and Buttstädt, Germany |
| Staff | About 500 |
| Product families | Abox junction boxes, TK PC and TK PS polycarbonate and polystyrene enclosures, TG ABS enclosures, WKE fire-rated junction boxes, distribution boards |
Milestones
- 1904: Spelsberg is founded in Schalksmühle.
- 1950s: Spelsberg moves to thermoplastic boxes.
Spelsberg product series
Enclosures include the TG ABS 2012-9-o for IP66/IP67, the TK PS 1811-11-o for IP66, the TK PC 1813-11-m polycarbonate enclosure and the GEOS-L 4050-22-o for IP66/IP69.
Junction boxes include the Abox Pro 350-35 for IP66/IP69 and the WKE Rapid-Box HT fire-rated junction box for circuits that must keep working in a fire.
ABS and polystyrene enclosures suit indoor and sheltered use, polycarbonate offers impact strength and UV resistance, and IP69 versions resist high-pressure cleaning. Fire-rated junction boxes keep fire alarm and emergency lighting circuits working for a set time in a fire.
Cable entries, mounting plates and terminals are chosen with the enclosure to suit the installation.
Where Spelsberg products are used
Outdoor and wash-down installations, control and terminal boxes, building services and fire safety circuits.
Spelsberg products we list
Ordering Spelsberg products: what we need
Send the Spelsberg type, or the size, material, IP rating, cover and mounting plate and cable entry options.
Facts checked against Spelsberg trade fair profiles and industry profiles, October 2026.
Browse Spelsberg products by category: Automation Accessories.
Related products
Frequently Asked Questions
What is the ingress protection?
IP66, IP67 and IP69, with UL types 4X and 12/12K.
What are the internal dimensions?
371 mm wide, 471 mm long and 204 mm deep inside.
Is it UV-resistant?
Yes, the data sheet lists the material as UV-resistant and halogen free.
What accessories are listed?
Mounting plates, DIN rails, carrying frames, shock protection, partition walls and closing or cover screw sets.
What is the maximum ambient temperature?
80 degC, with a 24-hour average of 60 degC.
